Lightweight Velcro Cable Sleeve Wear Resistant Wrap Around Cable Sleeve Halogen Free

Lightweight Velcro Cable Sleeve

Wear Resistant Wrap Around Cable Sleeve

Wrap Around Cable Sleeve Halogen Free

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS 2.0

Chat Now

Request A Quote

Product Details

Name:

Wrap‑Around Hook & Loop Cable Sleeve

Color:

Black

Melting Point:

240±10℃

Operating Temperature:

-40℃ ~ +150℃

Certifications:

RoHS2.0,ISO9001

Highlight:

Lightweight Velcro Cable Sleeve

Wear Resistant Wrap Around Cable Sleeve

Wrap Around Cable Sleeve Halogen Free

Payment & Shipping Terms

Minimum Order Quantity

200M

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5work days

Payment Terms

T/T

Wrap‑Around Hook & Loop Cable Sleeve

Product Introduction

Made of high‑strength polyester multifilament, woven by warp‑weave loom and sewn with hook‑and‑loop tape. It complies with environmental certifications including RoHS, REACH and Halogen‑Free. Featuring soft texture and light weight, this open‑type self‑adhesive sleeve delivers excellent wear resistance, noise reduction and cable harness organizing performance. It is widely applied for safety protection of oil pipe systems, air pipe systems and wire harness systems in construction machinery.

  Product Features

Item	Parameter
Material	Polyester Fiber + Nylon Hook & Loop
Operating Temperature	-40℃ ~ +150℃
Melting Point	240±10℃
Flame Retardant Rating	Complies with UL94 V-2
Color	black
Certifications	RoHS2.0,ISO9001

Product Dimensions

model	Inner Diameter(in)	Width(w)	Pack
XQPVTW-16	Φ16	70±5mm	50 m/roll
XQPVTW-20	Φ20	85±5mm	50 m/roll
XQPVTW-25	Φ25	100±5mm	50 m/roll
XQPVTW-30	Φ30	115±5mm	50 m/roll
XQPVTW-35	Φ35	130±5mm	50 m/roll
XQPVTW-40	Φ40	145±5mm	50 m/roll
XQPVTW-45	Φ45	160±5mm	50 m/roll
XQPVTW-50	Φ50	177±5mm	50 m/roll
XQPVTW-60	Φ60	210±5mm	50 m/roll
XQPVTW-70	Φ70	240±5mm	50 m/roll
XQPVTW-80	Φ80	270±5mm	50 m/roll
XQPVTW-90	Φ90	300±5mm	50 m/roll
XQPVTW-100	Φ100	335±5mm	50 m/roll

Product Advantages

Tool‑Free, Time‑Saving Installation

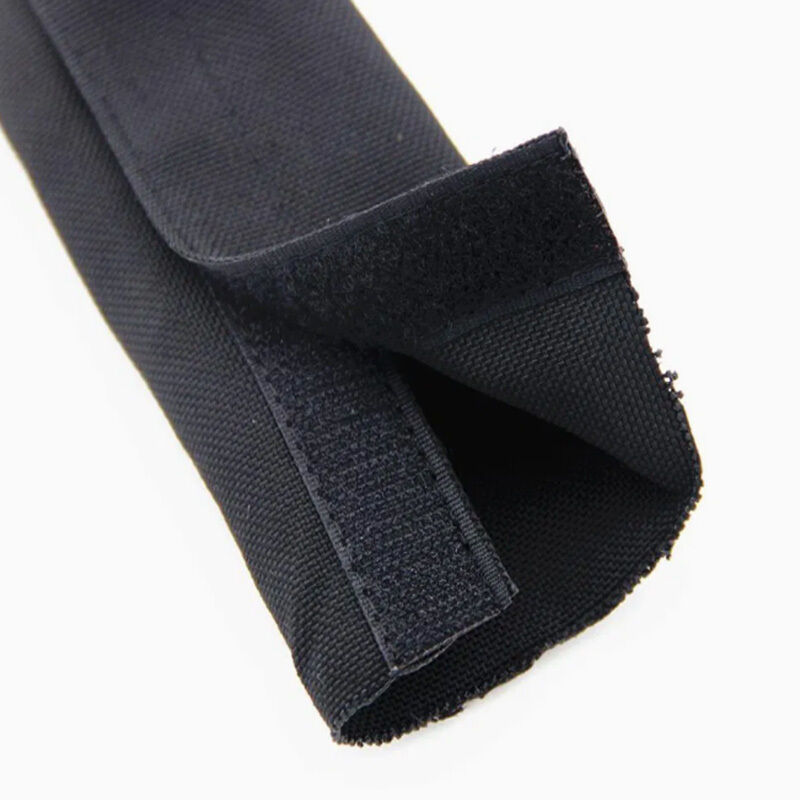

This hook & loop fabric sleeve features a full side‑opening hook‑and‑loop design. Unlike traditional closed braided sleeves, it does not require cutting cables or disconnecting finished harnesses during installation. You can directly wrap the sleeve around pre‑assembled wires, secure with the hook‑loop fastener in seconds.
Outstanding Mechanical Abrasion Resistance
Manufactured from high‑density woven textile fabric, the sleeve offers strong resistance against friction, scraping, rubbing and mechanical impact.
Reusable Structure for Easy Maintenance & Rework
The heavy‑duty hook‑and‑loop fastener maintains stable bonding performance after numerous opening‑closing cycles.
Excellent Flexibility to Adapt to Complex Wiring Routes
Boasting soft, tough textile properties, the sleeve can bend, twist and flex freely. It fits perfectly for curved segments, turning corners and dynamically moving wiring paths.
Effective Cable Organization & Noise Reduction Performance
It neatly bundles scattered, loose cables together to avoid tangling, messy arrangement and cable‑to‑cable friction.
Reliable Environmental Adaptability
The base textile material resists common aging from temperature fluctuation. Optional upgraded versions including flame‑retardant treatment and PU waterproof coating are available to cope with harsh working conditions.
Broad Specification Range & Customization Support
Multiple inner‑diameter sizes are in stock to match different harness bundle diameters.

Remarks: Custom sizes and colors are available upon customer request.
