Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0

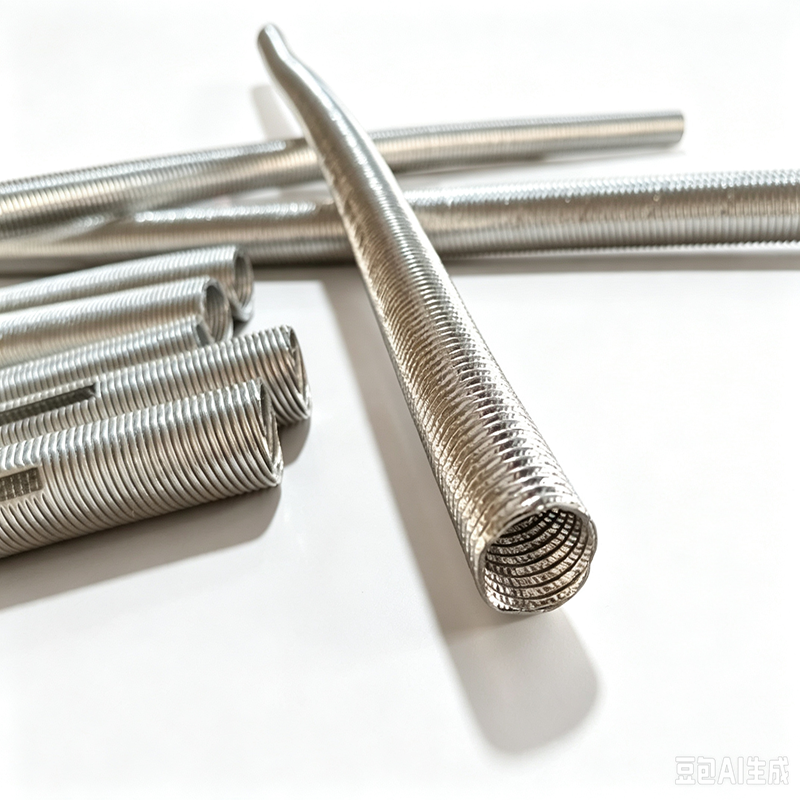

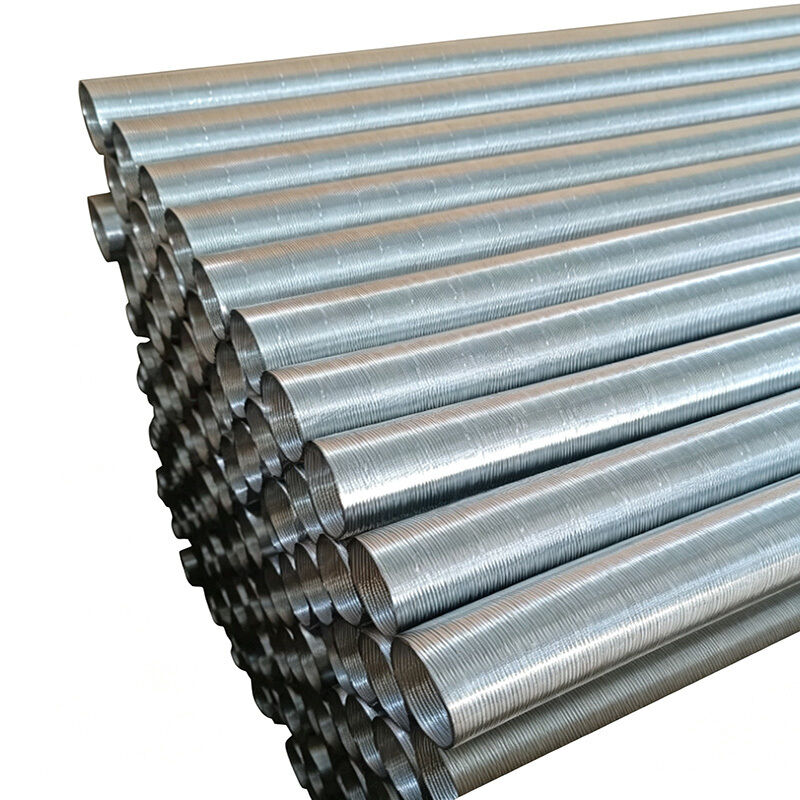

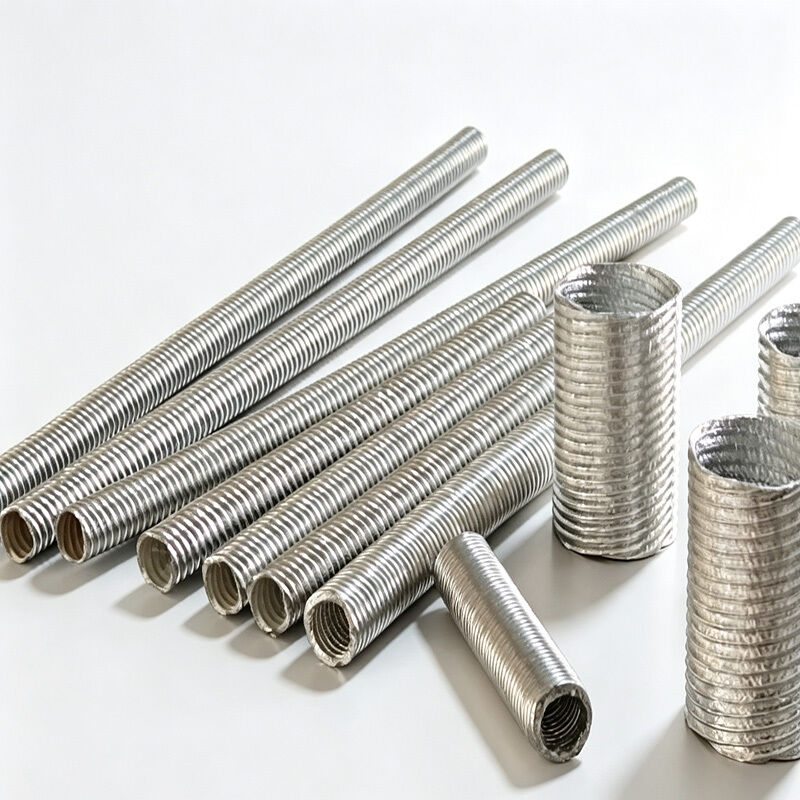

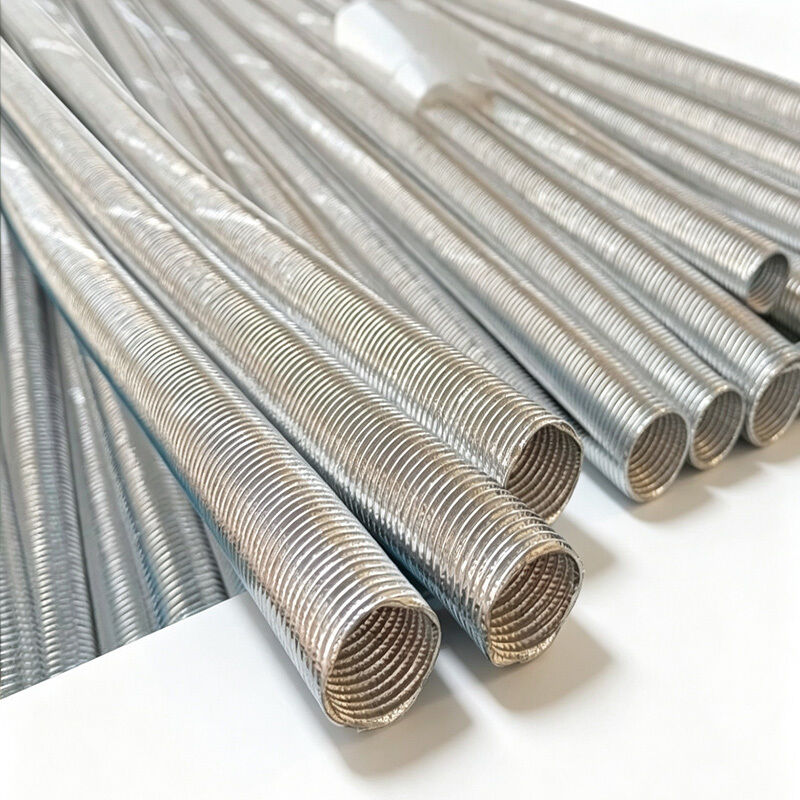

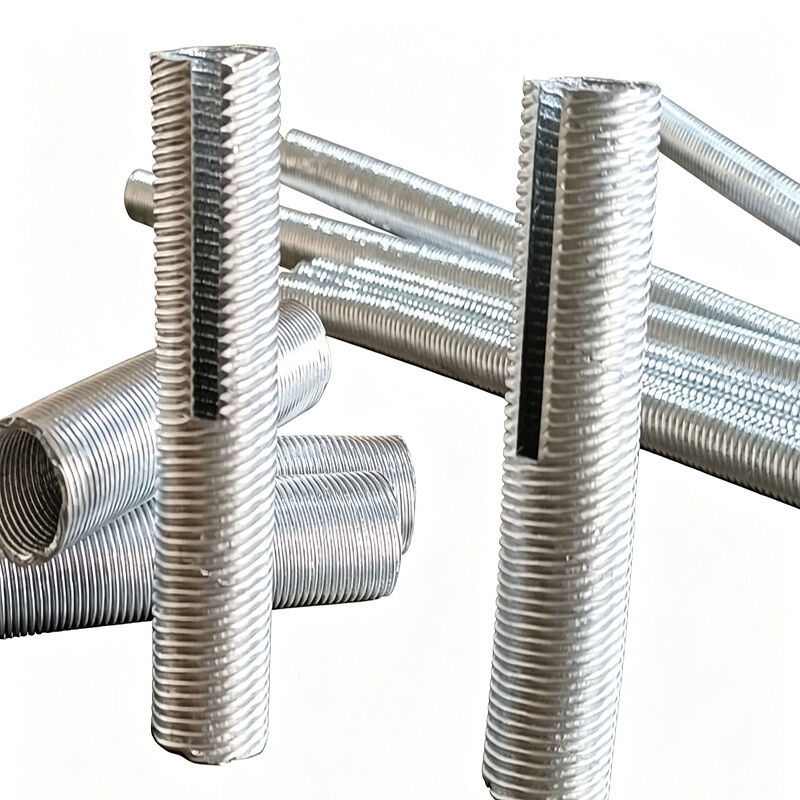

Aluminum Foil Fiberglass Corrugated Sleeve
This product adopts a three‑layer structure. The middle layer is woven with fiberglass yarn, and both inner and outer surfaces are covered with aluminum foil. It is specially designed for heat‑resistance protection of automotive rubber hoses, plastic tubes and wire harnesses, and complies with international RoHS standards. It features excellent light‑shielding, heat‑reflection and thermal‑insulation properties, which can effectively reduce the thermal influence of heat sources on components. Custom double‑layer sleeves with aluminum foil on the outer layer and fiberglass on the inner layer are available upon request.
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
Product Features | Item | Parameter |
|---|---|
| Material | Aluminum Foil + Polyester Staple Fiber |
| Operating Temperature | -40℃ ~ +200℃ |
| Flame Retardant Rating | Complies with UL94 V-1 |
| Color | Natural |
| Certifications | RoHS2.0 |
●Oil Resistance: In accordance with GMW15608, no delamination or degradation after test.●High‑Temperature Aging: Referring to GMW15608, no delamination after 168‑hour test at 200℃.●Low‑Temperature Flexibility: In accordance with GMW15608, no crack or delamination after 24‑hour test at ‑40℃.Product Dimensions | Model | Inner Diameter(ID) | Outer Diameter (OD) | Max Wire Harness Diameter | Packing |
|---|---|---|---|---|
| XQSQ-009 | φ9±0.3 mm | 12±0.5 mm | φ10 mm | Customized per request |
| XQSQ-12 | φ12±0.3 mm | 15±0.5 mm | φ13 mm | Customized per request |
| XQSQ-14 | φ14±0.3 mm | 17±0.5 mm | φ15 mm | Customized per request |
| XQSQ-16 | φ16±0.3 mm | 19±0.5 mm | φ17 mm | Customized per request |
| XQSQ-18 | φ18±0.3 mm | 21±0.5 mm | φ19 mm | Customized per request |
| XQSQ-22 | φ22±0.3 mm | 25.8±0.5 mm | φ23 mm | Customized per request |
| XQSQ-25 | φ25±0.3 mm | 28.7±0.5 mm | φ26 mm | Customized per request |
| XQSQ-28 | φ28±0.3 mm | 31.8±0.5 mm | φ28 mm | Customized per request |
| XQSQ-32 | φ32±0.3 mm | 35.9±0.5 mm | φ33 mm | Customized per request |
Remarks: Custom sizes and colors are available upon customer request.
