White Silicone Fiberglass Sleeve Flexible High Temperature Fiberglass Sleeve Flame Retardant

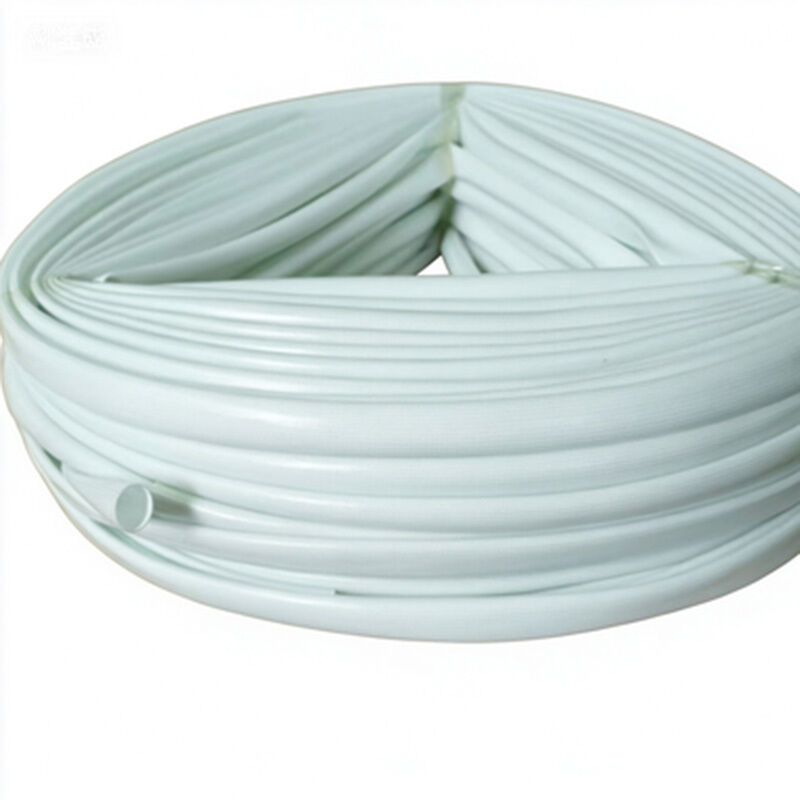

White Silicone Fiberglass Sleeve

Silicone Fiberglass Sleeve Flexible

High Temperature Fiberglass Sleeve Flame Retardant

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQI

Certification:

UL224/CAN/CSA /C22.2 /No.198.1-99

Chat Now

Request A Quote

Product Details

Name:

Silicone Fiberglass Sleeve

Working Temperature:

200ºC

Structure:

Non-Alkali Fiberglass Braided Then Coated With Silicone Resin And Treated In High Temperature.

Color:

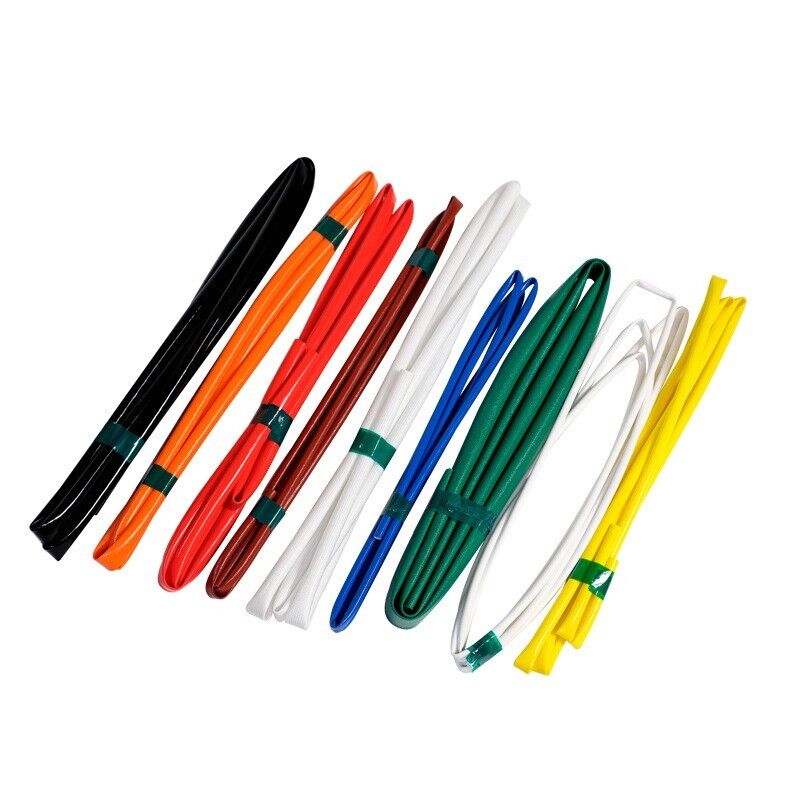

Standard Color Is White, Other Color Available Upon Request.

Package:

Packing By Rolls Or Cut Upon Request.

Highlight:

White Silicone Fiberglass Sleeve

Silicone Fiberglass Sleeve Flexible

High Temperature Fiberglass Sleeve Flame Retardant

Payment & Shipping Terms

Minimum Order Quantity

200M

Price

0.01-0.2usd/M

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5 work days

Payment Terms

T/T

Supply Ability

8 million M /year

White High Temperature Silicone Resin Coated Fiberglass Sleeving

Product Introduction

        Structure :
         This sleeving is woven from non-alkali fiberglass, coated with silicone resin and cured under high temperature.

Usage:

This sleeving features excellent dielectric strength, flexibility and flame retardancy for superior overall performance. It is widely applied to fully/partially insulated wires, busbars, component leads and other electrical component assemblies.

Product Specification

Item	Speeifications	Test Method
Temperature Range	10℃~+200℃	UL
Temperature Resistance	265±2℃ 168h≥1/2Original value of voltage	UL
Aging Test	260℃,72h,NO Cracking	260°C, test duration: 72 hours. Take out the sample and conduct testing at ambient temperature.

Basic Info

	Material	Fiberglass
	Type	Insulation Sleeve & Tube
	Classification	Hybrid Insulation Materials
	Chemistry	Organic Insulation
	Certification	ISO9001

Product Dimensions

Dimension	Internal Diameter Tolerance(mm)	Wall Thickness for 1500V Grade(mm)	Wall Thickness for 2500V Grade(mm)	Wall Thickness for 4500V Grade(mm)	Wall Thickness for 7000V Grade(mm)	Standard Packaging
(mm)	Internal Diameter Tolerance(mm)	Wall Thickness for 1500V Grade(mm)	Wall Thickness for 2500V Grade(mm)	Wall Thickness for 4500V Grade(mm)	Wall Thickness for 7000V Grade(mm)	m/reel
Φ1.0	0.3-0.1	0.32±0.06	0.36±0.06	0.42±0.06	0.55±0.06	200
Φ1.5	0.3-0.1	0.37±0.06	0.38±0.06	0.43±0.06	0.58±0.06	200
Φ2.0	0.3-0.1	0.37±0.06	0.39±0.06	0.45±0.06	0.58±0.06	200
Φ2.5	0.3-0.1	0.37±0.06	0.41±0.06	0.48±0.06	0.6±0.06	200
Φ3.0	0.3-00.1	0.37±0.06	0.43±0.06	0.5±0.06	0.6±0.06	100
Φ3.5	0.3-0.1	0.38±0.06	0.43±0.06	0.53±0.06	0.638±0.06	100
Φ4.0	0.3-0.1	0.39±0.06	0.44±0.06	0.56±0.06	0.64±0.06	100
Φ4.5	0.3-0.1	0.39±0.06	0.43±0.06	0.57±0.06	0.64±0.06	100
Φ5.0	0.3-0.1	0.39±0.06	0.43±0.06	0.57±0.06	0.65±0.06	100
Φ5.5	0.4-0.1	0.40±0.06	0.43±0.06	0.56±0.06	0.65±0.06	100
Φ6.0	0.4-0.1	0.40±0.06	0.445±0.06	0.55±0.06	0.65±0.06	100
Φ7.0	0.4-0.1	0.41±0.06	0.43±0.06	0.55±0.06	0.65±0.06	100
Φ8.0	0.4-0.1	0.42±0.06	0.43±0.06	0.57±0.06	0.65±0.06	100
Φ9.0	0.4-0.1	0.48±0.06	0.53±0.06	0.68±0.06	0.75±0.06	50
Φ10.0	0.5-0.1	0.5±0.06	0.53±0.06	0.71±0.06	0.76±0.06	50
Φ11.0	0.5-0.1	0.51±0.06	0.535±0.06	0.7±0.06	0.76±0.06	50
Φ12.0	0.5-0.1	0.51±0.06	0.54±0.06	0.71±0.06	0.77±0.06	50
Φ13.0	0.5-0.1	0.53±0.06	0.545±0.06	0.73±0.06	0.78±0.06	50
Φ14.0	0.5-0.1	0.51±0.06	0.53±0.06	0.75±0.06	0.79±0.06	50
Φ15.0	0.5-0.1	0.52±0.06	0.55±0.06	0.75±0.06	0.79±0.06	50
Φ16.0	0.6-0.1	0.53±0.06	0.56±0.06	0.75±0.06	0.79±0.06	50
Φ17.0	0.6-0.1	0.58±0.06	0.61±0.06	0.76±0.06	0.81±0.06	50
Φ18.0	0.6-0.1	0.6±0.06	0.63±0.06	0.78±0.06	0.81±0.06	50
Φ19.0	0.6-0.1	0.65±0.06	0.68±0.06	0.9±0.06	0.92±0.06	50
Φ20.0	0.6-0.1	0.70±0.06	0.73±0.06	0.91±0.06	0.95±0.06	50
Φ22.0	0.6-0.1	0.70±0.10	0.73±0.06	0.91±0.06	0.95±0.06	50
Φ25.0	0.6-0.1	0.73±0.10	0.76±0.06	0.91±0.06	0.95±0.06	50
Φ30.0	0.6-0.1	0.73±0.10	0.76±0.06	0.91±0.06	0.95±0.06	50

Remarks: Custom sizes are available upon customer request.
