Place of Origin:
Shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS2.0

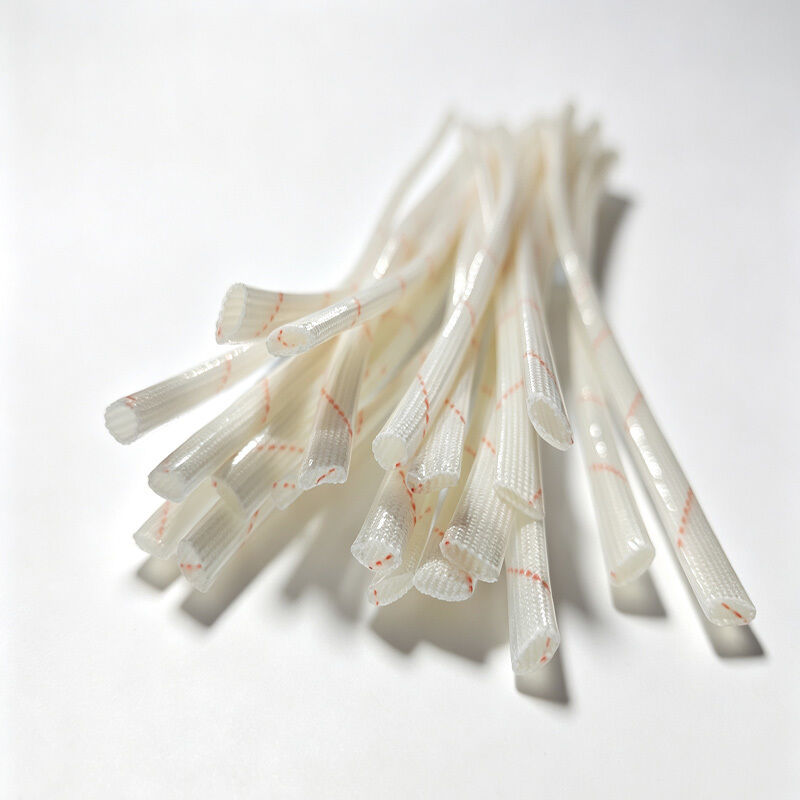

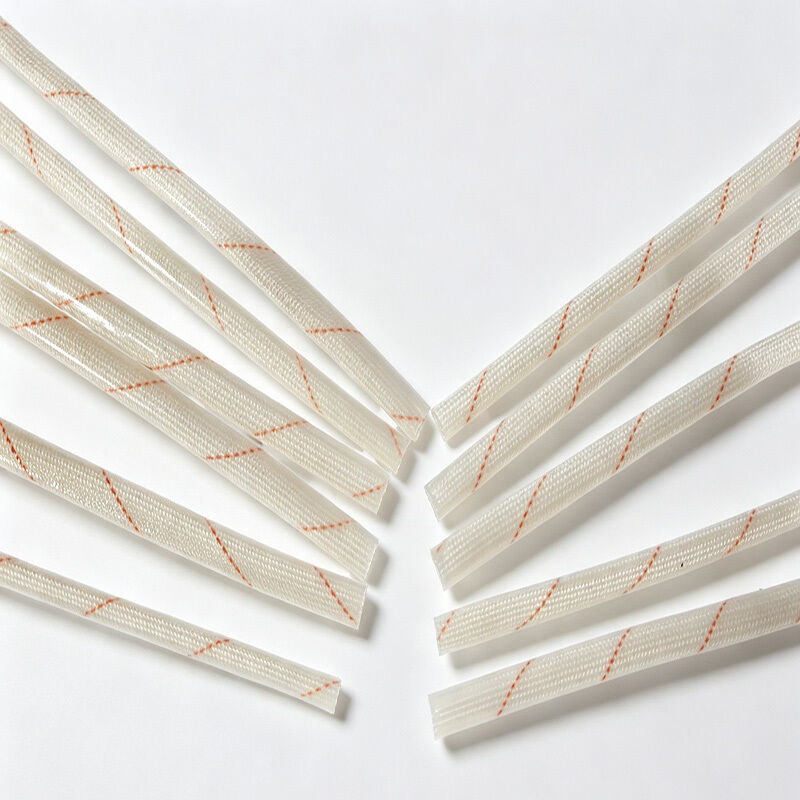

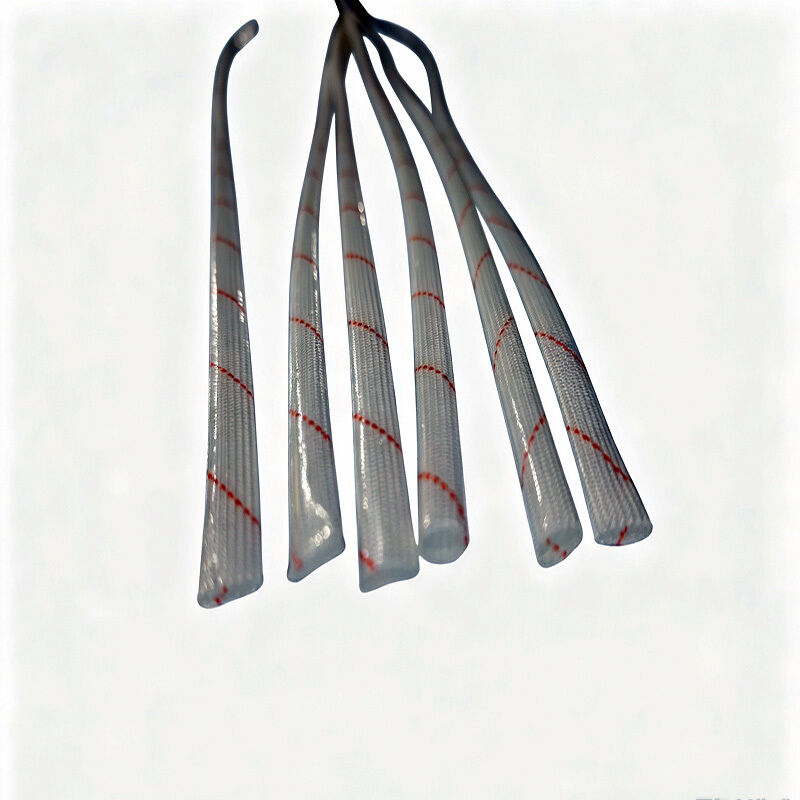

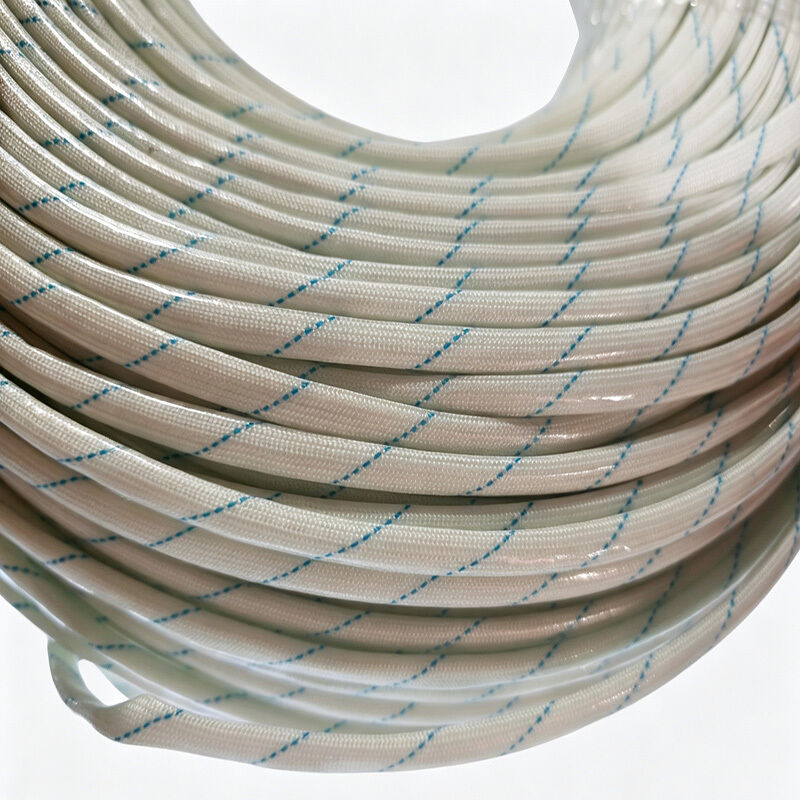

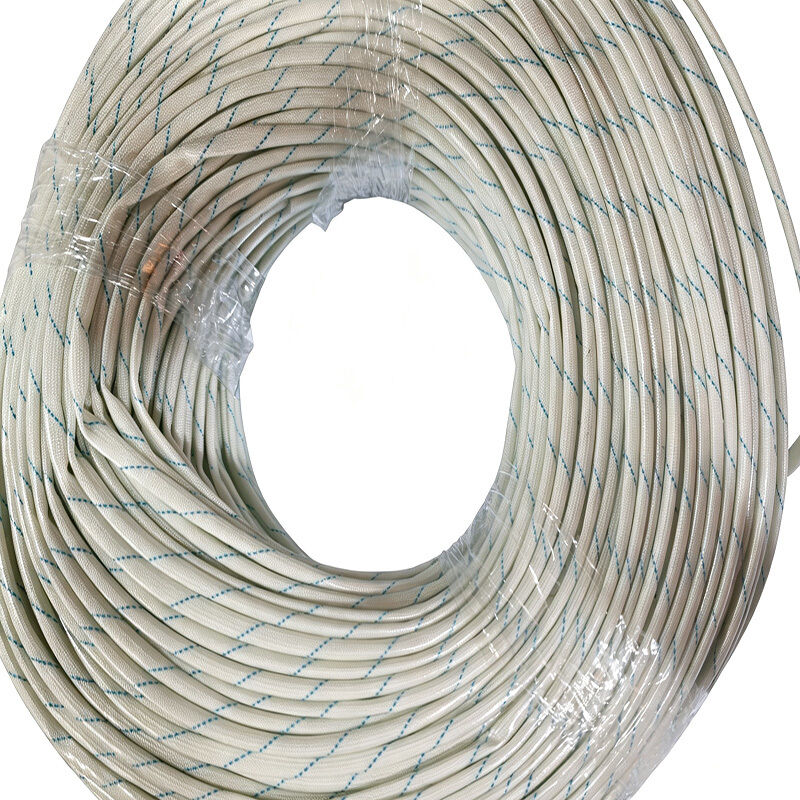

Type 2715 PVC Fiberglass Sleeving (Varnished Fiberglass Tube)
This insulating sleeve is manufactured from alkali-free fiberglass braided tube coated with polyvinyl chloride resin and thermally plasticized.
PVC fiberglass sleeving features excellent dielectric properties, chemical resistance, superior flexibility and elasticity.
It is used for wiring insulation and mechanical protection of motors, electrical appliances, instruments, medical equipment, radio equipment, televisions and household appliances such as electric fans and washing machines.
|
Item |
Value |
|
Appearance |
Uniform coating, smooth surface; no defects affecting product performance |
|
Length (mm) |
— |
|
Inner Diameter Tolerance |
±0.25 |
|
Wall Thickness |
0.20 ~ 0.75 |
|
Bending Property After Heating |
No cracking or peeling of coating |
|
Bending Property at Low Temperature |
No cracking or peeling of coating |
|
Dielectric Breakdown Voltage (Room Temperature) |
Median: ≥1.5 kV Minimum: ≥1.0 kV |
|
Heat Resistance |
110℃ ~ 120℃ |
|
Flame Spread Resistance |
≤60 seconds |
|
Low Temperature Bend Test |
(-25±2℃, 4h±10min, mandrel 15mm) No visible cracking or peeling of coating |
|
Flame Spread Resistance (Method B) |
After flame time |
Product Dimensions
|
Inside Diameter |
Wall Thickness |
|
|
Dimension |
Tolerance |
|
|
0.5mm |
+0.1mm/+0.2mm |
0.35±0.05mm |
|
1.0-1.5mm |
+0.1mm/+0.3mm |
0.35±0.05mm |
|
2.0-2.5mm |
+0.1mm/+0.4mm |
0.35±0.05mm |
|
3.0-7.0mm |
+0.1mm/+0.5mm |
0.35±0.05mm |
|
8.0-9.0mm |
+0.1mm/+1.0mm |
0.50±0.05mm |
|
10.0-25.0mm |
+0.1mm/+1.0mm |
0.55±0.05mm |
|
26.0-35.0mm |
+0.1mm/+1.0mm |
0.55±0.05mm |
Remarks:
1 ,The color may be a little bit different, but does not affect the performance
2,The exceeded wall thickness is overquality, which has no effection on
performance of sleeving. We will control it in minimum wall thickness in future
3 ,The alcoholic varnish from different suppliers may not be same in incompatible
performance with sleeving,please use it before test
Solid colors are available for customization (with MOQ requirement; few in stock).
White, black, red, yellow, blue, green.
Any solid color can be customized for large orders; only striped styles are generally in stock for small-quantity purchases.
