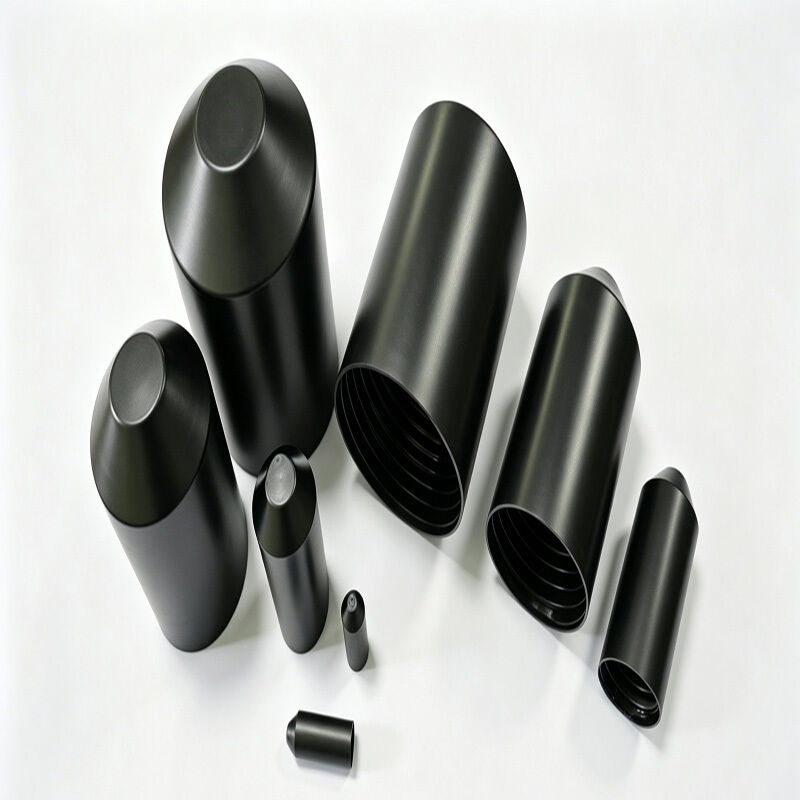

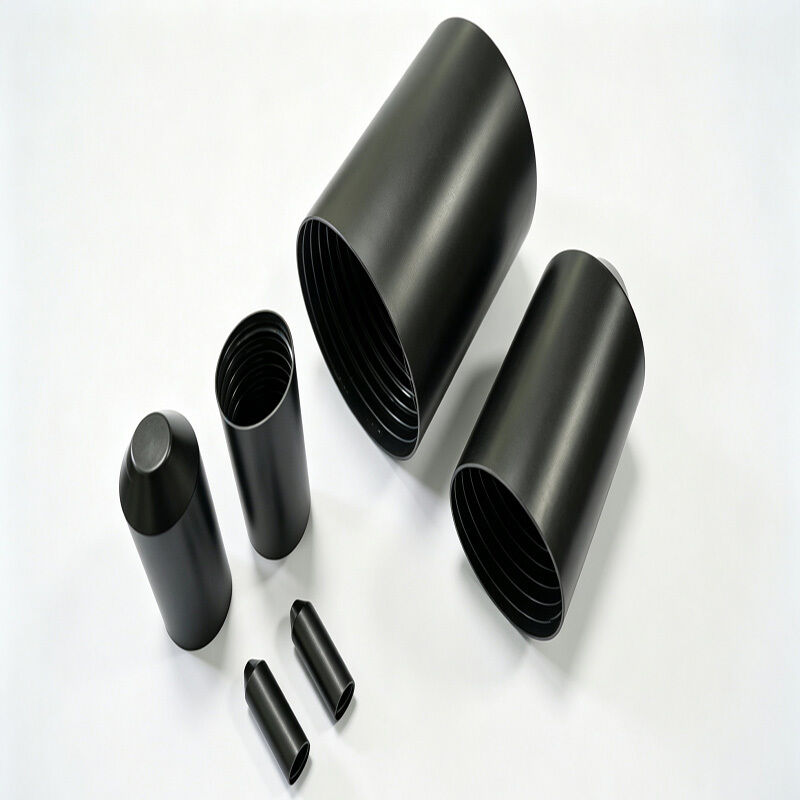

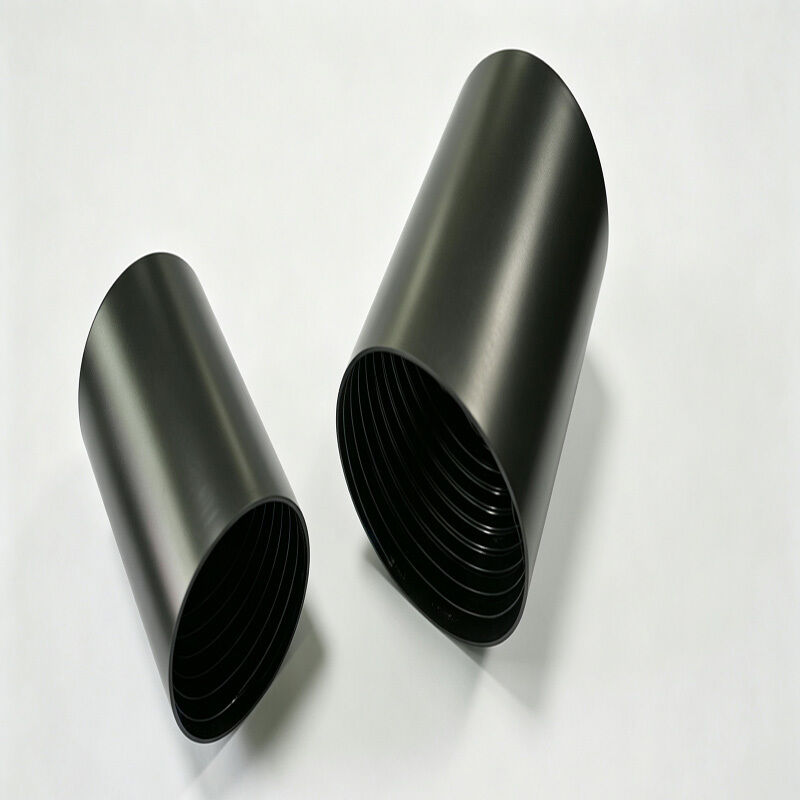

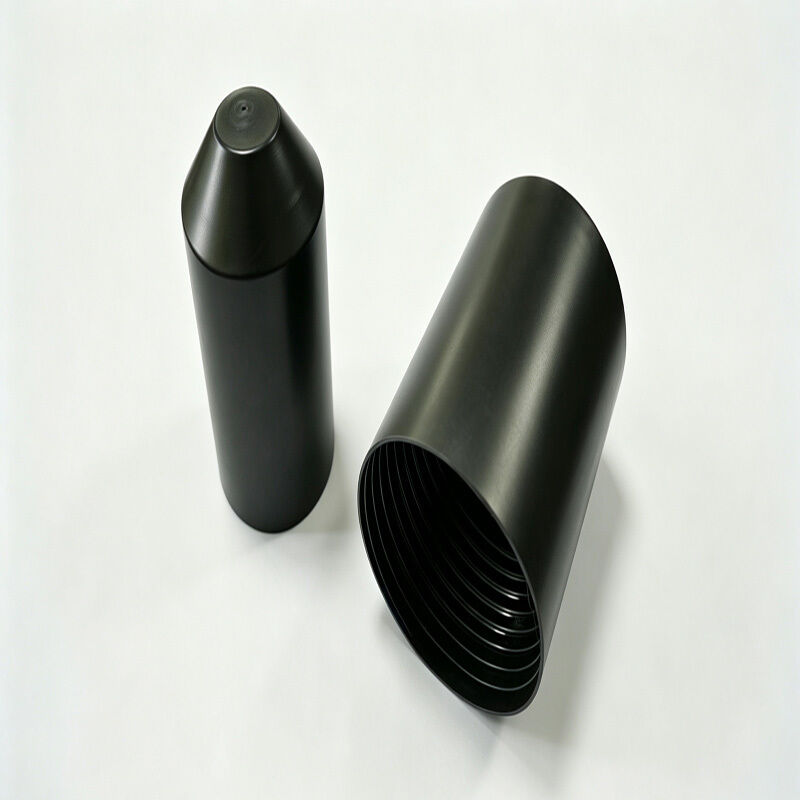

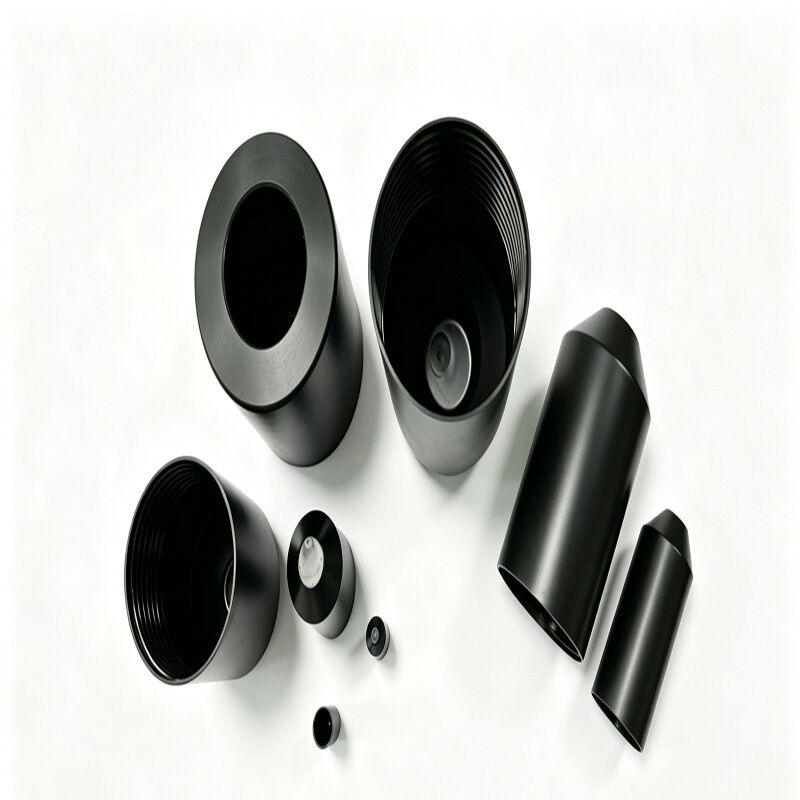

This black heat shrink insulating sealing cap with adhesive lining offers excellent waterproof sealing and insulation. Flame-retardant & halogen-free, it fits cable terminals, provides IP67 protection for electrical, new energy and wiring harness applications.
l With or without spiral hot melt adhesive liner
l Suitable for terminal sealing and insulation protection of all types of cables.
l Ultraviolet Resistant
l CInsulating / Conductive options available
l Environmentally compliant with RoHS directive
l Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Insulating Varnish, Switch Baseplate
Basic Info
|
|
Shrink ratio |
3:1 |
|
Standard colors |
black |
|
|
Base material |
Irradiation cross-linked polyolefin |
|
|
Recovery Temperature |
120℃ |
Product Technical Specifications
|
Performance Item |
Test Method |
Technical Data |
|
Tensile Strength |
ASTM D 2671 |
12MPa(Min.) |
|
Elongation at Break |
ASTM D 2671 |
200%(Min.) |
|
Volume resistivity |
IEC 93 |
10“0.cm(Min.) |
|
Dielectric Breakdown Strength |
IEC 60243 |
12kV/mm(1.0mm)(Min.) |
|
Water Absorption |
ISO 62 |
0.5%(Max.) |
|
Heat Shock (225℃/h) |
ASTM D 2671 |
No cracking, no dripping |
|
Density |
ASTM D 792 |
1.0~1.1g/cm2 |
Product Dimensions
|
A=spiral hot melt adhesive |
||||||
|
Dimension (mm) |
Available Sizes(mm) |
After Recovery(mm) |
||||
|
L*(±10%) |
D*(Min.) |
A*(±10%) |
d*(±10%) |
I* (±10%) |
Dw(±10%) |
|
|
Heat Shrink End Cap=HSEC,Standard Length |
||||||
|
SQFM 105 12/4 |
38 |
12 |
15 |
4 |
40 |
2.6 |
|
SQFM 110 14/5 |
45 |
14 |
18 |
5 |
42 |
2.2 |
|
SQFM 115 20/6 |
65 |
20 |
25 |
6 |
55 |
2.5 |
|
SQFM 120 25/8.5 |
75 |
25 |
30 |
8.5 |
65 |
2.5 |
|
SQFM 130.35/16 |
92 |
35 |
35 |
16 |
83 |
3.3 |
|
SQFM 135 40/15 |
95 |
40 |
40 |
15 |
75 |
33 |
|
SQFM 140 55/26 |
114 |
55 |
50 |
26 |
105 |
3.5 |
|
SQFM 150 75/36 |
132 |
75 |
55 |
36 |
115 |
4.2 |
|
SQFM 160 100/52 |
153 |
100 |
70 |
52 |
130 |
5.0 |
|
SQFM 170 120/60 |
155 |
120 |
70 |
60 |
150 |
5.0 |
|
SQFM 180 145/60 |
160 |
145 |
70 |
60 |
150 |
5.0 |
|
SQFM190 160/82 |
160 |
160 |
70 |
82 |
133 |
4.5 |
|
SQFM200 200/90 |
170 |
200 |
70 |
90 |
145 |
4.5 |
L*:Supplied Length of End Cap,D*Supplied Inner Diameter,A*Glue Length After Recovery,d*Inner Diameter After Recovery,I*End Cap Length After Recovery
Remarks: Custom sizes and colors are available upon customer request.
