Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0

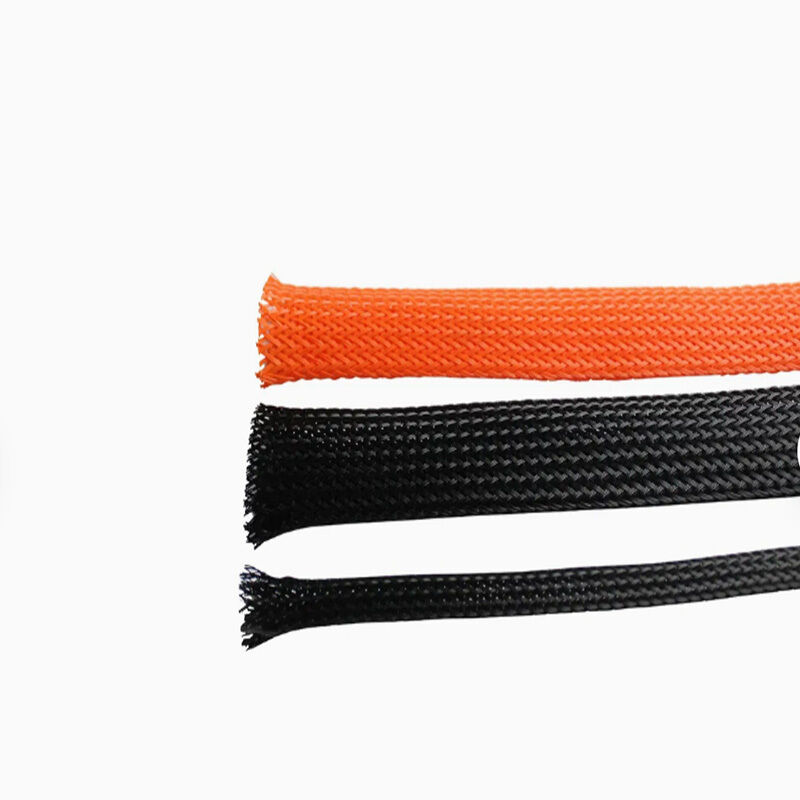

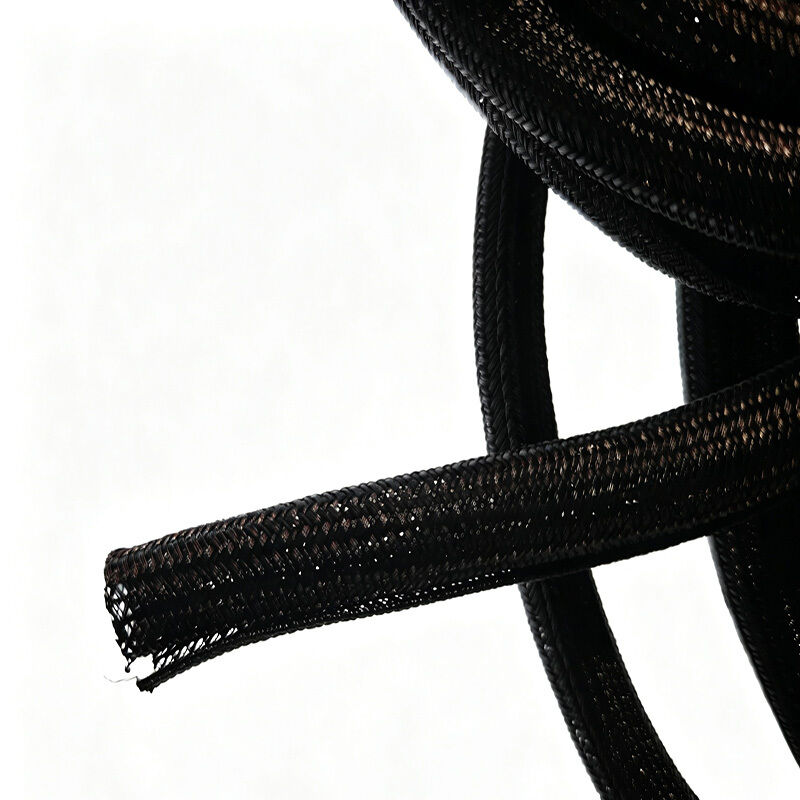

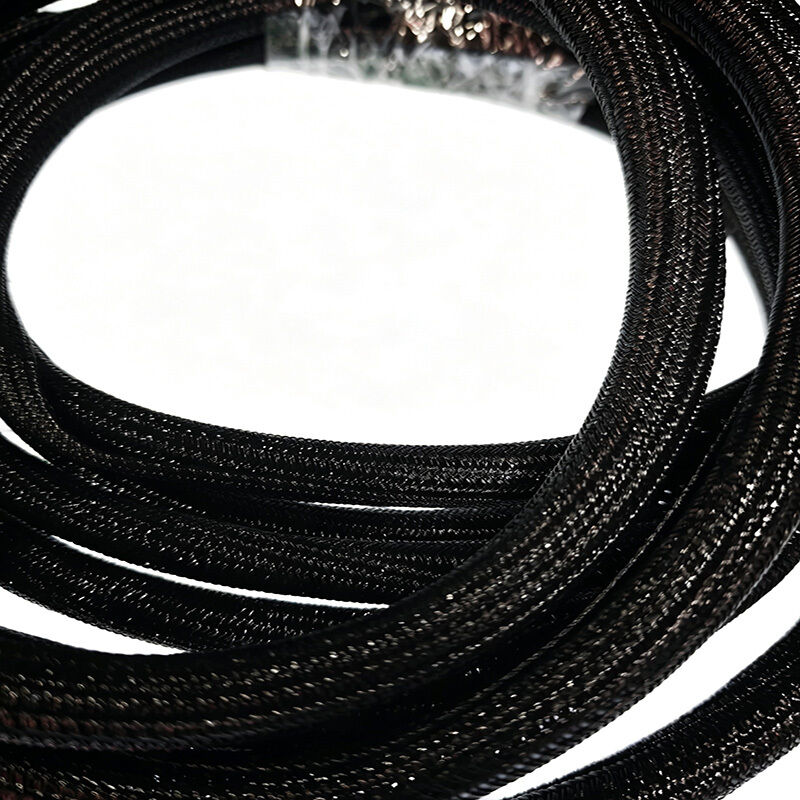

Self-Wrapping Braided Expandable Cable Sleeve 138225
Constructed from eco‑friendly polyester monofilament, this product is specially designed as anti‑abrasion protection for automotive rubber hoses, plastic tubes and automotive wire harnesses.
It complies with international standards including RoHS and REACH, and delivers excellent flame retardancy, oil resistance and halogen‑free performance.
Simple to handle and easy to install, it is widely applied in fields with high flame‑retardant requirements such as automotive control cabinets, railway, high‑speed rail and aviation, providing cable organizing, mechanical protection and flame‑retardant functions.
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
Product Features
| Item | Parameter |
|---|---|
| Material |
Nylon + PET |
| Operating Temperature | -40℃ ~ +150℃ |
| Melting Point | 240±10℃ |
| Flame Retardant Rating | Complies with UL94 V-2, |
| Color | black |
| Certifications | RoHS2.0,ISO9001 |
| Abrasion Grade | GMW14327 referenced, 40,000 cycles, Level 5 compliant |
Product Dimensions
| Model | Flat Width (W) Expansion Range | Braiding Specification | Packing |
|---|---|---|---|
| XQ138225‑003 | 2.5‑4 | 163020‑8 | 500 m/roll |
| XQ138225‑004 | 3‑6 | 243020‑9 | 500 m/roll |
| XQ138225‑005 | 4‑8 | 323020‑9 | 500 m/roll |
| XQ138225‑006 | 4‑10 | 403020‑8 | 500 m/roll |
| XQ138225‑008 | 6‑12 | 483020‑8 | 500 m/roll |
| XQ138225‑010 | 8‑14 | 483025‑8 | 200 m/roll |
| XQ138225‑012 | 10‑16 | 563020‑8 | 200 m/roll |
| XQ138225‑14 | 12‑16 | 563025‑8 | 200 m/roll |
| XQ138225‑16 | 14‑18 | 643025‑8 | 200 m/roll |
| XQ138225‑18 | 16‑25 | 723025‑8 | 200 m/roll |
| XQ138225‑20 | 18‑28 | 963025‑8 | 200 m/roll |
| XQ138225‑25 | 22‑40 | 1203025‑7 | 100 m/roll |
| XQ138225‑30 | 35‑55 | 1204025‑6 | 100 m/roll |
| XQ138225‑40 | 40‑60 | 1205025‑6 | 100 m/roll |
| XQ138225‑50 | 50‑70 | 1206025‑5 | 100 m/roll |
| XQ138225‑60 | 60‑85 | 1207025‑4 | 100 m/roll |
Product Advantages
Self‑wrapping open‑type design, easy installation without disconnecting cables, convenient for later wiring modification and maintenance.
High‑expandable braided PET structure, great flexibility for bundling different‑diameter wire harnesses.
Excellent abrasion‑resistance, protects cables from friction damage, prolongs service life.
Good heat dissipation with breathable woven texture, no heat accumulation.
Flame‑retardant & RoHS compliant, stable performance for automotive, machinery and cabinet wiring applications.
Remarks: Custom sizes and colors are available upon customer request.
