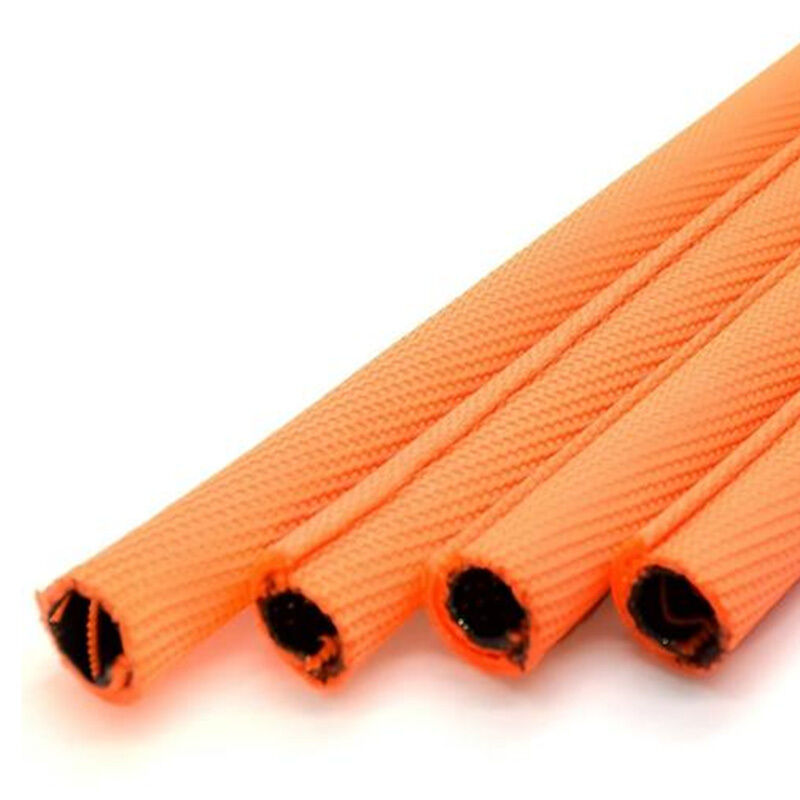

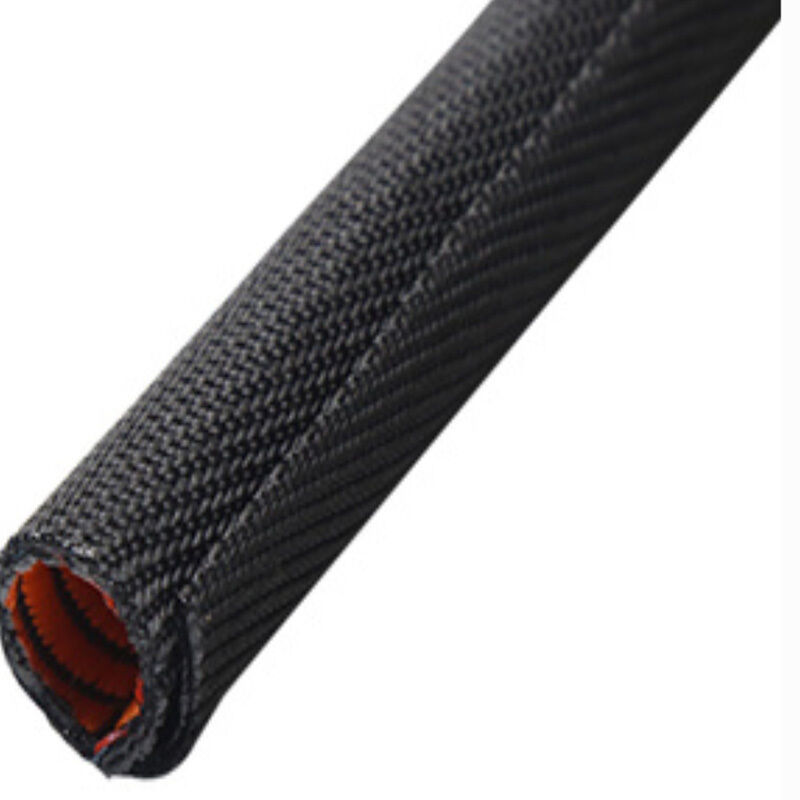

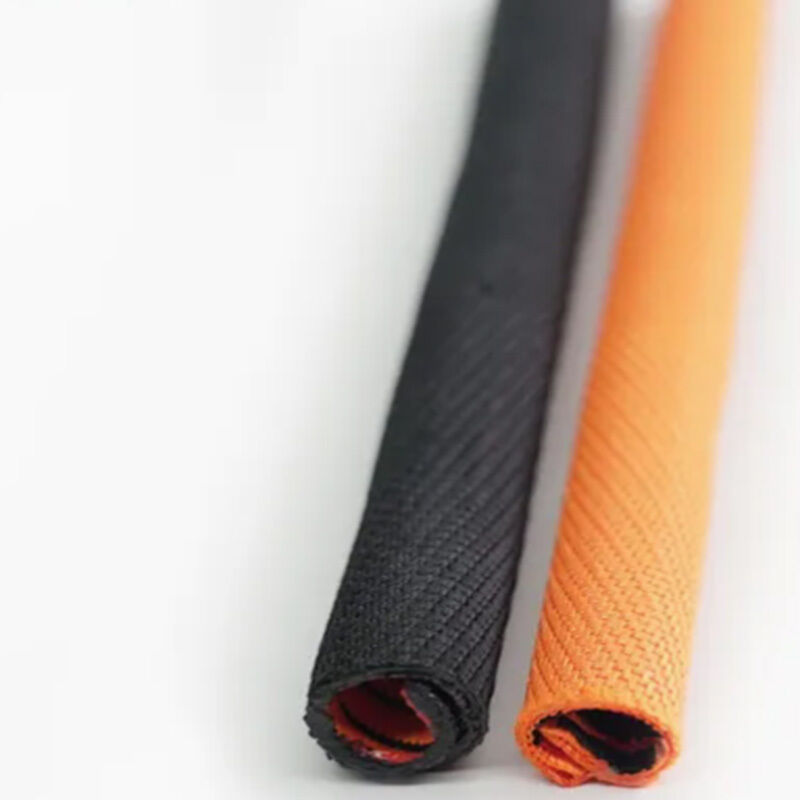

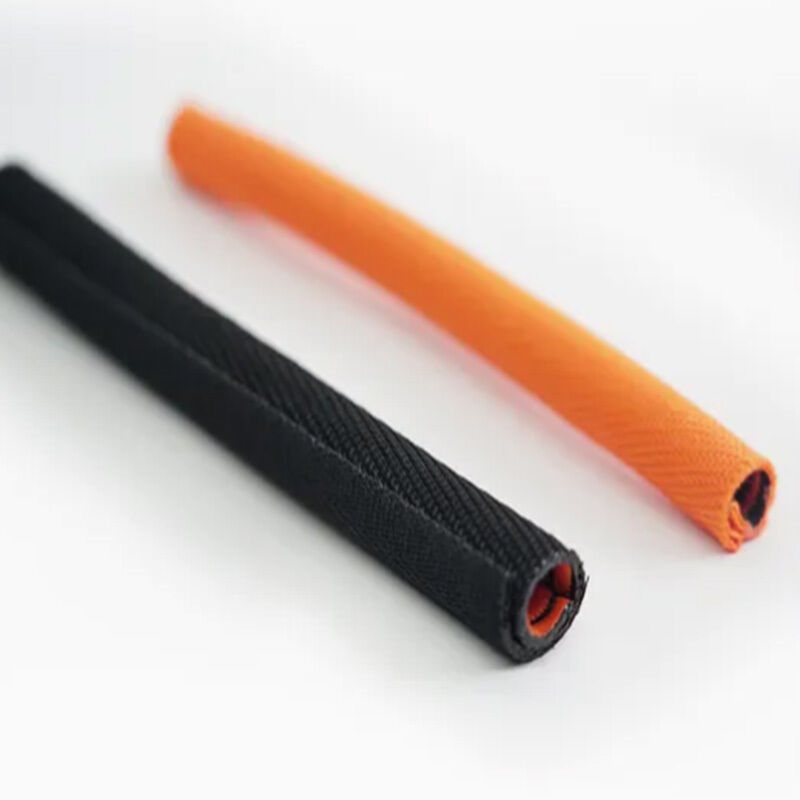

Dual Layer Expandable Braided Sleeving Wear Resistant Self Closing Wire Wrap Orange Black

Dual Layer Expandable Braided Sleeving

Wear Resistant Self Closing Wire Wrap

Self Closing Wire Wrap Orange

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS 2.0

Chat Now

Request A Quote

Product Details

Name:

Dual Layer Abrasion Warning Self‑Closing Cable Sleeve

Material:

PET Monofilament +polyester Fiber

Melting Point:

240±10℃

Flame Retardant Rating:

Complies With UL94 V-2

Color:

Outer‑black & Inner‑orange, Outer‑orange & Inner‑black

Highlight:

Dual Layer Expandable Braided Sleeving

Wear Resistant Self Closing Wire Wrap

Self Closing Wire Wrap Orange

Payment & Shipping Terms

Minimum Order Quantity

200M

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5work days

Payment Terms

T/T

Dual Layer Abrasion Warning Self‑Closing Cable Sleeve

Product Introduction

Manufactured by mixed‑braiding of polyester multifilament and polyester monofilament, it delivers excellent impact protection for cables, featuring superior wear‑resistance and high impact resistance. Adopting double‑layer construction, the inner layer is available with black warning layer or orange warning layer. With side‑opening self‑wrapping structure, it enables easy installation and subsequent maintenance. Widely used for wear and impact protection of new‑energy vehicle wiring harnesses and hoses.

  Product Features

Item	Parameter
Material	PET monofilament+polyester fiber
Operating Temperature	-40℃ ~ +150℃
Melting Point	240±10℃
Flame Retardant Rating	Complies with UL94 V-2
Color	Outer‑black & inner‑orange, outer‑orange & inner‑black
Certifications	RoHS2.0,ISO9001
Abrasion resistance rating	Referenced to GMW14327, 40,000 abrasion cycles, meets Level 5 requirement.

Product Dimensions

Model	Inner Diameter (mm)	Max Outer Diameter (mm)	Max Harness Diameter (mm)	Packing
XQD‑008	φ8	10±0.2	φ9	As per customer’s requirement
XQD‑010	φ10	12±0.2	φ11	As per customer’s requirement
XQD‑13	φ13	15±0.2	φ13	As per customer’s requirement
XQD‑16	φ16	17±0.2	φ17	As per customer’s requirement
XQD‑19	φ19	21±0.2	φ20	As per customer’s requirement
XQD‑25	φ25	27±0.2	φ25	As per customer’s requirement
XQD‑29	φ29	31±0.1	φ30	As per customer’s requirement
XQD‑32	φ32	34±0.2	φ34	As per customer’s requirement
XQD‑38	φ38	40±0.2	φ40	As per customer’s requirement

Product Advantages

This dual‑layer abrasion warning self‑closing cable sleeve provides reliable protection for wires and cables. Its two‑color design gives visible wear alert: once the outer layer is worn through, the inner contrasting color is exposed for timely inspection.

Thanks to the self‑wrapping structure, it can be quickly fitted onto finished harnesses without disconnecting cables. High‑strength braided material delivers great abrasion resistance. It is flame‑retardant, flexible and anti‑loosening under vibration. Widely used in machinery, automotive and industrial wiring systems.

Remarks:

Inner diameter refers to the round diameter of sleeve, not flattened diameter.
Special packing, special colors and others can be customized according to customer requirements.
For detailed product parameters, please refer to the sample approval document.
