• Operating Temperature: -40°C ~ +110°C
• Product Certification: RoHS2.0

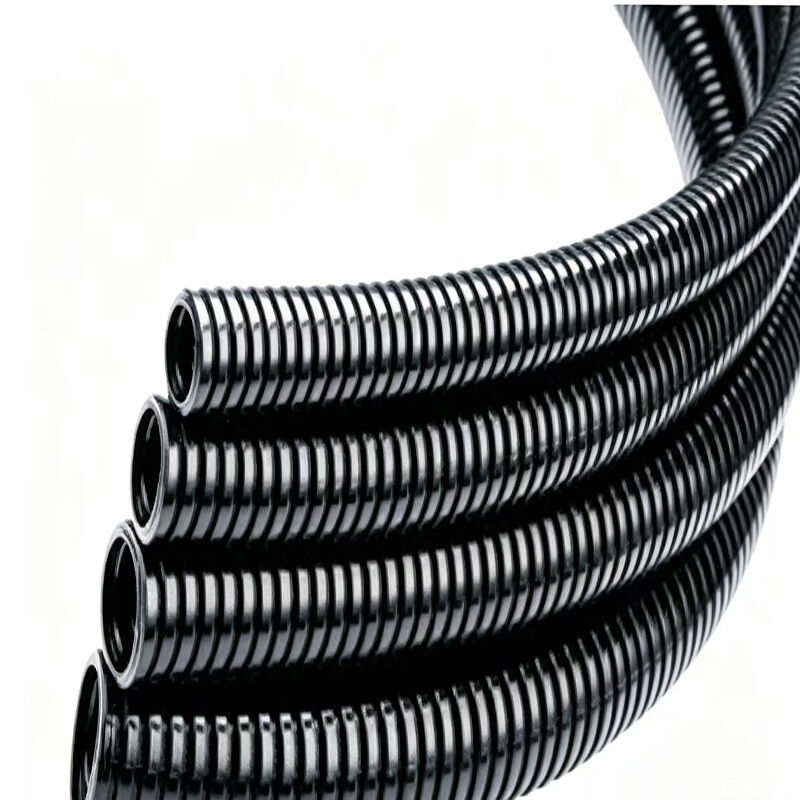

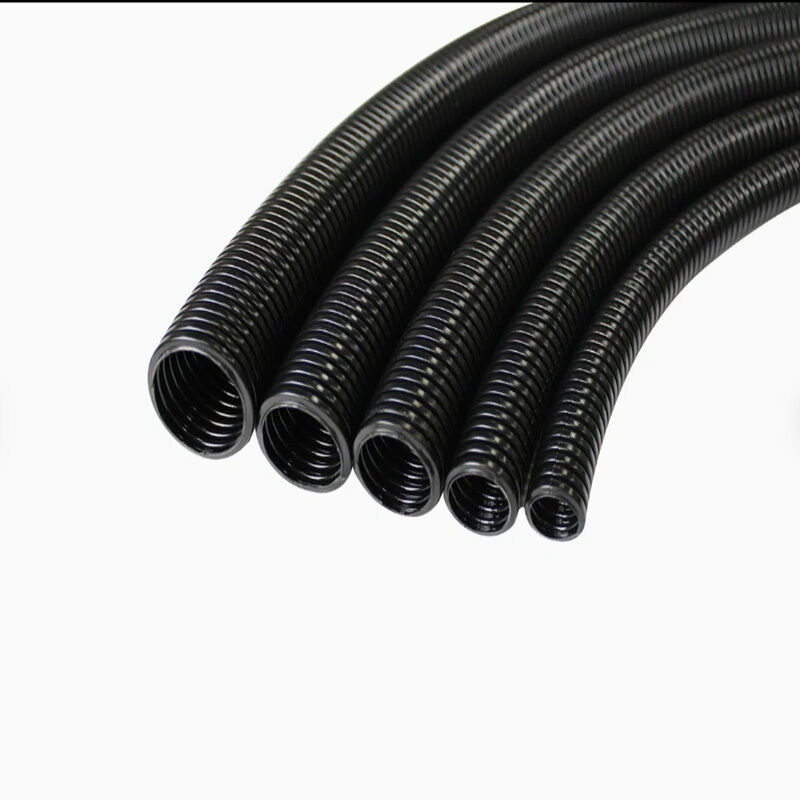

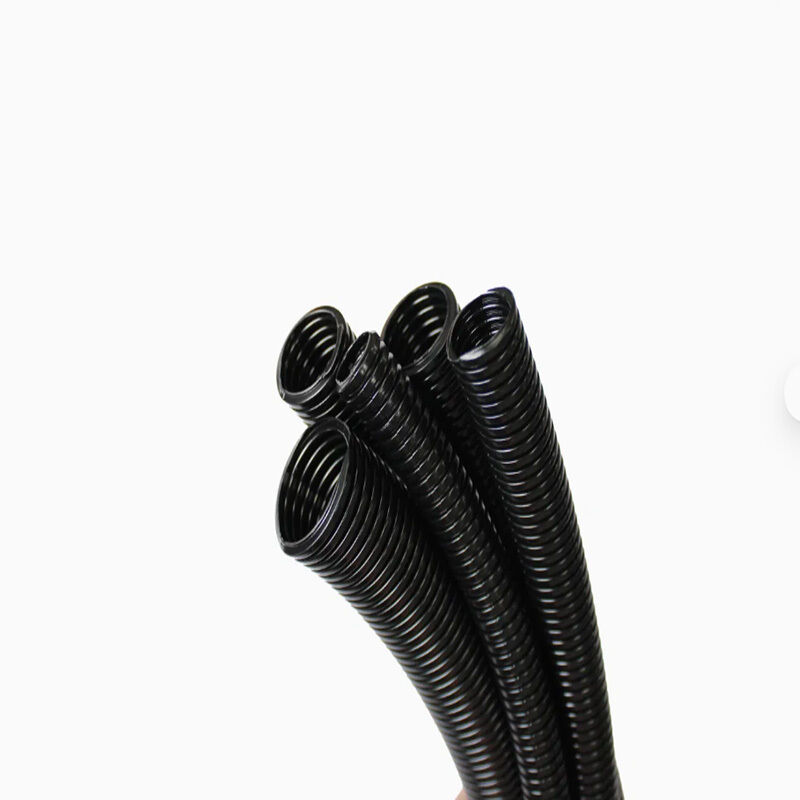

• Product Structure: Corrugated on both inner and outer surfaces
• Flame Retardant Rating: V2 (V0 is available upon customization)

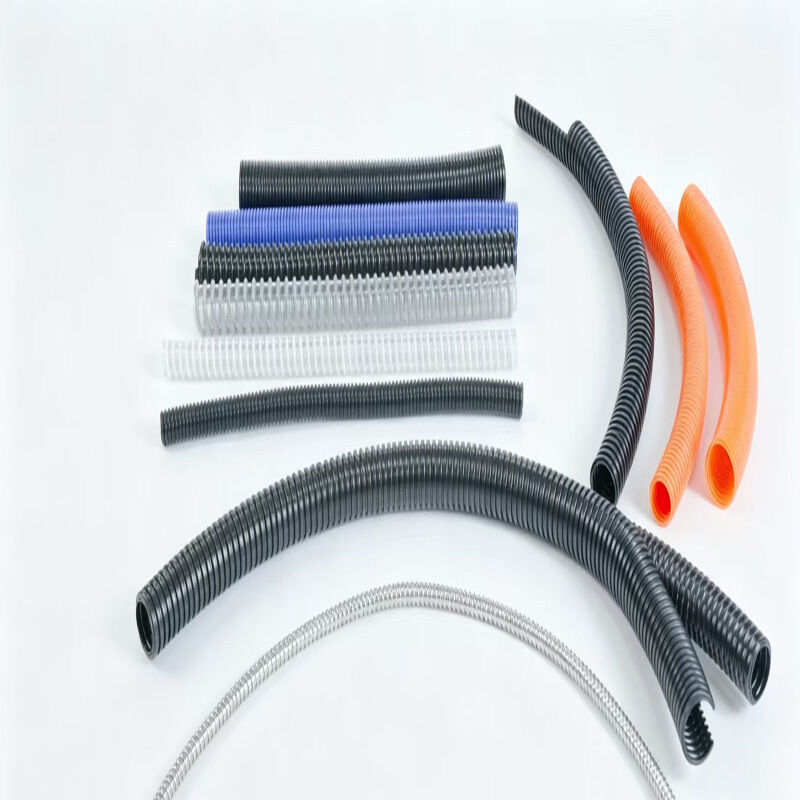

• Product Color: Black; other colors are customizable. Slit‑open type is optional as required.

• Product Features: Good flexibility, anti‑torsion and excellent bending performance, capable of bearing heavy loads. Resistant to acids, lubricating oils, coolants, etc. Glossy surface with good abrasion resistance.

• Load‑bearing Capacity: Able to withstand foot‑stepping pressure without cracking or deforming. It can quickly rebound with no damage to the product itself.

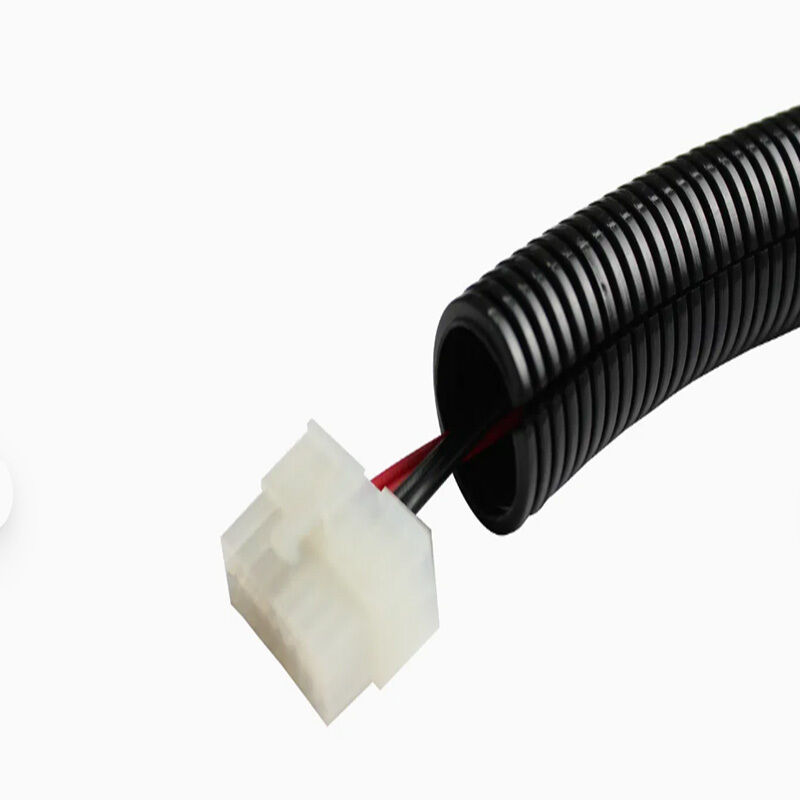

• Application Fields: Robotics, industrial automation equipment, new‑energy vehicle wire harnesses, aerospace equipment, high‑speed trains, subways, rail transit equipment, ships, power generation, chemical industry, robotic arms, machine tools & mechanical equipment, lighting fixtures, electrical insulation protection systems, etc.
• Suitable for both dynamic and static environments with flame‑retardant requirements. It features self‑extinguishing property and high fatigue resistance against frequent mechanical bending. Especially suitable for applications requiring high flexibility and strict fire‑safety performance. It provides reliable mechanical stress resistance under dry, wet and cold conditions. Excellent UV‑resistance, weather resistance and chemical resistance enable its wide‑ranging applications.

Product Dimensions

Remarks:Corrugated tubes are available in split and non-split types (colors can be customized according to customer requirements).
Any special requirements on color, length and packaging shall be negotiated between the supplier and the buyer.
Our company reserves the right to adjust the inner diameter, outer diameter and structural dimensions.
