Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0
application

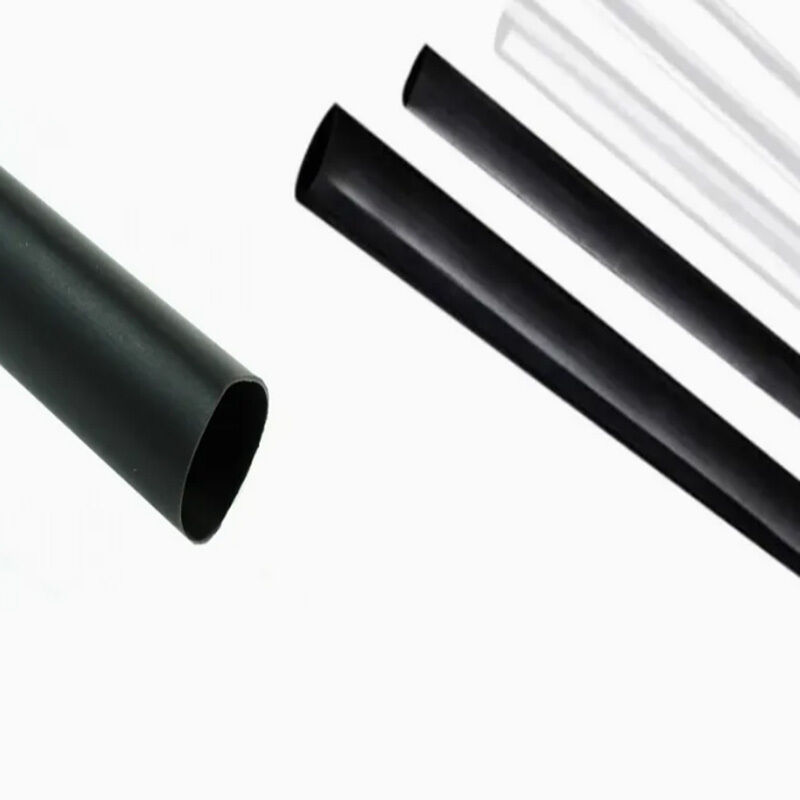

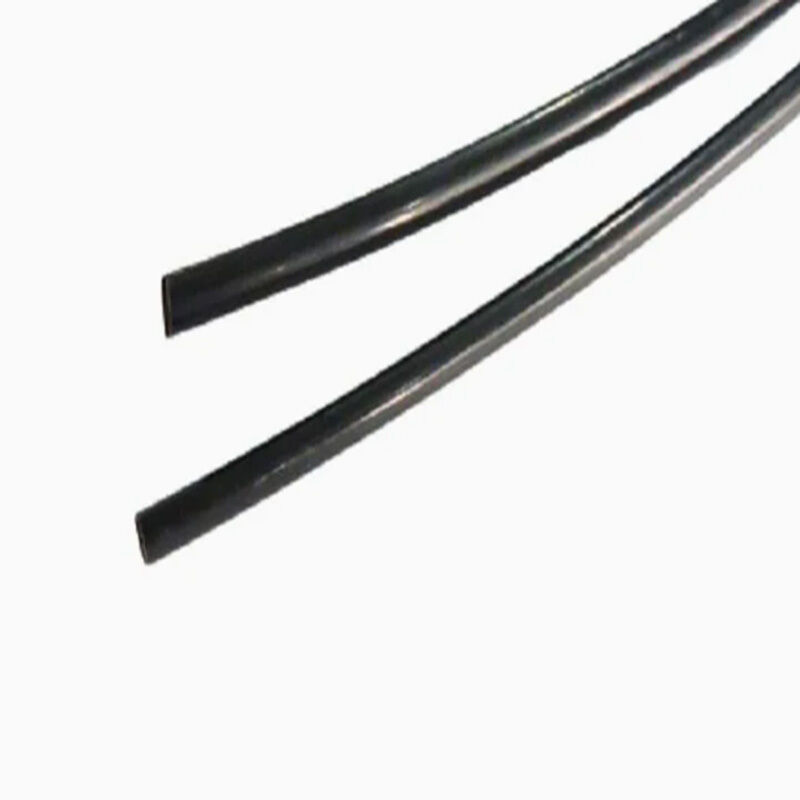

Made from modified polyvinylidene fluoride, it can be used long-term at high temperatures and is wear-resistant, cut resistant and resistant tomost olls and chemicals. Widely used for protecting welding points, terminals, and connection lines exposed to high temperature, industrilal fuels,
solvents, and chemical reagents.
Color Remarks: Custom sizes and colors are available upon customer request.
Standard Colors:
Black, Transparent
Shelf Life and Storage
Store at -10°C to 40°C with relative humidity less than 75%, and has a shelf life exceeding five years.
Performance characteristics
| Operating Temperature: -55°C to 175°C | Voltage Rating: 600V |
| Compliant with SAE-AMS-DTL 23053/8 | High flame retardancy |
| Hard type | Shrinkage ratio 2:1 |
| RoHS Certification | Safety Certification: UL224 WW-1 E249362 |
|
Performance Item |
Test Method |
Specification Requirement |
|
Tensile strength (MPa) |
ASTM D 2671 |
34.5MPa(Min) |
|
Elongation at Break (%) |
ASTM D 2671 |
150％(Min) |
|
Heat Aging (250°C/168hours) Elongation at Break |
UL 224 |
50％(Min) |
|
Heat Shock (300°C/4 hours) |
ASTM D 2671 |
No cracking, no dripping |
|
Dielectric Strength |
ASTM D 2671 |
25KV/mm(Min) |
|
Volume Resistivity |
ASTM D 2671 |
10¹⁴Ω(Min) |
|
Cold Bend(-40℃/4hours) |
ASTM D 2671 |
No cracking |
|
Flame Retardancy |
UL 224,vw-1 |
pass |
| Inch | Available Sizes (mm) | Dimensions After Shrinkage(mm) | |
| D*(Min) | d*(Max) | w*(Min) | |
| 3/64 | 1.2 | 0.6 | 0.20 |
| 1/16 | 1.6 | 0.8 | 0.20 |
| 3/32 | 2.4 | 1.2 | 0.23 |
| 1/8 | 3.2 | 1.6 | 0.23 |
| 3/16 | 4.8 | 2.4 | 0.23 |
| 1/4 | 6.4 | 3.2 | 0.23 |
| 3/8 | 9.5 | 4.8 | 0.28 |
| 1/2 | 12.7 | 6.4 | 0.32 |
| 3/4 | 19.1 | 9.5 | 0.36 |
| 1 | 25.4 | 12.7 | 0.41 |
D*=Inner Diameter Before Supply d*= Inner Diameter After Shrinkage
w*=Wall Thickness After Shrinkage
Remarks: Custom sizes and colors are available upon customer request.
