2:1 PVDF Heat Shrink Tubing 175 Degree High Temperature Insulated Heat Shrink Tubing

2:1 PVDF Heat Shrink Tubing

175 Degree Insulated Heat Shrink Tubing

2:1 Insulated Heat Shrink Tubing

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS2.0

Chat Now

Request A Quote

Product Details

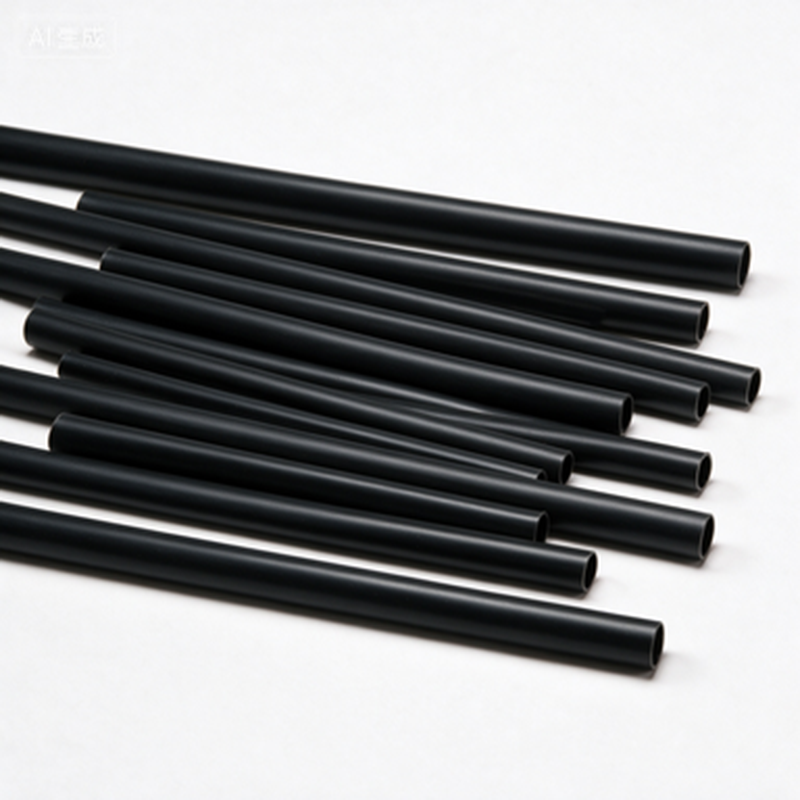

Color:

Black And Clear

Voltagerating:

600V

Shrinkratio:

2:1

Material:

Polyvinylidene Fluoride (PVDF)

Operatingtemperaturerange:

-55°C To 175°C

Maximumoperatingtemperature:

175°C

Highlight:

2:1 PVDF Heat Shrink Tubing

175 Degree Insulated Heat Shrink Tubing

2:1 Insulated Heat Shrink Tubing

Payment & Shipping Terms

Minimum Order Quantity

200M

Price

0.12-0.3usd/M

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5 work days

Payment Terms

T/T

Supply Ability

8 million M /year

PVDF Heat Shrink Tubing 175°C High Temperature 2: 1 Shrink Ratio Insulating Sleeve

Product Introduction

        Structure :

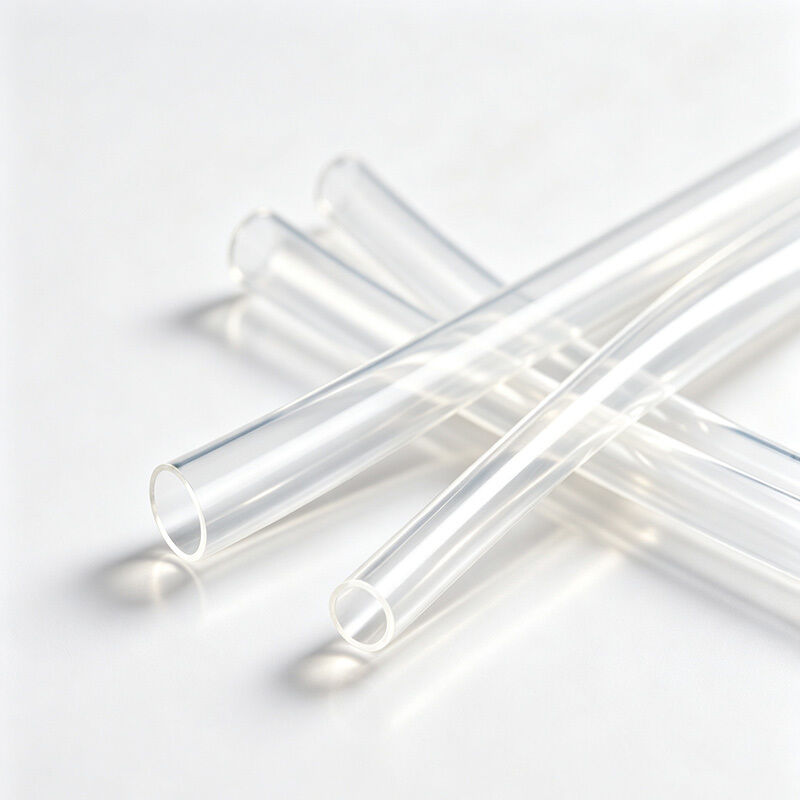

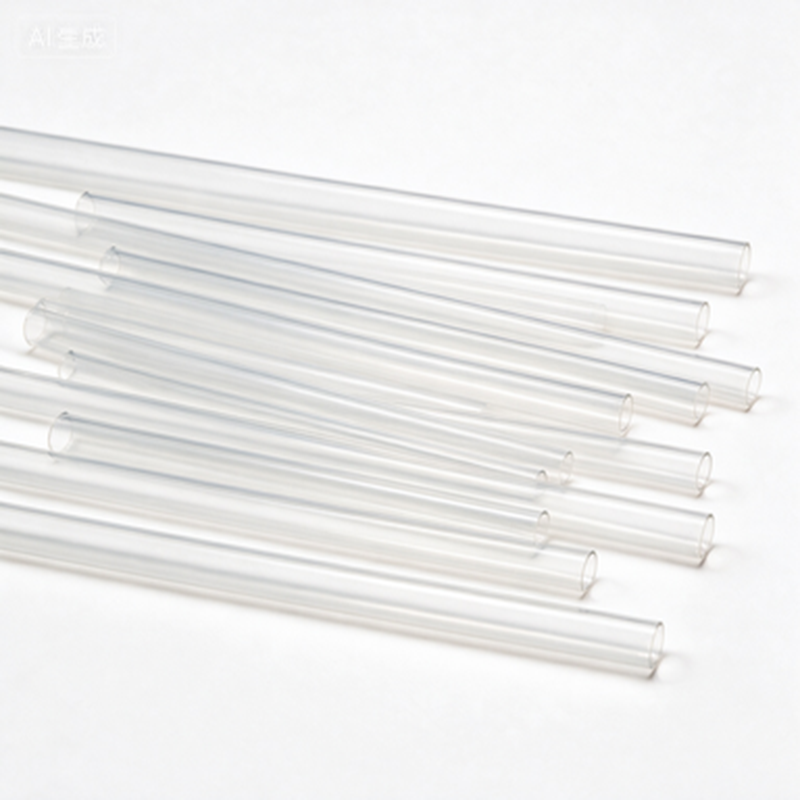

         This transparent thin-wall PVDF heat shrink tubing is made of modified PVDF resin via extrusion and cross-linking irradiation processing.
Semi-rigid, thin-wall, transparent PVDF heat shrink tubing, featuring excellent high temperature resistance, abrasion resistance,
cut-through resistance and chemical solvent resistance, compliant with RoHS & UL224.

Application:

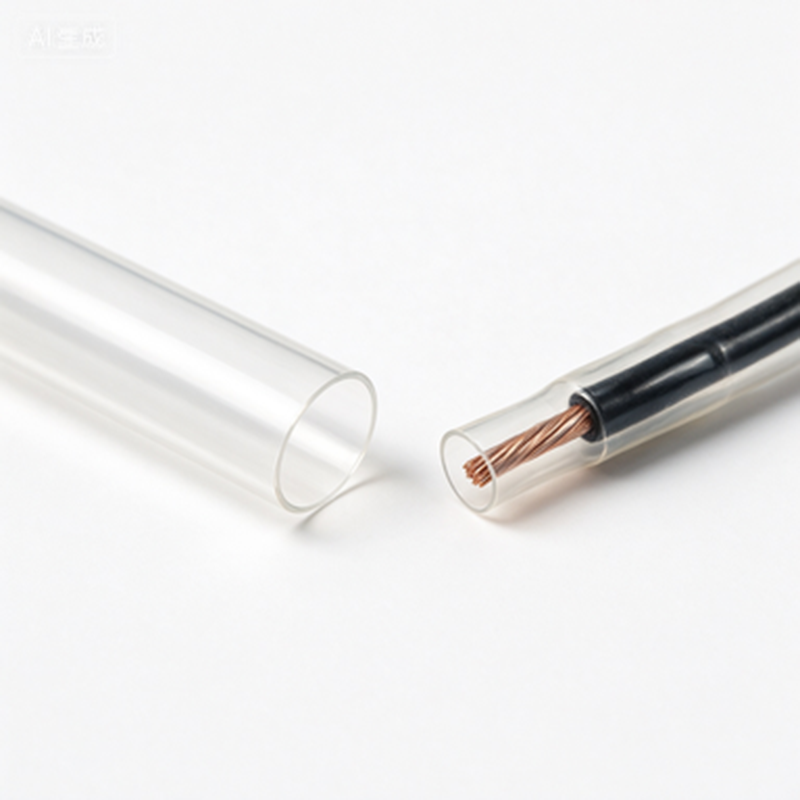

This sleeving features excellent dielectric strength, flexibility and flame retardancy for superior overall performance. It is widely applied to fully/partially insulated wires, busbars, component leads and other electrical component assemblies.

Poduct Specification

Item	Specification
Material & Structure	Made of modified PVDF resin, processed by extrusion molding and electron beam cross-linking, with semi-rigid thin-wall transparent structure
Temperature Resistance	Continuous operating temperature: -40℃ ~ 175℃; Short-term peak temperature: 200℃
Shrink Performance	Onset shrink temperature: ≥150℃;Full recovery temperature: ≥175℃
Compliance & Certification	Compliant with RoHS, UL224, REACH standards
Compliant with RoHS, UL224, REACH standards	Excellent abrasion resistance, cut-through resistance and chemical solvent resistance;

Product Dimensions

Size	As Supplied (mm)	After Recovery(mm)		Tube shape	Standard Package
mm	Min I.D.	Max I.D.	Total W.T.		Standard Package
mm	Min I.D.	Max I.D.	Total W.T.		m/spool
Φ1.2	≥1.2	≤0.6	0.25±0.10	Round	200
Φ1.6	≥1.6	≤0.8	0.25±0.10	Round	200
Φ2.4	≥2.4	≤1.2	0.25±0.10	Round	200
Φ3.2	≥3.2	≤1.6	0.25±0.10	Round	100
Φ4.8	≥4.8	≤2.4	0.25±0.10	Round	100
Φ6.4	≥6.4	≤3.2	0.30±0.10	Round	100
Φ9.5	≥9.5	≤4.8	0.30±0.10	Flat	50
Φ12.7	≥12.7	≤6.4	0.30±0.10	Flat	50
Φ15.9	≥15.0	≤7.9	0.43±0.12	Flat	50
Φ19.1	≥19.1	≤9.5	0.43±0.12	Flat	50
Φ25.4	≥25.4	≤12.7	0.48±0.12	Flat	50
Φ38.1	≥38.1	≤19	0.51±0.12	Flat	50

Remarks:Custom printing of various patterns and text fonts is available upon request.

Company Advantages
1. Direct factory with independent production, cost-effective and on-time delivery.
2. Full range of wiring harness sleeves, one-stop procurement.
3. Support customization: size, color, logo and special formulas available.
4. Reliable quality, compliant with UL, RoHS, REACH and other international standards.
5. Professional foreign trade service, support OEM/ODM, flexible for small and large orders.
