Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQI
Certification:
ROHS2.0

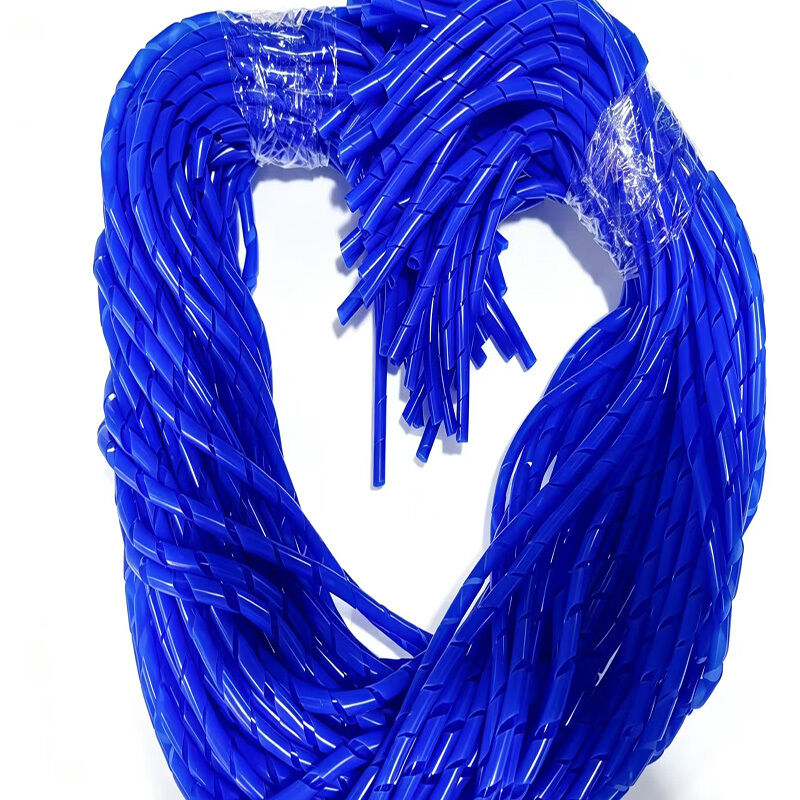

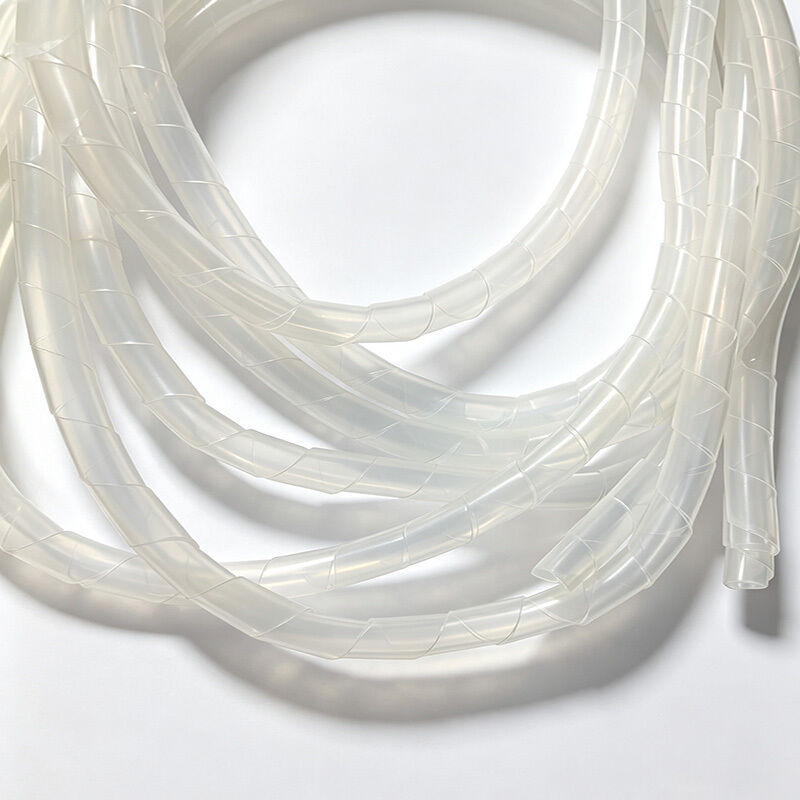

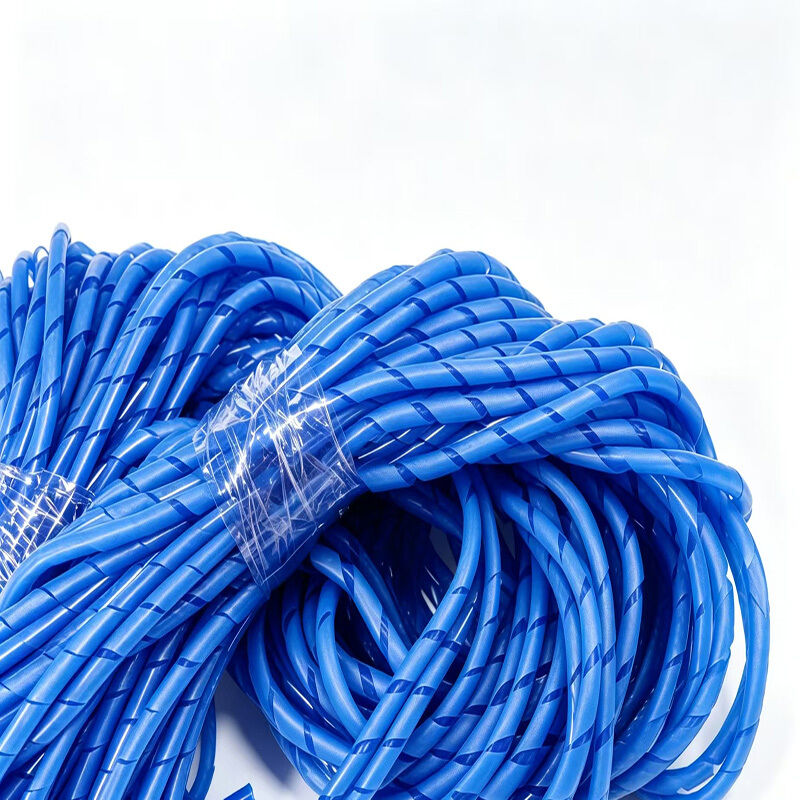

Flexible sleeve extruded from silicone rubber with spiral split structure. No wire disassembly or heating required; it can be directly spirally wrapped around wire harnesses and cables to integrate wire organizing, insulation, abrasion resistance and high-temperature protection functions.
Manufactured through deep processing, this product features outstanding high temperature resistance and high voltage resistance. The silicone spiral wrap is specially developed for insulation, protection and coating of electronic components with special requirements, and is widely used in electrical appliances, lighting equipment, medical devices and other fields. Its biggest advantage over other sleeves is that it can withstand temperatures up to 200℃
Product Specifications Engineering Picture of Sleeving
|
Performance |
Standard Type |
Performance |
Standard Type |
|
Tensile StrengthMPa(Kg/cm2) |
6.9(7.0) |
Hardness Shore A |
70 |
|
Elongation at Break％ |
300 |
Insulation Voltage |
16kv/mm |
|
Tear Strength kN/m(kg f/cm) |
14.5(15) |
Tensile Strength MPA |
79 |
|
Volume Resistivity(Ω ·cm) |
2×1012(2×1014) |
Specific Gravity |
1.25g/cm³ |
|
Dielectric Strength KV/mm |
25 |
Operating Temperature Range℃ |
-50℃~+200℃ |
|
Dielectric Constant (ε) 50Hz |
3.2 |
Flame Retardancy UL-94 |
/ |
|
Dissipation Factor 50Hz |
0.001 |
|
|
Open spiral design, install without disconnecting cables, retrofitting available for finished wiring
✅ Cables can branch out at any position, convenient for wiring maintenance
✅ High flexibility, allows free bending & movement of harness
✅ Excellent abrasion resistance, anti-oil, anti-UV, suitable for harsh working conditions
✅ Reusable structure, lower comprehensive cost than one-time sleeves
✅ Organize messy cables, prevent tangling; multiple colors optional for identification
|
Inner diameter(ID) |
Outer Diameter(OD) |
Wall Thickness (T) |
Spiral Pitch (W) |
|||
|
2.0mm |
±0.2 |
4.0mm |
±0.2 |
1.0mm |
±0.1 |
6-9mm |
|
3.0mm |
±0.2 |
5.0mm |
±0.2 |
1.0mm |
±0.1 |
6-9mm |
|
4.0mm |
±0.2 |
6.0mm |
±0.2 |
1.0mm |
±0.1 |
6-9mm |
|
6.0mm |
±0.2 |
8.0mm |
±0.2 |
1.0mm |
±0.1 |
6-9mm |
|
8.0mm |
±0.2 |
10.0mm |
±0.2 |
1.0mm |
±0.1 |
6-9mm |
Remark:
1. Standard White, Special Colors available on request
2. Other sizes are available upon special order
