Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0

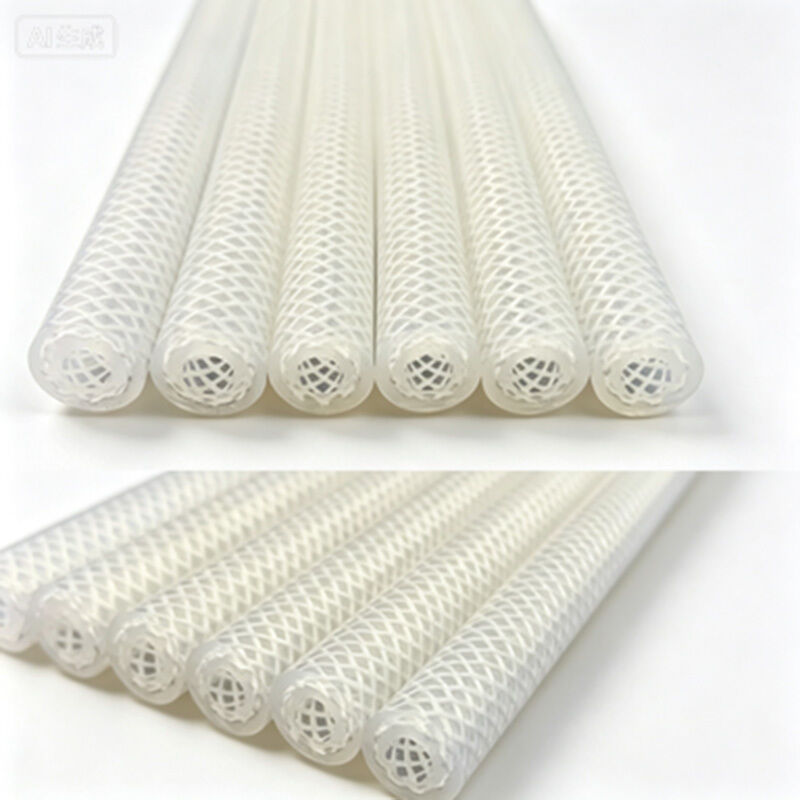

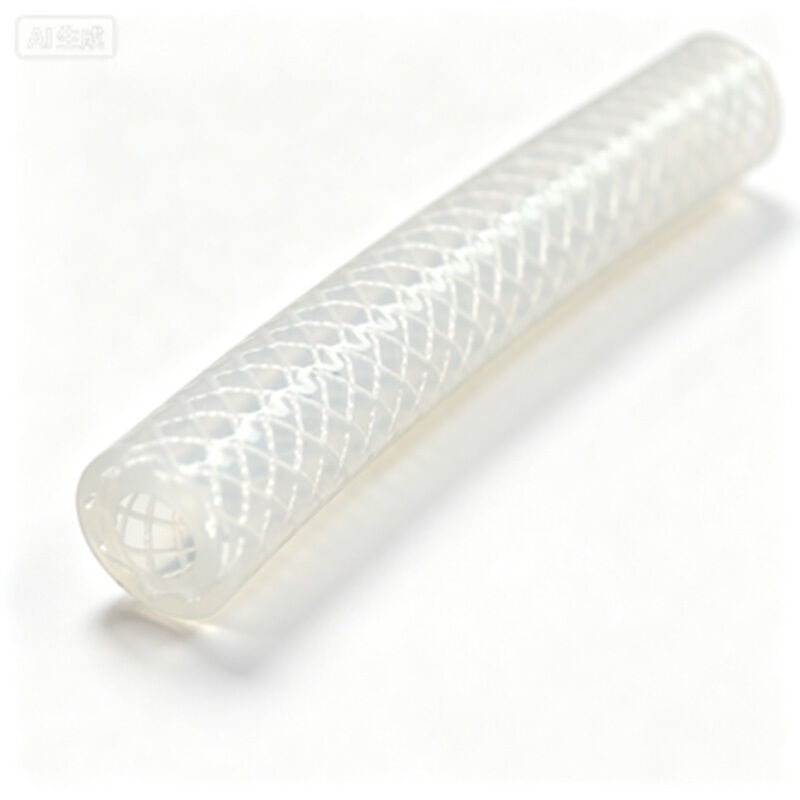

Silicone braided hose is a kind of tubing with excellent pressure‑resistant, negative‑pressure‑resistant and anti‑breakage properties. Various braiding filaments are available, including fiber filament, nylon filament, thermal‑conductive filament and stainless steel wire.
The pressure resistance of the finished product varies with different braiding materials.
Currently, fiber yarn is the mainstream braiding material in the market. It is widely used for coffee machines, silicone braided hoses, air compressors, oxygen concentrators and other industries.
Its manufacturing process is roughly the same as the extrusion process for food‑grade silicone tubing, with an additional braiding procedure
|
Performance Item |
Test Method |
Conditions |
Measured Value |
|
Tensile strength (MPa) |
UL 224 |
23°C |
≥6.9mpa |
|
Elongation at Break (%) |
UL 224 |
23°C |
≥400 |
|
Working temperature |
|||
|
Operating temperature |
--- |
-50°C~200°C |
--- |
|
Temperature Rating |
UL 224 |
-50°C(1H) 200°C(1H) |
No cracking, |
|
Flame retardant performance |
UL 224 |
w-1 |
--- |
|
Flame retardant performance |
--- |
Non-flame Retardant |
--- |
| Eletrical Performance | |||
|
Flame Retardancy |
UL 224 |
600V Rating (V/min) |
1800V for 1 minute without breakdown |
|
Breakdown Strength |
UL224 |
23°C(KV/MM) |
≥20KV/MM |
|
Volumle Rsistivity |
UL224 |
23℃(Ω.cm) |
≥1×10¹⁴ |
|
Resistant to water pressure |
--- |
21℃ |
15kg=1.5mpa |
Product Dimensions
| Dimension |
Outer Diameter (mm) |
Inside Diameter(mm) | Wall Thickness(mm) | Packing |
| Φ3.0 | 7±0.3 | 3±0.2 | 2±0.2 | 50m/roll |
| Φ4.0 | 10±0.3 | 4±2 | 3±0.2 | 50m/roll |
| Φ5.0 | 11±0.3 | 5±0.2 | 3±0.2 | 50m/roll |
| Φ6.0 | 12±0.3 | 6±0.2 | 3±0.2 | 50m/roll |
| Φ8.0 | 14±0.3 | 8±0.2 | 6±0.2 | 50m/roll |
| Φ9.0 | 15±0.3 | 9±0.2 | 6±0.2 | 50m/roll |
| Φ10.0 | 17±0.3 | 10±0.2 | 3.5±0.2 | 50m/roll |
| Φ12.0 | 20±0.3 | 12±0.2 | 4±0.2 | 50m/roll |
| Φ15.0 | 23±0.3 | 15±0.2 | 4±0.2 | 50m/roll |
| Φ16.0 | 24±0.3 | 16±0.2 | 4±0.2 | 50m/roll |
| Φ19.0 | 28±0.3 | 19±0.2 | 4.5±0.3 | 50m/roll |
| Φ20.0 | 30±0.3 | 20±0.2 | 5±0.3 | 50m/roll |
| Φ25.0 | 35±0.3 | 25±0.2 | 5±0.3 | 50m/roll |
| Φ30.0 | 40±0.3 | 30±0.2 | 5±0.3 | 50m/roll |
| Φ35.0 | 47±0.3 | 35±0.2 | 6±0.3 | 50m/roll |
Remarks: Custom sizes and colors are available upon customer request.
