Name: Braided Self Wrapping Sleeve Wear Resistant Braided Cable Sleeve RoHS Compliant
Brand: Shenzhen Xingqi Plastic Products Co., Ltd.
SKU: XQZJ
Price: Negotiable USD
Availability: InStock

Home > Products > Self Wrapping Sleeve >

Braided Self Wrapping Sleeve Wear Resistant Braided Cable Sleeve RoHS Compliant

Braided Self Wrapping Sleeve

Wear Resistant Braided Cable Sleeve

Braided Cable Sleeve RoHS Compliant

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS

Model Number:

XQZJ

Chat Now

Request A Quote

Product Details

Name:

White Self-closing Braided Sleeve

Color:

Black

Overlap Rate:

25%

Material:

PET Monofilament + Fiber

Operating Temperature:

-40℃ ~ +150℃

Highlight:

Braided Self Wrapping Sleeve

Wear Resistant Braided Cable Sleeve

Braided Cable Sleeve RoHS Compliant

Payment & Shipping Terms

Minimum Order Quantity

200M

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5work days

Payment Terms

T/T

Product Introduction

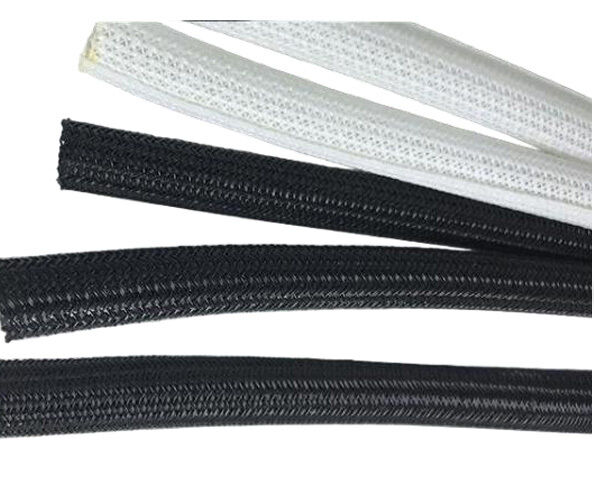

Manufactured from polyester multifilament and polyester monofilament via single-spindle warp-weft braiding machines.

Compliant with RoHS, REACH, halogen-free and other environmental certifications.

Rigid yet lightweight, it features an open self-wrapping structure, delivering excellent wear resistance, heat dissipation and cable organizing performance.

Product Features

Item	Parameter
Material	PET monofilament + fiber
Operating Temperature	-40℃ ~ +150℃
Melting Point	240±10℃
Flame Retardant Rating	Complies with UL94 V-2
Color	Black
Overlap Rate	25%
Certifications	RoHS2.0
Application	Widely used for bundling and protection of wire harnesses in automotive, high-speed rail, communication, medical, industrial equipment and other industries

Product Dimensions

model	Inner Diameter(in)		Pack
XQZJ-003	Φ3	Φ4	100m/roll
XQZJ-005	Φ5	Φ6	100 m/roll
XQZJ-008	Φ8	Φ9	100 m/roll
XQZJ-010	Φ10	Φ11	100 m/roll
XQZJ-013	Φ13	Φ14	100 m/roll
XQZJ-016	Φ16	Φ17	100 m/roll
XQZJ-019	Φ19	Φ20	50 m/roll
XQZJ-025	Φ25	Φ26	25 m/roll
XQZJ-029	Φ29	Φ30	25 m/roll
XQZJ-032	Φ32	Φ34	25 m/roll
XQZJ-038	Φ38	Φ40	25 m/roll
XQZJ-050	Φ50	Φ52	25 m/roll

Product Advantages

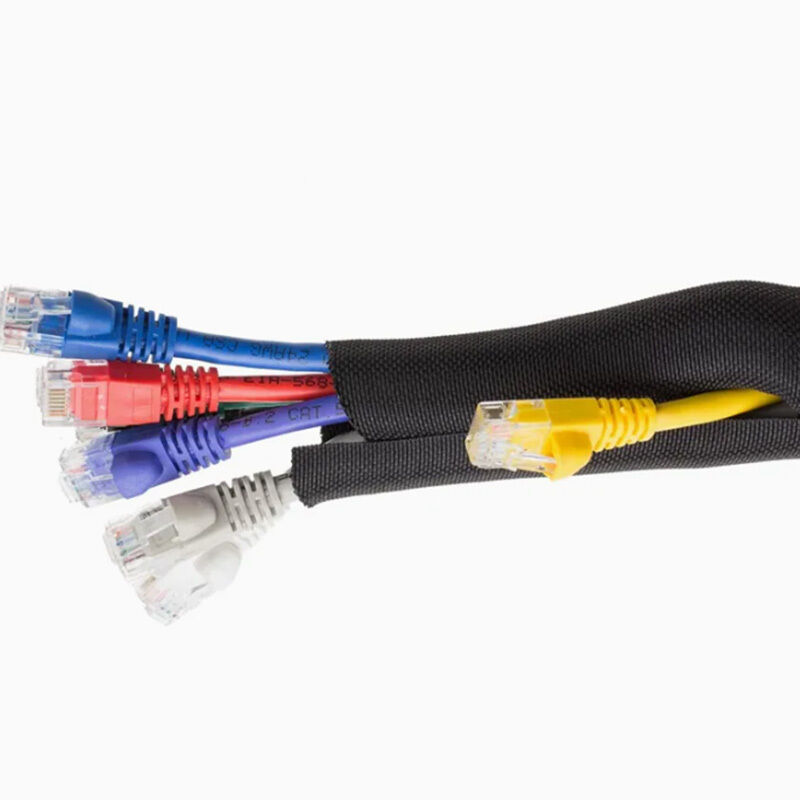

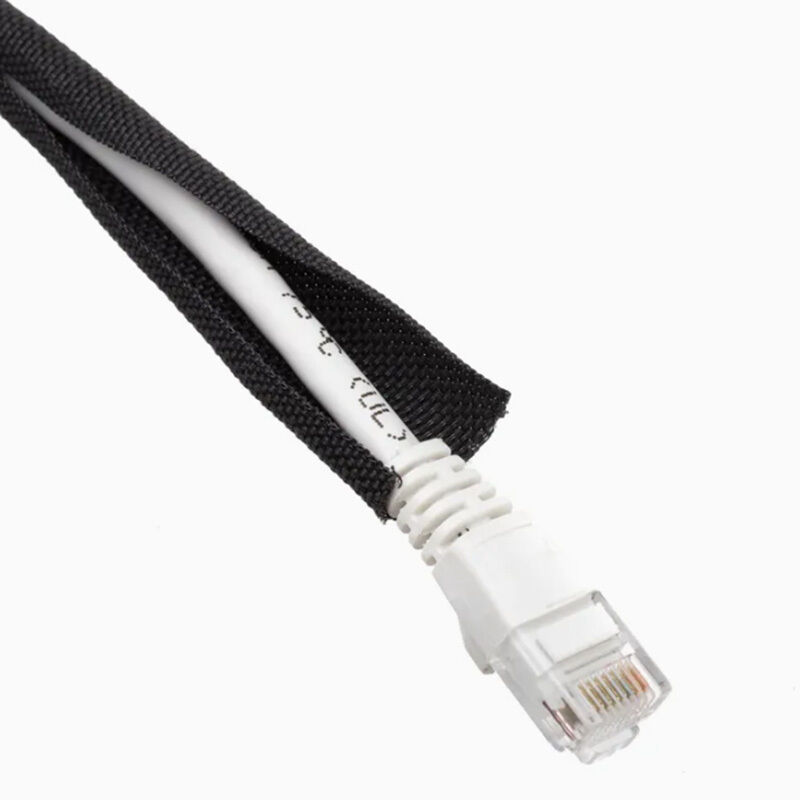

Features convenient side‑opening structure for quick installation without disconnecting existing cables. Its self‑closing braided design can automatically wrap tightly around wire harnesses with good memory resilience.

Made of high‑quality PET monofilament, it offers outstanding abrasion resistance, anti‑fray performance and great flexibility. Neat white appearance, halogen‑free and RoHS compliant. Ideal for organizing and protecting automotive, industrial and electronic wiring harnesses.

Remarks: Custom sizes and colors are available upon customer request.
1. Inner diameter refers to the round diameter of the sleeve, not the flat width.
2. Special packaging, special colors, etc. can be customized according to customer requirements.
3. For detailed product parameters, please refer to the samples.
