Name: Lightweight Self Wrapping Braided Sleeving Flame Retardant PET Braided Sleeve Halogen Free
Brand: Shenzhen Xingqi Plastic Products Co., Ltd.
SKU: XQZJ
Price: Negotiable USD
Availability: InStock

Home > Products > Self Wrapping Sleeve >

Lightweight Self Wrapping Braided Sleeving Flame Retardant PET Braided Sleeve Halogen Free

Lightweight Self Wrapping Braided Sleeving

Flame Retardant PET Braided Sleeve

PET Braided Sleeve Halogen Free

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS 2.0

Model Number:

XQZJ

Chat Now

Request A Quote

Product Details

Name:

Self-Wrapping Lightweight Sleeve

Color:

Black

Overlap Rate:

50％

Material:

PET Mono & Polyester Fiber

Operating Temperature:

-40℃ ~ +150℃

Highlight:

Lightweight Self Wrapping Braided Sleeving

Flame Retardant PET Braided Sleeve

PET Braided Sleeve Halogen Free

Payment & Shipping Terms

Minimum Order Quantity

200M

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5work days

Payment Terms

T/T

Product Introduction

This product is precisely woven on warp‑weaving looms with high‑performance polyester multifilament and polyester monofilament. The interwoven structure is stable and uniform, with adjustable weaving density to meet diverse cable harness protection requirements.

It fully complies with EU environmental standards and has obtained multiple environmental certifications including RoHS, REACH and halogen‑free. Free of hazardous substances, it is suitable for export‑oriented applications such as electronic appliances, automotive wiring harnesses and industrial control equipment.

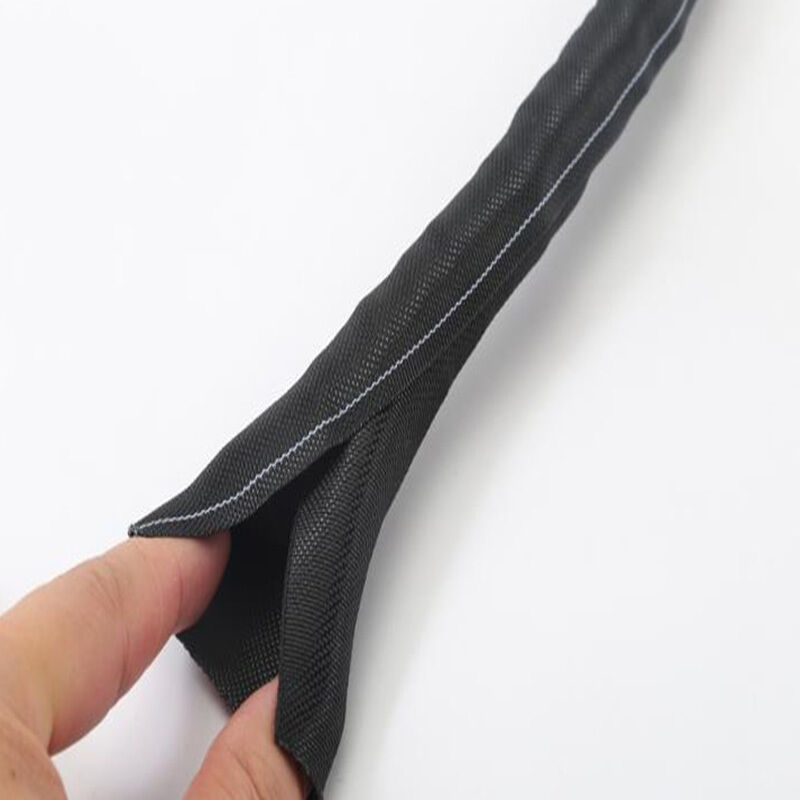

Featuring soft‑flexible texture and lightweight property, it will not add extra burden to wire harnesses. Adopting a special open self‑wrapping structure, it enables quick installation without disassembling existing cables. Simply wrap it around the harness for assembly, and easy for later inspection and disassembly.

Product Features

Item	Parameter
Material	PET mono & polyester fiber
Operating Temperature	-40℃ ~ +150℃
Melting Point	240±10℃
Flame Retardant Rating	Complies with UL94 V-1
Color	black
Overlap Rate	25%
Certifications	RoHS2.0

Product Dimensions

model	Inner Diameter(in)		Pack
XQSCSY-003	Φ3	Φ4	100m/roll
XQSCSY-005	Φ5	Φ6	100 m/roll
XQSCSY-008	Φ8	Φ9	100 m/roll
XQSCSY-010	Φ10	Φ11	100 m/roll
XQSCSY-013	Φ13	Φ14	100 m/roll
XQSCSY-016	Φ16	Φ17	100 m/roll
XQSCSY-019	Φ19	Φ20	50 m/roll
XQSCSY-025	Φ25	Φ26	25 m/roll
XQSCSY-029	Φ29	Φ30	25 m/roll
XQSCSY-032	Φ32	Φ34	25 m/roll
XQSCSY-038	Φ38	Φ40	25 m/roll
XQSCSY-050	Φ50	Φ52	25 m/roll

Product Advantages

Easy installation
Open self‑wrapping design, can be fitted onto finished wire harnesses without disconnecting connectors, convenient for retrofitting and maintenance.
Lightweight & high flexibility
Thin braided structure, adds little bulk to cables, bends freely for tight routing spaces.
Excellent cable protection
Resists abrasion and friction damage, protects wires from wear in automotive and equipment applications.
Time‑saving assembly
No adhesive tape or extra fasteners required; the sleeve wraps itself around cables automatically.
Neat harness management
Creates tidy cable bundling, improves overall wiring appearance

Remarks: Custom sizes and colors are available upon customer request.
