Home > Products > Self Wrapping Sleeve >

Impact Resistant Cable Protection Sleeve Abrasion Resistant Automotive Wire Sleeve Wear Resistant

Impact Resistant Cable Protection Sleeve

Abrasion Resistant Automotive Wire Sleeve

Automotive Wire Sleeve Wear Resistant

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS 2.0

Chat Now

Request A Quote

Product Details

Name:

Impact‑Resistant Self‑Wrapping Sleeve

Overlap Rate:

25%

Certifications:

RoHS 2.0

Material:

PET Monofilament + Polyester Fiber

Abrasion Resistance:

100,000 Cycles, Compliant With Level 7

Highlight:

Impact Resistant Cable Protection Sleeve

Abrasion Resistant Automotive Wire Sleeve

Automotive Wire Sleeve Wear Resistant

Payment & Shipping Terms

Minimum Order Quantity

200M

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5work days

Payment Terms

T/T

Product Introduction

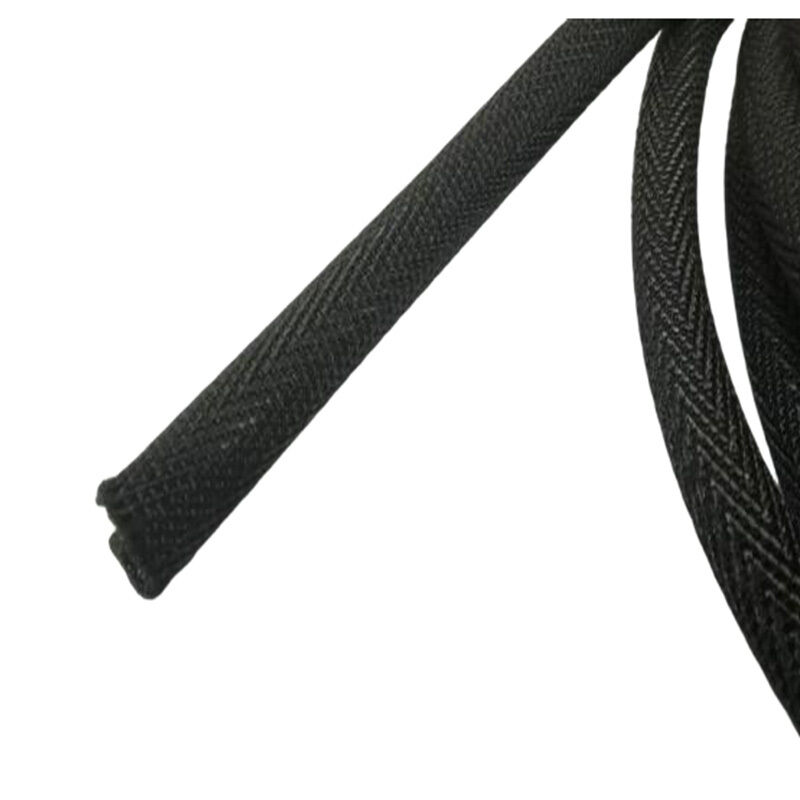

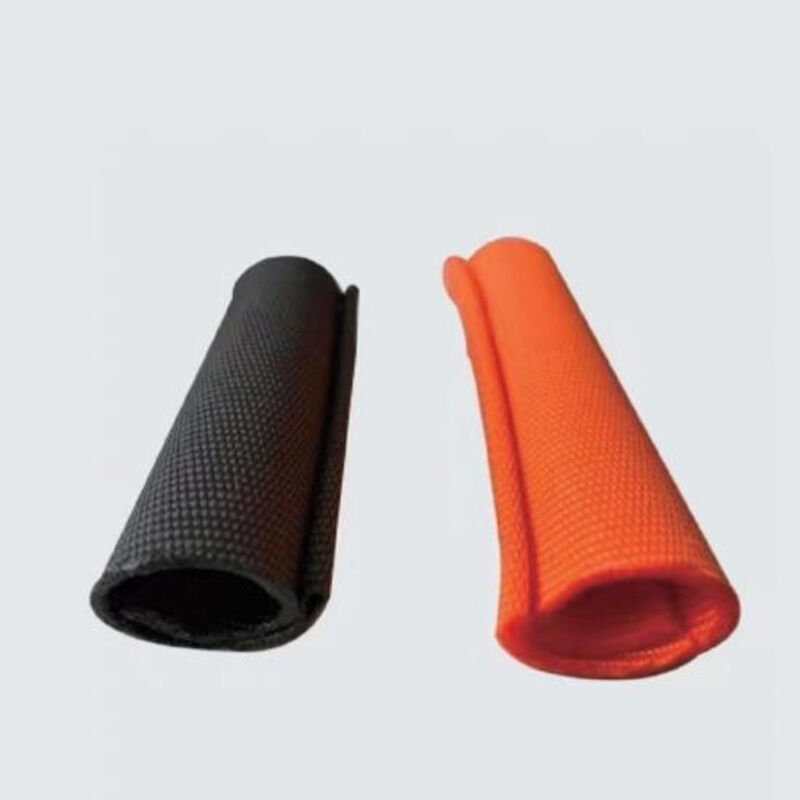

This sleeve is woven from a blend of polyester multifilament and polyester monofilament. Leveraging the respective advantages of both yarns, it retains the soft conformability of multifilament fabric while utilizing the high‑rigidity property of polyester monofilament. It delivers excellent cushioning and impact‑resistant protection for cables and pipelines, effectively avoiding damages resulting from gravel abrasion, collision and external squeezing.

Featuring outstanding wear resistance and superior impact performance, it resists repeated frictional wear for an extended service life. Adopting a side‑opening self‑wrapping structure, it can be directly wrapped around finished wire harnesses and hoses without cutting cables or removing existing components. It greatly simplifies assembly procedures and enables convenient inspection and maintenance at later stages.

It is widely applied in new‑energy vehicle scenarios for outer‑layer wear and impact protection of automotive wire harnesses and various hydraulic hoses, mitigating failure risks including harness insulation abrasion and outer‑wall scratches on hoses.

Product Features
● Overlap Rate: 25%
● Certifications: RoHS2.0, REACH,  ISO9001
● Abrasion resistance: 100,000 cycles, compliant with Level 7
      Description:
      Woven from a blend of polyester multifilament and polyester monofilament with
 double‑layer construction, this sleeve delivers outstanding impact‑resistant protection for cables, featuring ultra‑high wear resistance and impact performance.
      Adopting side‑opening self‑closing wrap‑around structure, it enables easy installation and subsequent maintenance.
     Widely used for wear‑resistant and protective applications on new‑energy vehicle wire harnesses and hoses.

Product Dimensions

Model	Inner Diameter(ID)	Outer Diameter (OD)	Max Wire Harness Diameter	Packing
XQ-009	φ8	10±0.2mm	φ9	Customized per request
XQ-12	φ10	12±0.2mm	φ11	Customized per request
XQ-14	φ13	15±0.2mm	φ13	Customized per request
XQ-16	φ16	17±0.2 mm	φ17	Customized per request
XQ-18	φ19	21±0.2 mm	φ20	Customized per request
XQ-22	φ25	31±0.1 mm	φ25	Customized per request
XQ-25	φ29	28.7±0.5 mm	φ30	Customized per request
XQ-28	φ32	34±0.2mm	φ34	Customized per request
XQ-32	φ38	40±0.2mm	φ40	Customized per request

Remarks: Custom sizes and colors are available upon customer request.
