Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0

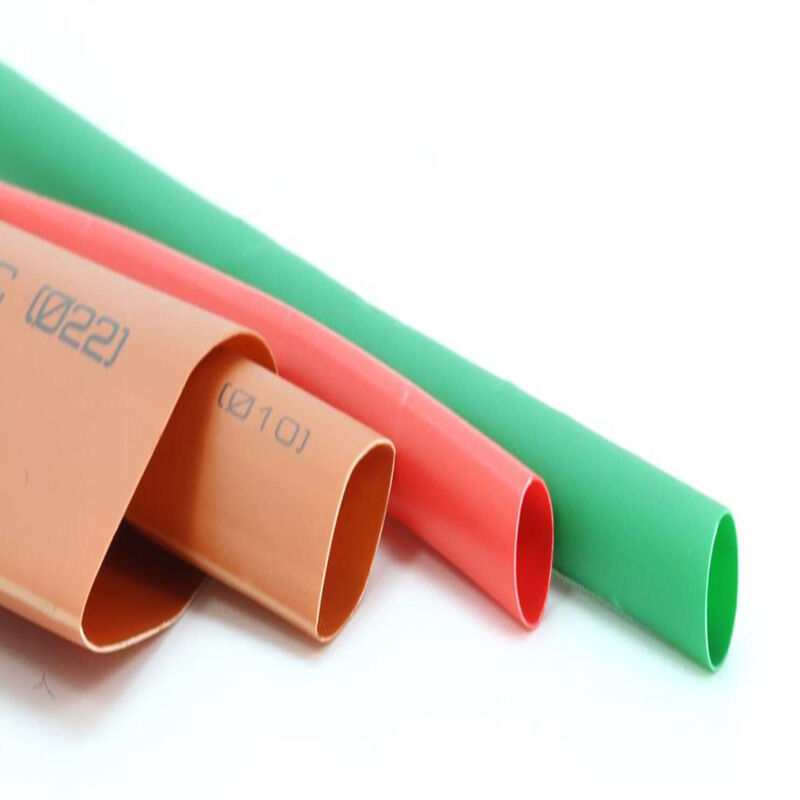

Heat Shrink Tubing for Condenser and Evaporator
● Shrink ratio: 2:1
● Start shrink temperature: ≥ +84℃
● Full recovery temperature: ≥ +115℃
●Operating temperature: -55℃ ~ +105℃
● Compliance: RoHS2.0
● Standard colors: Black, Red, Yellow, Blue, White ,Gray,Green(other colors available upon request)
| Property | Test Method | Requirement |
|---|---|---|
| Tensile Strength (MPa) | ASTM D 2671 | ≥10.4 |
| Elongation at Break (%) | ASTM D 2671 | ≥200 |
| Tensile Strength after Aging (MPa) | UL224 (136℃×168h) | ≥7.3 |
| Elongation at Break after Aging (%) | UL224 (136℃×168h) | ≥100 |
| Cold Bend Flexibility (300V) | UL224 (-30℃×1h) | No Cracking |
| Longitudinal Change (%) | 200℃×3min | -4 ~ +8 |
| Size | Supplied ID (mm) | Fully‑recovered Dimension‑ID (mm) | Fully‑recovered Dimension‑Wall Thickness (mm) | Standard Packaging (Meter/Roll) |
|---|---|---|---|---|
| Φ3.00/1.50 | 3.50±0.20 | ≤1.50 | 0.40±0.10 | 200 |
| Φ3.50/1.80 | 4.00±0.20 | ≤1.80 | 0.40±0.10 | 200 |
| Φ4.00/2.00 | 4.70±0.20 | ≤2.00 | 0.40±0.10 | 200 |
| Φ4.05/2.30 | 5.00±0.20 | ≤2.30 | 0.40±0.10 | 100 |
| Φ5.00/2.50 | 5.50±0.20 | ≤2.50 | 0.40±0.10 | 100 |
| Φ5.50/2.75 | 6.00±0.20 | ≤2.75 | 0.40±0.10 | 100 |
| Φ6.00/3.00 | 6.50±0.20 | ≤3.00 | 0.40±0.10 | 100 |
| Φ7.00/3.50 | 7.50±0.30 | ≤3.50 | 0.40±0.10 | 100 |
| Φ8.00/4.00 | 8.50±0.30 | ≤4.00 | 0.48±0.10 | 100 |
| Φ9.00/4.50 | 9.50±0.30 | ≤4.50 | 0.50±0.10 | 100 |
| Φ10.00/5.00 | 10.50±0.30 | ≤5.00 | 0.50±0.10 | 100 |
| Φ10.00/5.50 | 11.50±0.30 | ≤5.50 | 0.95±0.10 | 100 |
| Φ12.00/6.00 | 12.50±0.30 | ≤6.00 | 0.50±0.10 | 100 |
| Φ14.00/7.00 | 14.50±0.30 | ≤7.00 | 0.50±0.10 | 100 |
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
Remarks: Custom sizes and colors are available upon customer request.
Send your inquiry directly to us
