Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0

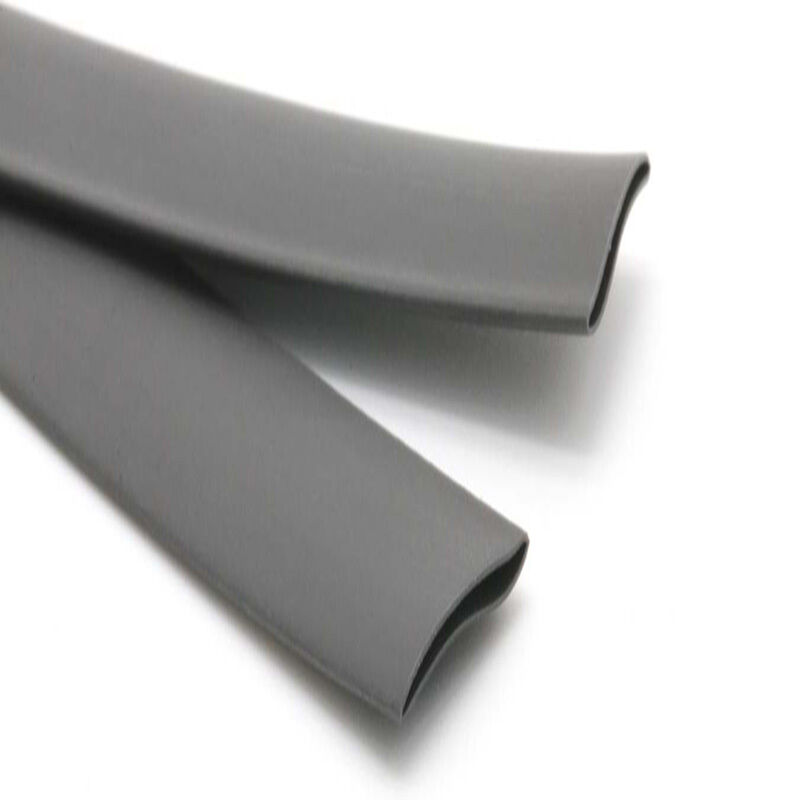

Magnetic heat‑shrink sleeves are produced with high‑quality polymer base materials. Functional magnetic fillers are mechanically blended into the matrix under scientific formulation to form special‑purpose polymer alloy. After tube forming, the material undergoes electron‑beam irradiation cross‑linking modification by electron accelerator, followed by continuous expansion process.
Apart from fundamental advantages of conventional heat‑shrink tubes such as mechanical protection, electrical insulation and marking identification, it provides outstanding EMC performance. It can effectively suppress electromagnetic interference and greatly improve electromagnetic working performance as well as operational stability of electronic components.
With cost‑effective overall solution, long‑term consistent physical and chemical properties, simple on‑site assembly and uniform heat‑shrinkage for perfect fitting, this product is well‑suited for various electronic components, inductor assemblies and wiring harness modules, and widely adopted in diverse electronic and electrical industries.
● Shrink ratio: 2:1
● Start shrink temperature: ≥ +84℃
● Full recovery temperature: ≥ +120℃
●Operating temperature: -55℃ ~ +125℃
● Compliance: RoHS2.0
● Excellent EMC Performance
● Flexible, Non‑Flame Retardant
● Standard colors: Black(other colors available upon request)
| Performance | Index | Test Method |
|---|---|---|
| Tensile Strength (MPa) | ≥10.4 | ASTM D 2671 |
| Elongation at Break (%) | ≥200 | ASTM D 2671 |
| Tensile Strength after Aging (MPa) | ≥7.3 | 158℃ × 168h |
| Elongation at Break after Aging (%) | ≥100 | 158℃ × 168h |
| Concentricity (%) | ≥70 | UL 224 |
| Cold Bend | No Cracking | UL 224 (-30℃ × 1h) |
| Density (g/cm³) | ≤2.5 | — |
| Water Absorption (%) | ≤0.5 | ASTM D 570 |
| Chemical Properties | ||
| Copper Stability | Pass | UL 224 (158℃ × 168h) |
| Corrosion Resistance | Pass | UL 224 (158℃ × 168h) |
| Electrical Properties | ||
| Volume Resistivity (Ω·cm) | ≥1×10¹² | IEC 60093 |
| Dielectric Withstand Voltage | 1500V, 1min No Breakdown | UL 224 |
| Operating Frequency | 1K~500 KHz | — |
| Inductance Increase Rate (%) | ≥10% | — |
| Size | Supplied I.D. (mm) | Fully‑shrunk I.D. (mm) | Fully‑shrunk Wall Thickness (mm) | Standard Packaging (Meters/Roll) |
|---|---|---|---|---|
| Φ4.0 | 4.70±0.40 | ≤2.0 | 0.45±0.10 | 200 |
| Φ5.0 | 5.50±0.40 | ≤2.5 | 0.55±0.10 | 100 |
| Φ6.0 | 6.50±0.40 | ≤3.0 | 0.55±0.10 | 100 |
| Φ8.0 | 8.50±0.50 | ≤4.0 | 0.60±0.10 | 100 |
| Φ10.0 | 10.50±0.50 | ≤5.0 | 0.60±0.10 | 100 |
| Φ12.0 | 12.50±0.50 | ≤6.0 | 0.60±0.10 | 100 |
| Φ14.0 | 14.50±0.50 | ≤7.0 | 0.65±0.10 | 100 |
Note: Sizes smaller than Φ4 or larger than Φ14 are non‑standard sleeves, manufactured per order requirements.
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
Remarks: Custom sizes and colors are available upon customer request.
