Outdoor Medium Voltage Cable Termination 35kV Cold Shrink Termination Kit UV Resistant

Outdoor Medium Voltage Cable Termination

35kV Cold Shrink Termination Kit

Cold Shrink Termination Kit UV Resistant

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS 2.0

Chat Now

Request A Quote

Product Details

Name:

Cold‑Shrink Outdoor Cable Termination Kit, Single‑Core & 3‑Core MV Power Cables Below 35kV

Compliance:

Long Service Life

Reliability:

Full Accessory Kit Supplied

Installation:

Cold‑shrink, No Open Flame, Easy Fit

Durability:

Anti‑tracking, Anti‑pollution Flashover

Electrical:

Stress‑cone For Uniform Electric Field

Highlight:

Outdoor Medium Voltage Cable Termination

35kV Cold Shrink Termination Kit

Cold Shrink Termination Kit UV Resistant

Payment & Shipping Terms

Cold‑Shrink Outdoor Cable Termination Kit, Single‑Core & 3‑Core MV Power Cables Below 35kV

Product Introduction

This below‑35kV cold‑shrink outdoor cable termination fits single‑core and 3‑core medium‑voltage power cables. Made of high‑performance silicone rubber with integrated stress‑control design, it optimizes electric field distribution. No open‑fire heating is required; it shrinks automatically after removing the core support for tight cable fitting. Featuring good sealing, moisture‑proof and UV‑resistant performance, it adapts to harsh outdoor conditions. Easy to install with stable radial pressure and low partial discharge. Widely applied in power transmission‑distribution and industrial projects to ensure long‑term safe operation of cable terminals.

Product Features

Shelf Life and Storage:

Cold‑shrink terminations / cold‑shrink joints feature long shelf life. They shall be stored in an environment with temperature ranging from ‑10℃ to 40℃ and relative humidity below 75%.

Safe & Reliable: No heating required for shrinkage.

Safe & Stable: Cold‑shrink termination adopts stress cone for electric field control. The cold‑shrink body maintains constant clamping force on cable body for safe and stable long‑term operation.

Time‑saving & Labor‑saving: Simply pull out the internal support tube, the elastic body shrinks quickly onto the installation position, minimizing installation‑caused defects.

Material Properties: LSR material features anti‑fouling, aging resistance, hydrophobicity, hydrophobic‑migration resistance and excellent weather resistance.

Wide Application Range: Suitable for high‑altitude, cold, humid, salt‑spray and heavy‑pollution areas.

Compact Size: Cold‑shrink joint features short structure, effectively reducing cable stripping length.

Test Item	6/10(12)kV	8.7/15(17.5)kV	12/20(24)kV	18/30(36)kV
Partial Discharge Test at Room Temperature	10kV, <5pC	15kV, <5pC	20kV, <5pC	30kV, <5pC
Power Frequency Voltage Test	27kV for 5 minutes	39kV for 5 minutes	54kV for 5 minutes	81kV for 5 minutes
Impulse Voltage Test	75kV, 10 times for each polarity	95kV, 10 times for each polarity	125kV, 10 times for each polarity	170kV, 10 times for each polarity

Selection Table for Cold‑Shrink Cable Terminations (Indoor & Outdoor)

Selection Table for Cold-Shrink Cable Indoor & Outdoor Terminals 6_10(12)kV
Indoor Terminal	Outdoor Terminal	Cable Insulation Outer Diameter (mm)	Cable Cross-Sectional Area (mm²)
XQ-IT-10kV-1	XQ-OT-10kV-1	16.5-19.7	70-95
XQ-IT-10kV-2	XQ-OT-10kV-2	19.7-23.5	120-150
XQ-IT-10kV-3	XQ-OT-10kV-3	22.5-31.3	185-300
XQ-IT-10kV-4	XQ-OT-10kV-4	28.9-38.0	400-630

Selection Table for Cold-Shrink Cable Indoor & Outdoor Terminals 8.7_15(17.5)kV
Indoor Terminal	Outdoor Terminal	Cable Insulation Outer Diameter (mm)	Cable Cross-Sectional Area (mm²)
XQ-IT-17.5kV-1	XQ-OT-17.5kV-1	16.5-19.7	25-50
XQ-IT-17.5kV-2	XQ-OT-17.5kV-2	19.7-23.5	70-120
XQ-IT-17.5kV-3	XQ-OT-17.5kV-3	22.5-31.3	150-300
XQ-IT-17.5kV-4	XQ-OT-17.5kV-4	28.9-38.0	400-500

Selection Table for Cold-Shrink Cable Indoor & Outdoor Terminals 12_20(24)kV
Indoor Terminal	Outdoor Terminal	Cable Insulation Outer Diameter (mm)	Cable Cross-Sectional Area (mm²)
XQ-IT-24kV-1	XQ-OT-24kV-1	19.7-23.5	35-50
XQ-IT-24kV-2	XQ-OT-24kV-2	22.5-31.3	70-150
XQ-IT-24kV-3	XQ-OT-24kV-3	28.9-38.0	185-400
XQ-IT-24kV-4	XQ-OT-24kV-4	38.0-44.1	500-630

Selection Table for Cold-Shrink Cable Indoor & Outdoor Terminals 18_30(36)kV
Indoor Terminal	Outdoor Terminal	Cable Insulation Outer Diameter (mm)	Cable Cross-Sectional Area (mm²)
XQ-IT-36kV-1	XQ-OT-36kV-1	25.9-33.9	50-150
XQ-IT-36kV-2	XQ-OT-36kV-2	33.7-41.3	185-300
XQ-IT-36kV-3	XQ-OT-36kV-3	41.3-47.0	400-500
XQ-IT-36kV-4	XQ-OT-36kV-4	47.0-53.5	630

Note:

The cable insulation outer diameter is one of the prerequisites for cable accessory selection.
Selection shall be based on IEC‑compliant cables

Illustration for Selection of Cold‑Shrink Indoor & Outdoor Cable Terminations

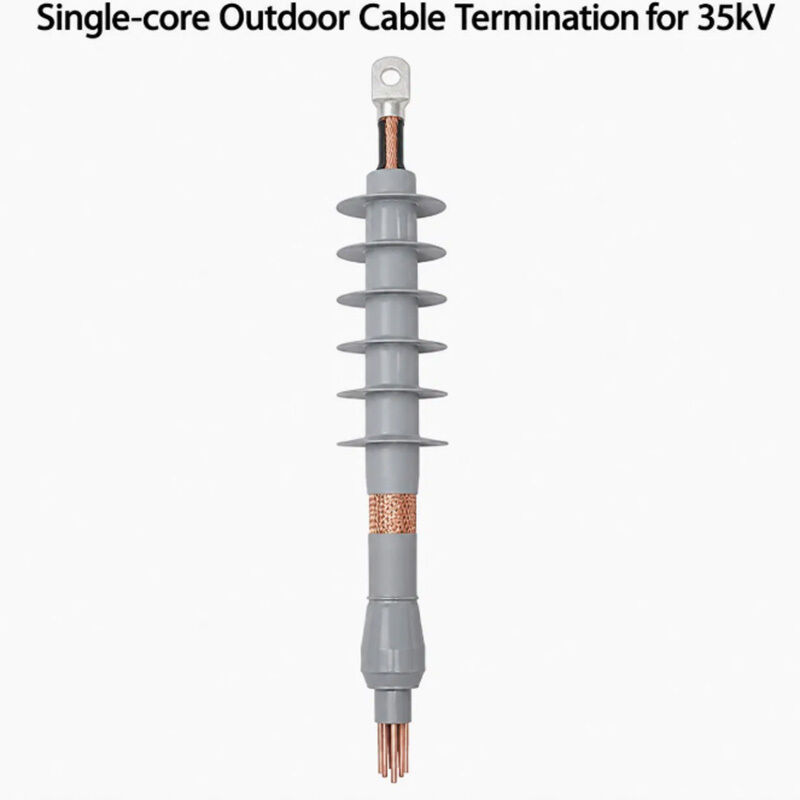

Single‑core Outdoor Terminal (Complete Set) Parts List

Main Components:

Cold‑shrink indoor terminal body (1 pc)
Cold‑shrink insulation tube (1 pc)
Cold‑shrink sealing tube (1 pc)

Installation Accessories:

Semi‑conductive tape (1 roll)
Insulating self‑amalgamating tape (1 roll)
Waterproof insulating composite tape (1 roll)
Insulator silicone grease (1 box)
Waterproof sealing compound (1 box)
Earth wire (1 pc)
Constant force spring (1 pc)
PVC tape (1 roll)
Others:

Tape measure (1 pc)
Abrasive cloth strip (1 pc)
Cleaning kit (1 set)
Gloves (1 pair)
PE gloves (1 pair)
Installation instruction manual (1 copy)
Parts configuration list (1 copy)

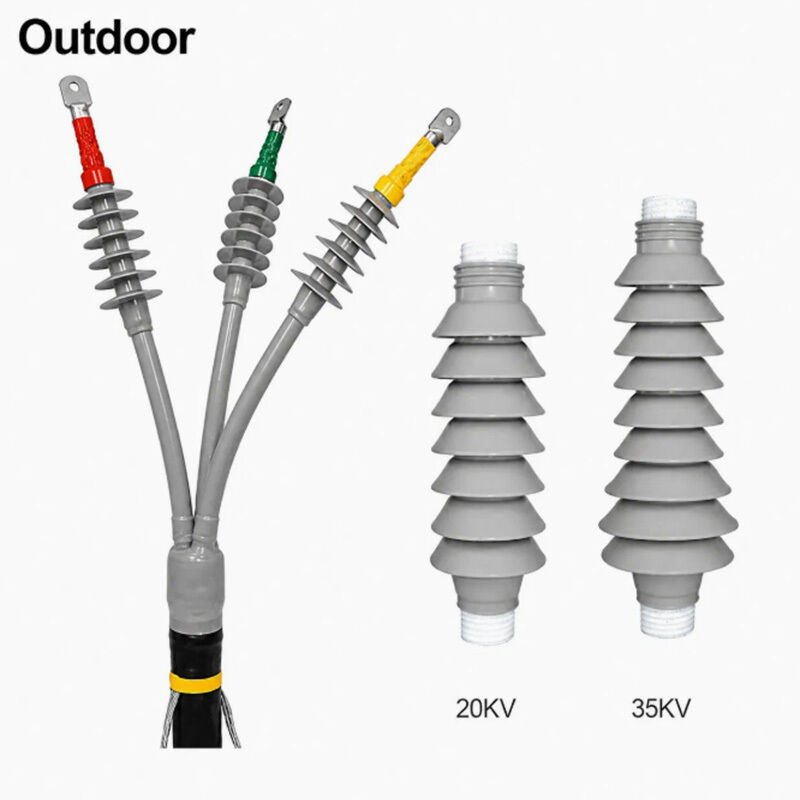

Comparison between Indoor and Outdoor Terminations

Profile: Outdoor termination features larger sheds, while indoor termination has smaller sheds, due to different creepage distance requirements.
Number of sheds: Indoor termination has fewer sheds than outdoor termination, resulting from different insulation distance requirements.
Wall thickness: The wall thickness of outdoor termination is 1‑2 mm thicker than that of indoor termination.
Performance requirement: Outdoor termination requires high UV‑aging resistance and weather‑resistance performance.

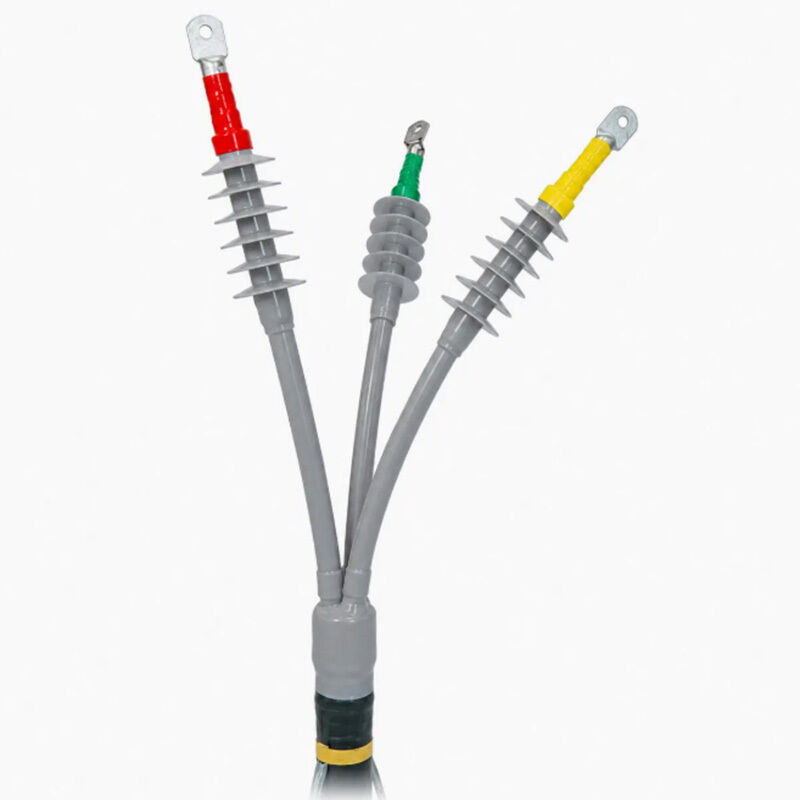

Three‑core Outdoor Terminal (Complete Set) Parts List

Main Components:

Cold‑shrink indoor terminal body (3 pcs)
Cold‑shrink insulation tube (3 pcs)
Cold‑shrink sealing tube (3 pcs)
Insulating breakout boot (3‑finger boot) (1 pc)

Installation Accessories:

Semi‑conductive tape (3 rolls)
Insulating self‑amalgamating tape (3 rolls)
Waterproof insulating composite tape (3 rolls)
Insulator silicone grease (3 boxes)
Waterproof sealing compound (3 boxes)
Earth wire (3 pcs)
Constant force spring (3 pcs)
PVC tape (3 rolls)

Others:

Tape measure (1 pc)
Abrasive cloth strip (3 pcs)
Cleaning kit (3 sets)
Gloves (1 pair)
PE gloves (1 pair)
Installation instruction manual (1 copy)
Parts configuration list (1 copy)

Comparison between Three‑core and Single‑core Terminations

Accessories: Three‑core kit contains three sets of main components, plus one additional insulating breakout boot (3‑finger boot).
Terminal body selection: The indoor and outdoor termination bodies share the same product model for both three‑core and single‑core applications.
