Micro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mm

Micro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mm

Micro Fiber Splice Sleeves

Transparent Fusion Splice Heat Shrink Tubes

Fusion Splice Heat Shrink Tubes 0.5*20mm

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQI

Certification:

RoHS2.0/REACH

Chat Now
Request A Quote
Micro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mm Micro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mm Micro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mm Micro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mm Micro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mm Micro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mm
Product Details
Application:
Optical Fiber Splice Protection
Material:
Polyolefin
Length:
0.5*20mm,0.5*25mm,0.5*30mm
Color:
Transparent ,colored
Productname:
Micro Optical Fiber Splice Heat Shrink Tubing
Tape:
Heatshink Tube
Product Name:
Transparent Micro Optical Fiber Splice Heat Shrink Tubing
Name:
Transparent Micro Optical Fiber Splice Heat Shrink Tubing
Highlight:

Micro Fiber Splice Sleeves

,

Transparent Fusion Splice Heat Shrink Tubes

,

Fusion Splice Heat Shrink Tubes 0.5*20mm

Payment & Shipping Terms
Minimum Order Quantity
1000PCS
Packaging Details
carton，Customizable as per your demands.
Delivery Time
3-5 work days
Payment Terms
T/T
RELATED PRODUCTS
CONTACT US
86-0755-27350428
397962426@qq.com
86-0755-27350498
Chat Now
Product Description

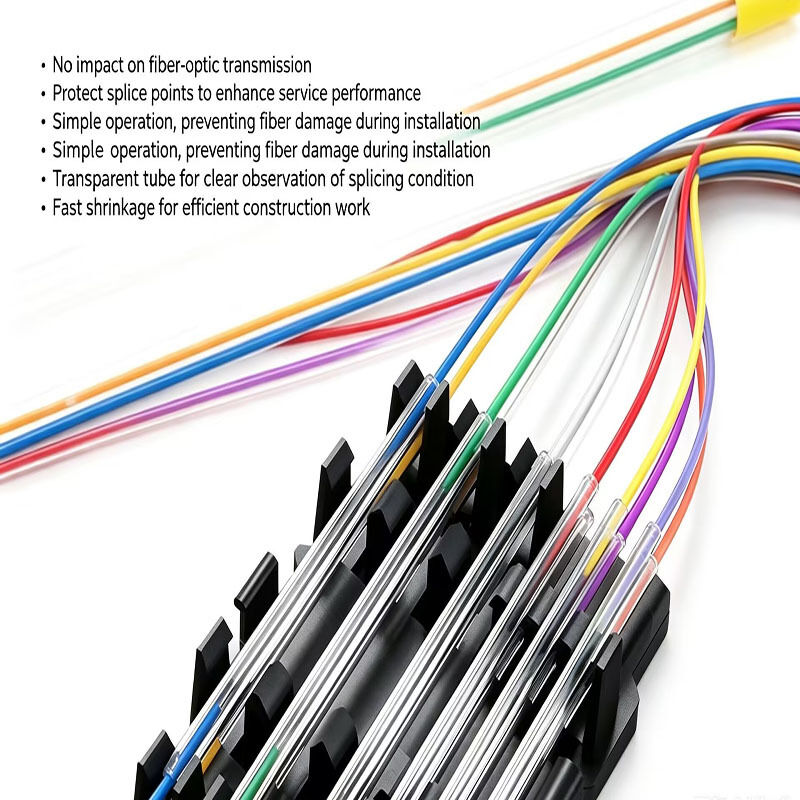

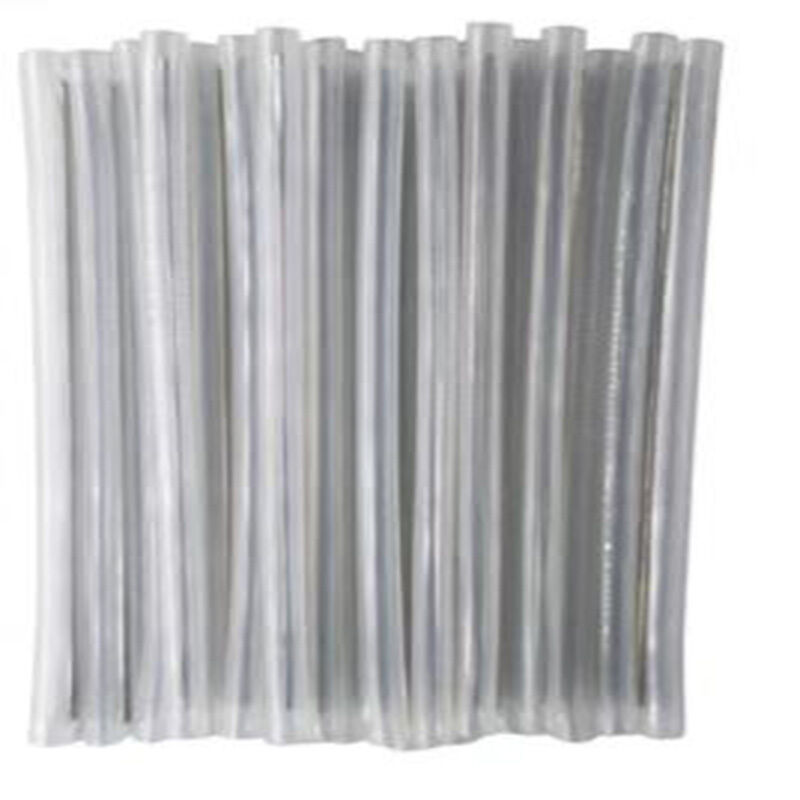

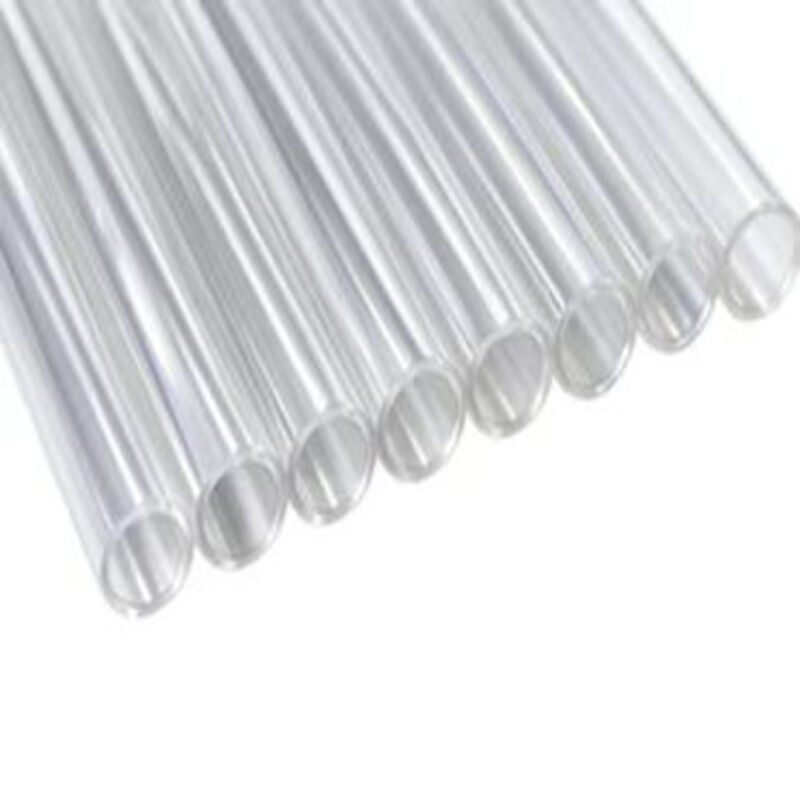

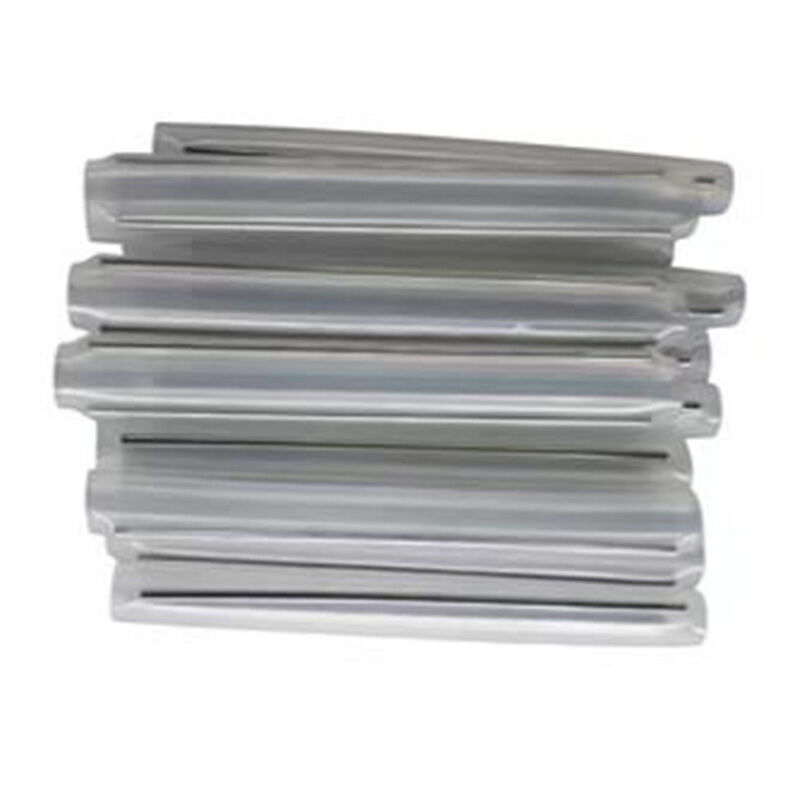

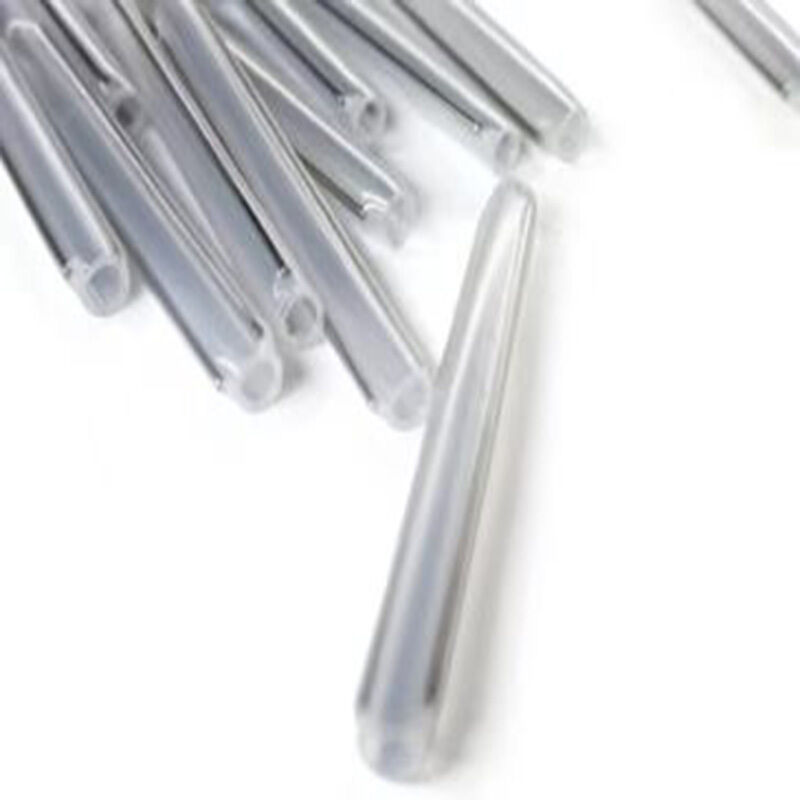

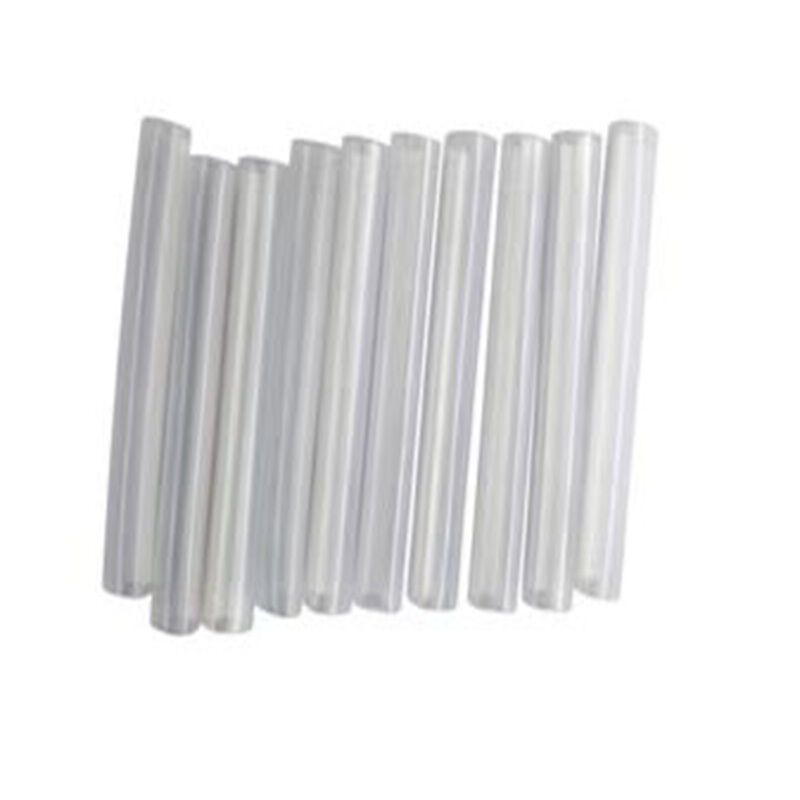

 Transparent Micro Optical Fiber Splice Heat Shrink Tubing

Product Introduction

 Optic Fiber Protective Sleeve safeguards fiber optic splices with a stainless steel rod, heat shrink tubing, and cross-linked polyolefin. It rebuilds the fiber's covering layer, delivering robust mechanical strength at the joint while ensuring superb optical transmission. Easy to operate during installation, its transparent sleeve allows splice inspection before shrinkage.

Applications
  • Data communication network
  • Optical System Access network
  • Storage area networking fiber channel
  • PON System
  • CATV
  • Video Transmission
  • Active Device/Transceiver Interface
  • CATV, Video and Multimedia
  • Premise Installations
  • Telecommunication Networks
  • FTTX

Product Structure & Features

  • Compliant with RoHS
  • Special structure composed of cross-linked polyolefin, hot melt tube and reinforced stainless steel / ceramic / quartz
  • Optical fiber splice protection component without impairing the light transmission properties of optical fiber
  • Protects splice joints and enhances mechanical strength
  • Simple operation, lowering the risk of fiber damage during installation
  • Transparent sleeve for clear observation of fiber splice condition
  • Sealed structure endows splices with outstanding temperature and humidity resistance

Product Specifications

Micro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mmMicro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mmMicro Fiber Splice Sleeves Transparent Fusion Splice Heat Shrink Tubes 0.5*20mm 0.5*25mm 0.5*30mm

Product name

Single needle fiber optic heat shrinkable tube

Steel needle material

304 stainless steel

Skin quality

Environmentally friendly PE material

Working temperature

55~105°C

Scope of application

optical fiber for fusion splicing

Regular packing

50pcs/pack,100pcs/pack

Product color

transparent


Remarks: Custom sizes are available upon customer request.

Technical Specifications

Performance Item

Test Method

Specification Requirement

Tensile strength (MPa)

ASTM D 2671

18

Elongation at Break (%)

ASTM D 2671

700

Density(g/cm2)

ISO R1183D

 0.94

Dielectric strength(KV/mm)

IEC 243

20

Dielectric Constant

IEC 243

2.5

Linear Change Rate

ASTM D 2671

±5
