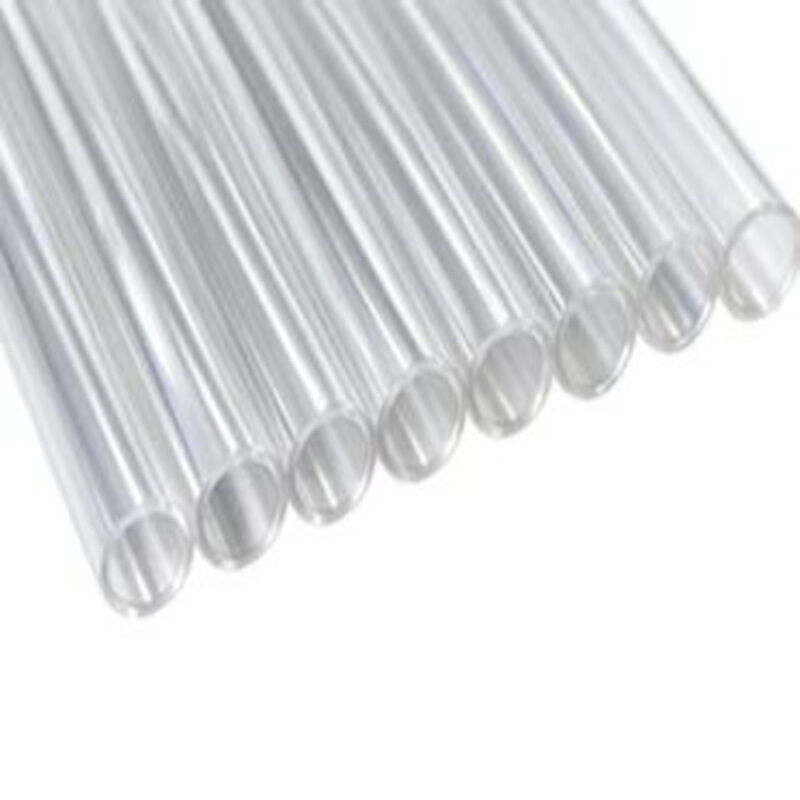

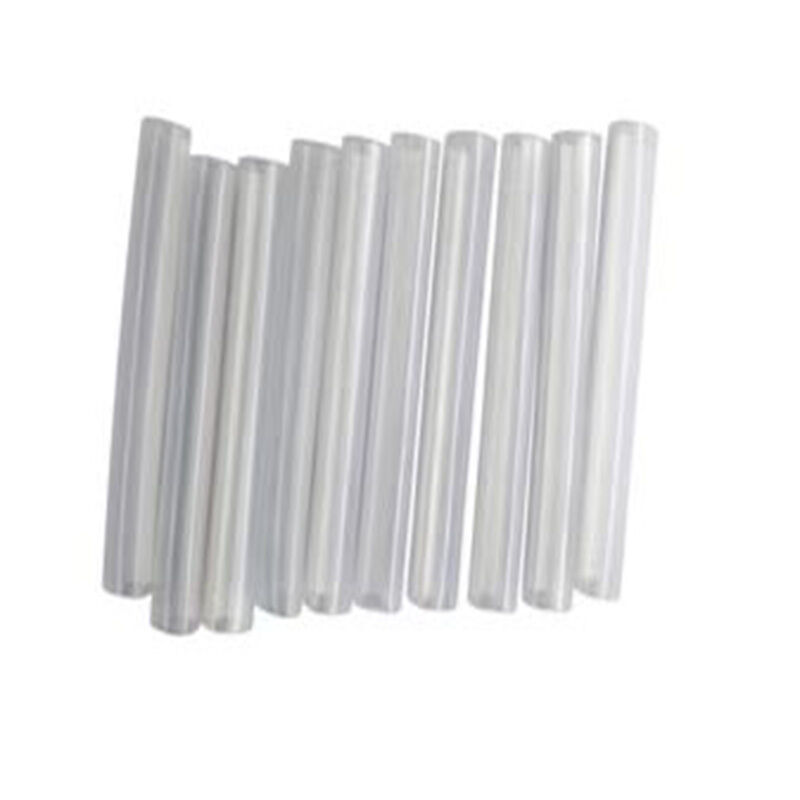

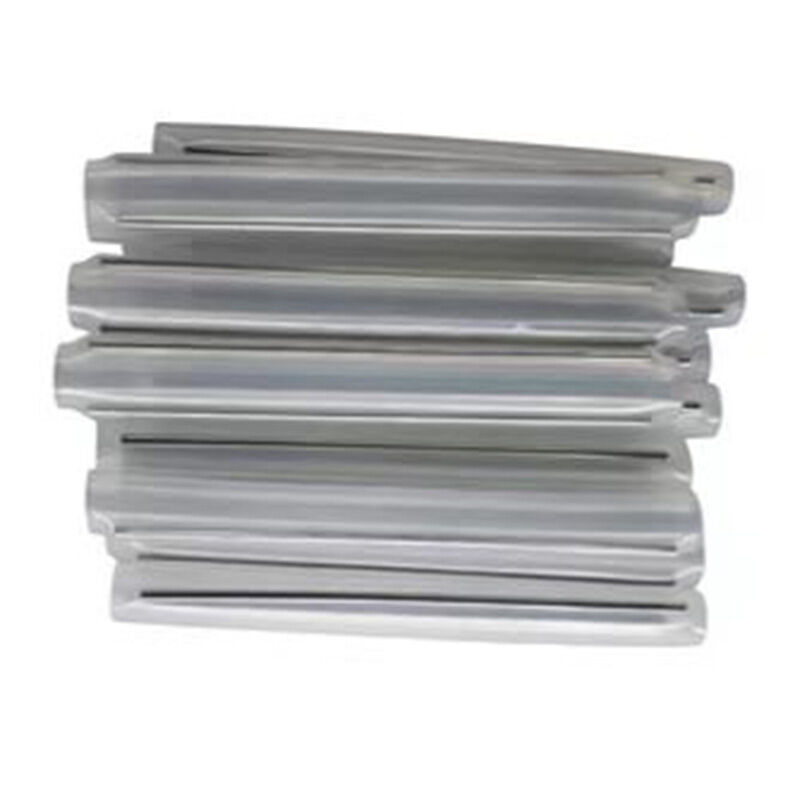

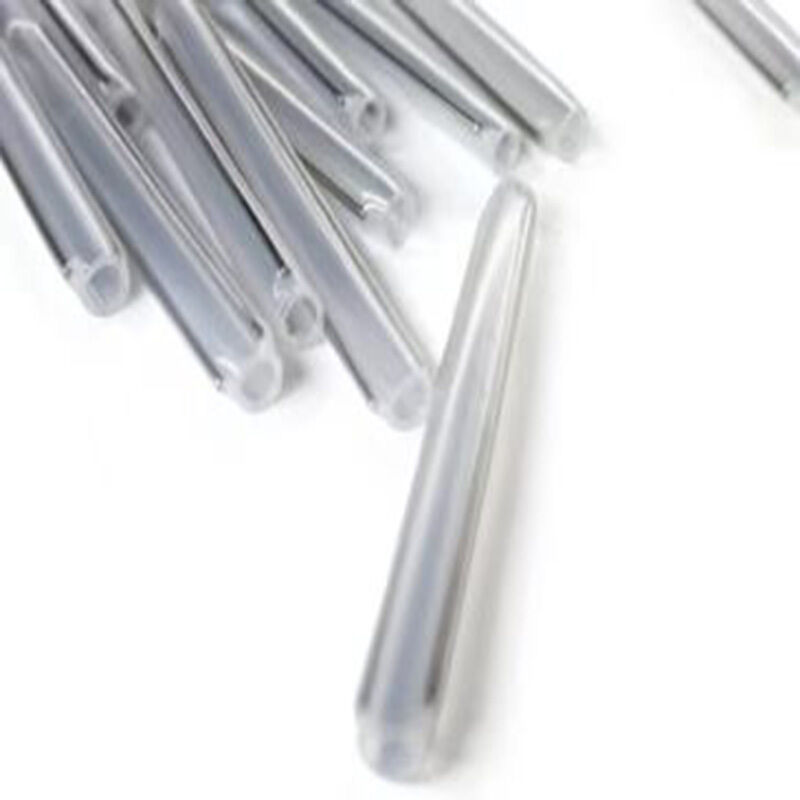

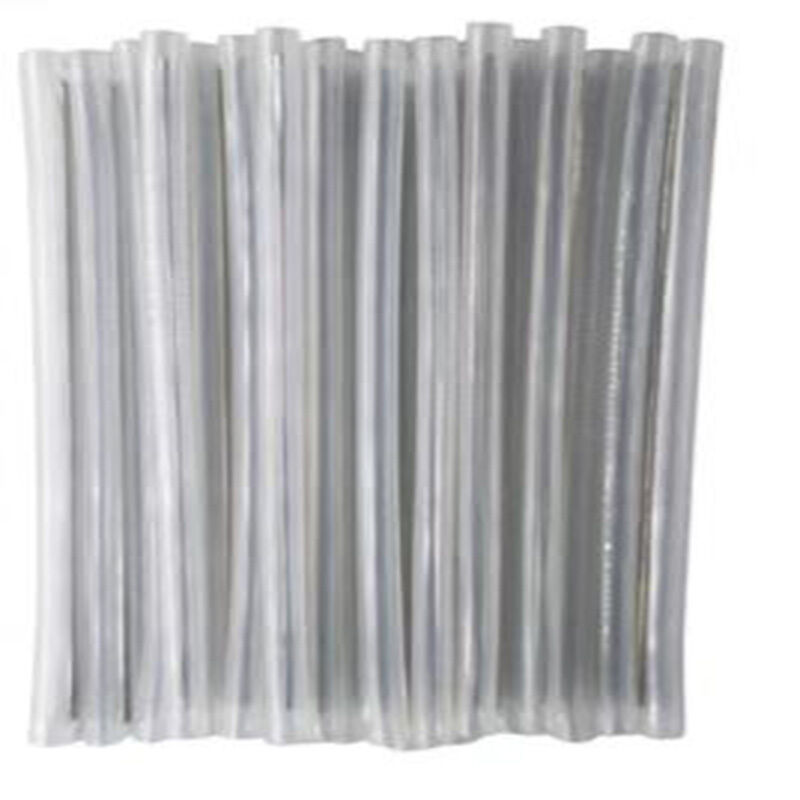

Transparent Micro Optical Fiber Splice Heat Shrink Tubing (Double Ceramic Type)

 Product Introduction

           Double Ceramic splice sleeves are specially developed for 4/6/8/12-core ribbon fiber fusion joints. Different from single steel rod or single ceramic sleeves, this product adopts a three-layer composite structure: transparent cross-linked polyolefin heat shrink outer tube, EVA hot-melt adhesive inner liner and two symmetric D-shaped ceramic strength members, ideal auxiliary parts for high-density ribbon cable splicing.

• Data communication network
• Optical System Access network
• Storage area networking fiber channel
• PON System
• CATV
• Video Transmission
• Active Device/Transceiver Interface
• CATV, Video and Multimedia
• Premise Installations
• Telecommunication Networks
• FTTX

Product Structure & Features

• Compliant with RoHS
• Special structure composed of cross-linked polyolefin, hot melt tube and reinforced stainless steel / ceramic / quartz
• Optical fiber splice protection component without impairing the light transmission properties of optical fiber
• Protects splice joints and enhances mechanical strength
• Simple operation, lowering the risk of fiber damage during installation
• Transparent sleeve for clear observation of fiber splice condition
• Sealed structure endows splices with outstanding temperature and humidity resistance

Fiber Optic Fusion Splice Protection Sleeve Advantages
✅ Built-in stainless steel strengthening rod, effectively avoid sharp bending and fiber breakage, prevent extra optical loss
✅ Inner hot melt adhesive forms tight waterproof & dustproof sealing, protects splice point from moisture contamination
✅ Excellent weather resistance, stable performance for indoor & outdoor optical cable projects
✅ Easy installation with fusion splicer heater, transparent shell allows visual inspection
✅ Compact size, suitable for normal fiber and micro optical fiber, convenient for cable tray & splice closure wiring

Product Specifications

Double Ceramic Type

l Strength‑Member: Ceramic

l  Packing: 50  per bag(Custom packaging solutions are acceptable as customer requirements.)

Technical Dimensions

Remarks: Custom packaging solutions are acceptable as customer requirements.
