Custom Fusion Splice Protection Sleeve Micro Heat Shrink Splice Protector

Custom Fusion Splice Protection Sleeve

Micro Heat Shrink Splice Protector

Custom Heat Shrink Splice Protector

Place of Origin:

Shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS2.0 /REACH

Chat Now

Request A Quote

Product Details

Application:

Optical Fiber Splice Protection

Material:

Cross-linked Polyolefin

Length:

20mm,25mm,30mm,40mm,45mm,

Color:

Transparent ,colored

Productname:

Micro Optical Fiber Splice Heat Shrink Tubing

Tape:

Heat Shrink Tube

Name:

Transparent Micro Optical Fiber Splice Heat Shrink Tubing （Single Ceramic Type）

Highlight:

Custom Fusion Splice Protection Sleeve

Micro Heat Shrink Splice Protector

Custom Heat Shrink Splice Protector

Payment & Shipping Terms

Minimum Order Quantity

1000PCS

Price

0.01-0.2usd/pcs

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5 work days

Payment Terms

T/T

Supply Ability

8 million pcs/year

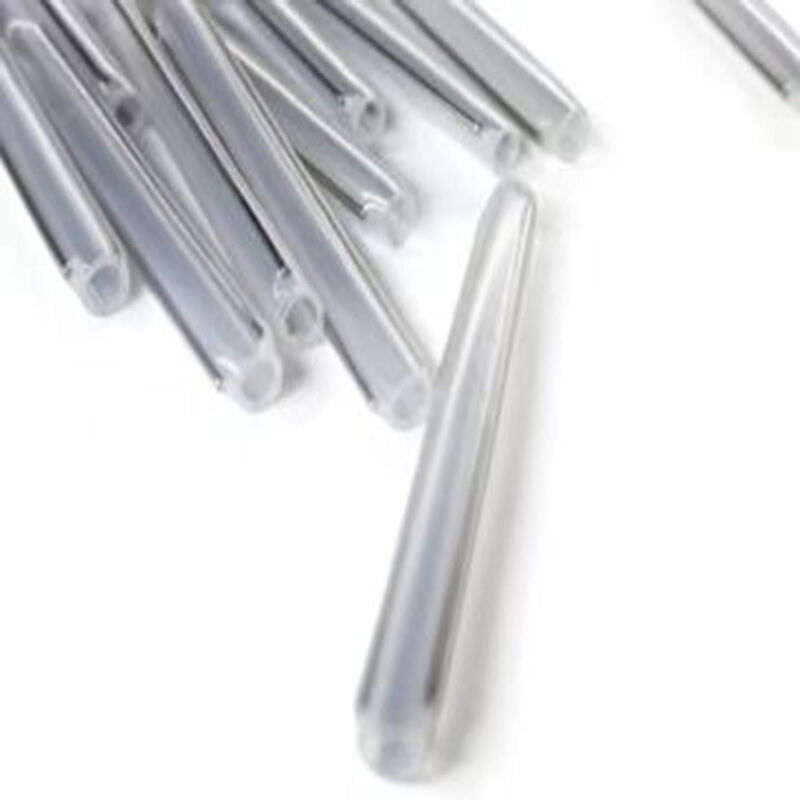

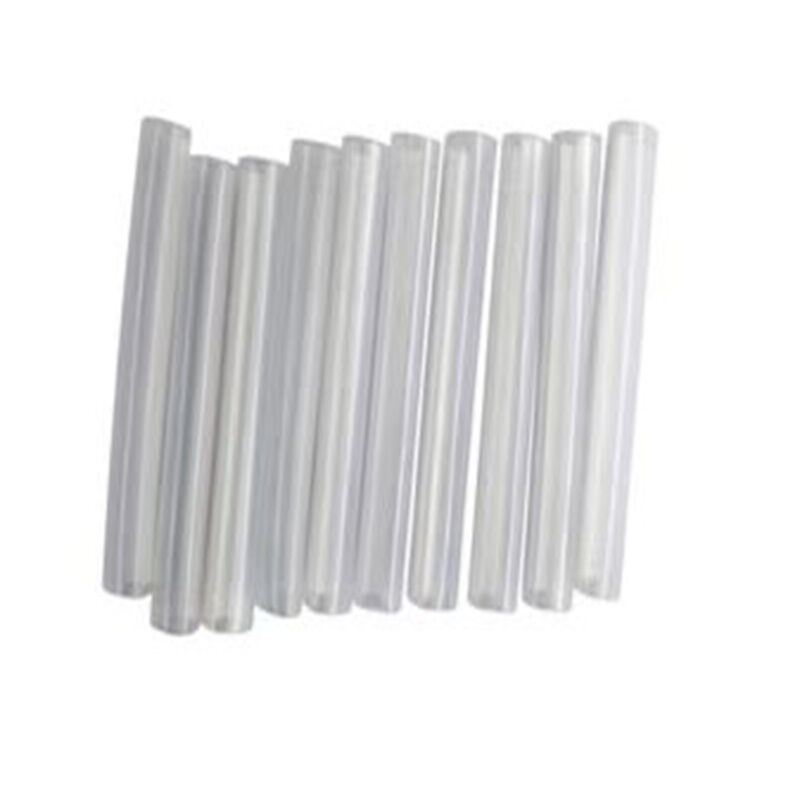

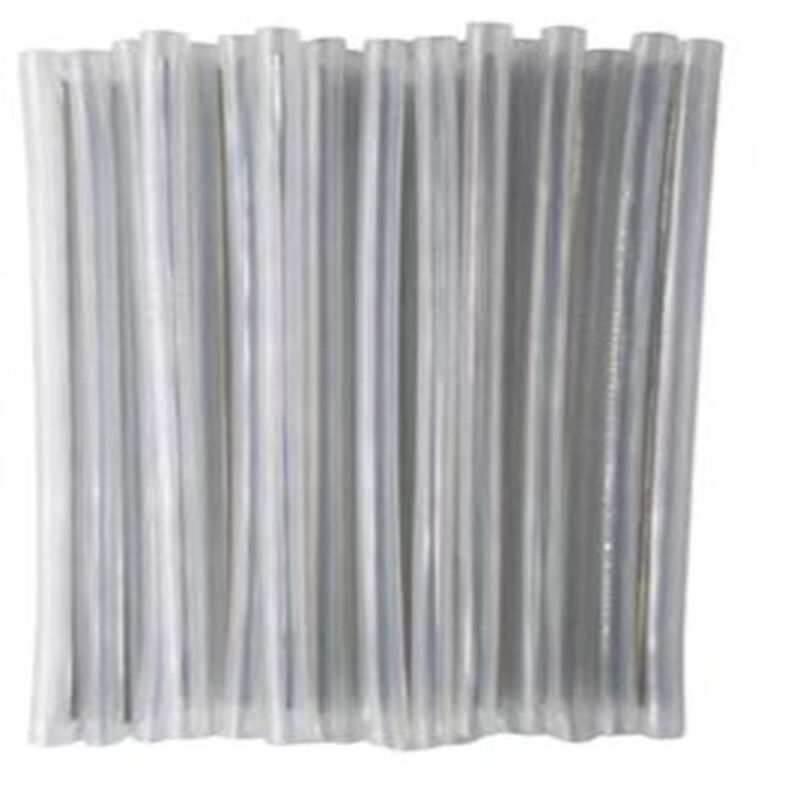

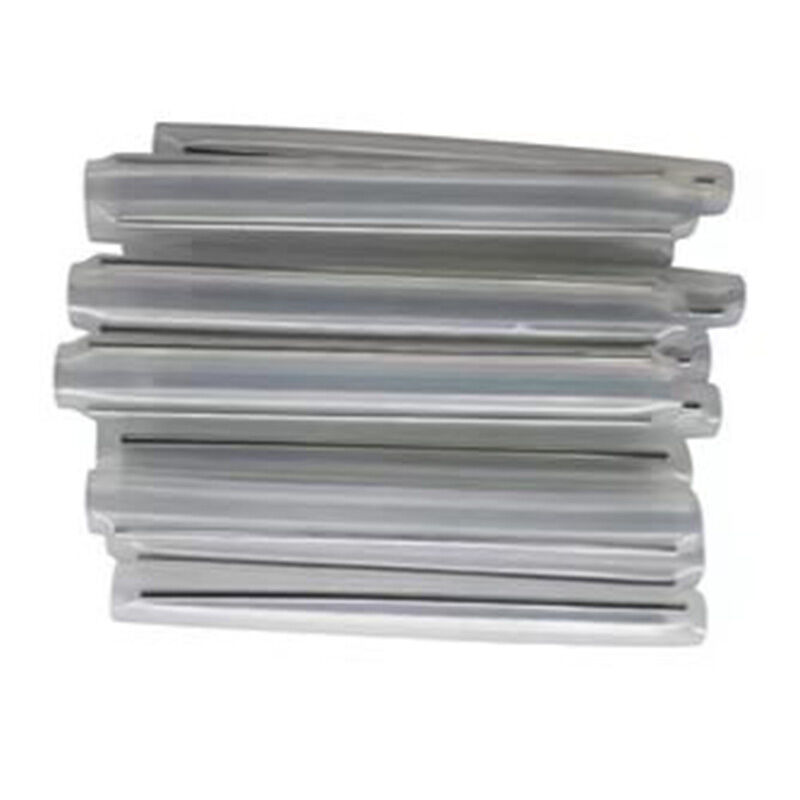

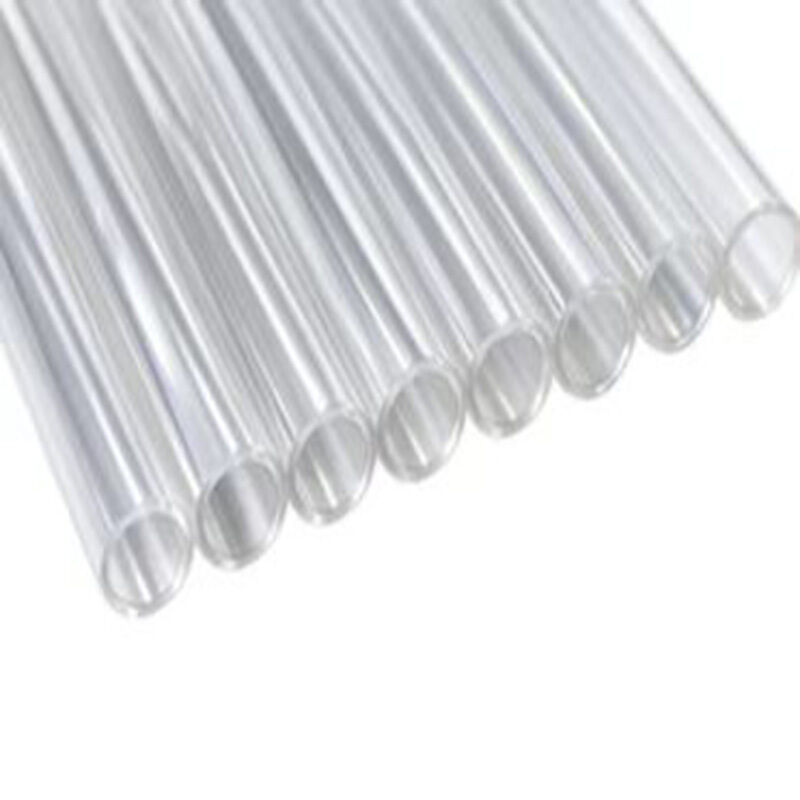

Transparent Micro Optical Fiber Splice Heat Shrink Tubing (Single ceramic type)

Product Introduction

Transparent Micro Optical Fiber Splice Heat Shrink Tubing (Single ceramic type) . Adopts single ceramic reinforcing strip, small-size transparent heat shrink tube, designed for thin single-core fiber fusion splice protection. Featuring visual inspection before heating, good bending resistance and tight waterproof sealing. Compliant with RoHS and REACH.

Applications

Data communication network
Optical System Access network
Storage area networking fiber channel
PON System
CATV
Video Transmission
Active Device/Transceiver Interface
CATV, Video and Multimedia
Premise Installations
Telecommunication Networks
FTTX

Product Structure & Features

Compliant with RoHS
Special structure composed of cross-linked polyolefin, hot melt tube and reinforced stainless steel / ceramic / quartz
Optical fiber splice protection component without impairing the light transmission properties of optical fiber
Protects splice joints and enhances mechanical strength
Simple operation, lowering the risk of fiber damage during installation
Transparent sleeve for clear observation of fiber splice condition
Sealed structure endows splices with outstanding temperature and humidity resistance

Fiber Optic Fusion Splice Protection Sleeve Advantages
✅ Built-in stainless steel strengthening rod, effectively avoid sharp bending and fiber breakage, prevent extra optical loss
✅ Inner hot melt adhesive forms tight waterproof & dustproof sealing, protects splice point from moisture contamination
✅ Excellent weather resistance, stable performance for indoor & outdoor optical cable projects
✅ Easy installation with fusion splicer heater, transparent shell allows visual inspection
✅ Compact size, suitable for normal fiber and micro optical fiber, convenient for cable tray & splice closure wiring

Product Specifications

Single ceramic type

l Strength‑Member: Ceramic

l Packing: 50 pcs/bag

Remarks: Custom packaging solutions are acceptable as customer requirements.

Technical Dimensions

Type	Fiber capacity	Ceramic Width *Height	Hot-melt tube Width* length	Hot-melt Tube length	Outer Diameter of Component Before Shrink Aftter Shrik
61400401	4	3.05±0.1*1.4±0.1 mm	2.0±0.1*1.2±0.1 mm	40±1 mm	4.4±0.2mm	3.4±0.2mm
61400601	6	3.05±0.1*1.4±0.1 mm	3.0±0.1*1.3±0.1 mm	40±1 mm	4.7±0.2mm	3.8±0.2mm
61400801	8	3.95±0.1*1.95±0.1 mm	3.6±0.1*1.8±0.1 mm	40±1 mm	5.8±0.2mm	4.6±0.2mm
61401201	12	3.95±0.1*1.95±0.1 mm	4.5±0.1*2.5±0.1 mm	40±1 mm	6.2±0.2mm	4.8±0.2 mm

Remarks: Custom sizes are available upon customer request.
