20mm 25mm 30mm 40mm 45mm Fiber Splice Sleeves Transparent Fiber Heat Shrink Sleeves

20mm 25mm 30mm 40mm 45mm Fiber Splice Sleeves Transparent Fiber Heat Shrink Sleeves

25mm Fiber Splice Sleeves

40mm Fiber Splice Sleeves

Transparent Fiber Heat Shrink Sleeves

Place of Origin:

Shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS2.0/REACH

Chat Now
Request A Quote
Product Details
Application:
Optical Fiber Splice Protection
Material:
Polyolefin
Length:
20mm,25mm,30mm,40mm,45mm,
Color:
Transparent ,colored
Productname:
Micro Optical Fiber Splice Heat Shrink Tubing
Tape:
Heatshink Tube
Name:
Transparent Micro Optical Fiber Splice Heat Shrink Tubing (Single Quartz Type)
Highlight:

25mm Fiber Splice Sleeves

,

40mm Fiber Splice Sleeves

,

Transparent Fiber Heat Shrink Sleeves

Payment & Shipping Terms
Minimum Order Quantity
1000 PCS
Packaging Details
carton,Customizable as per your demands.
Delivery Time
3-5 work days
Payment Terms
T/T
RELATED PRODUCTS
CONTACT US
86-0755-27350498
Chat Now
Product Description

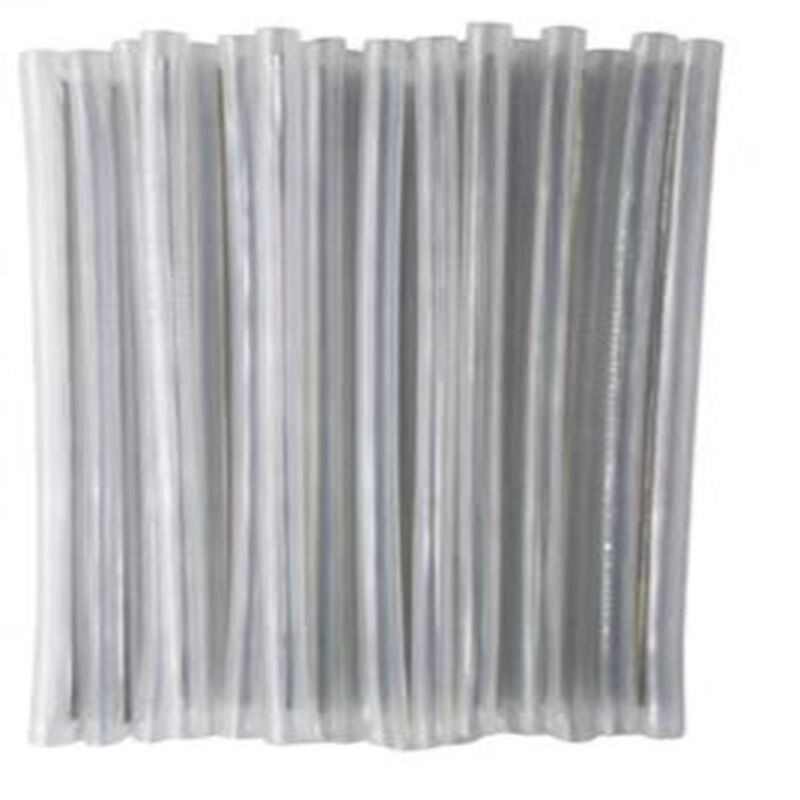

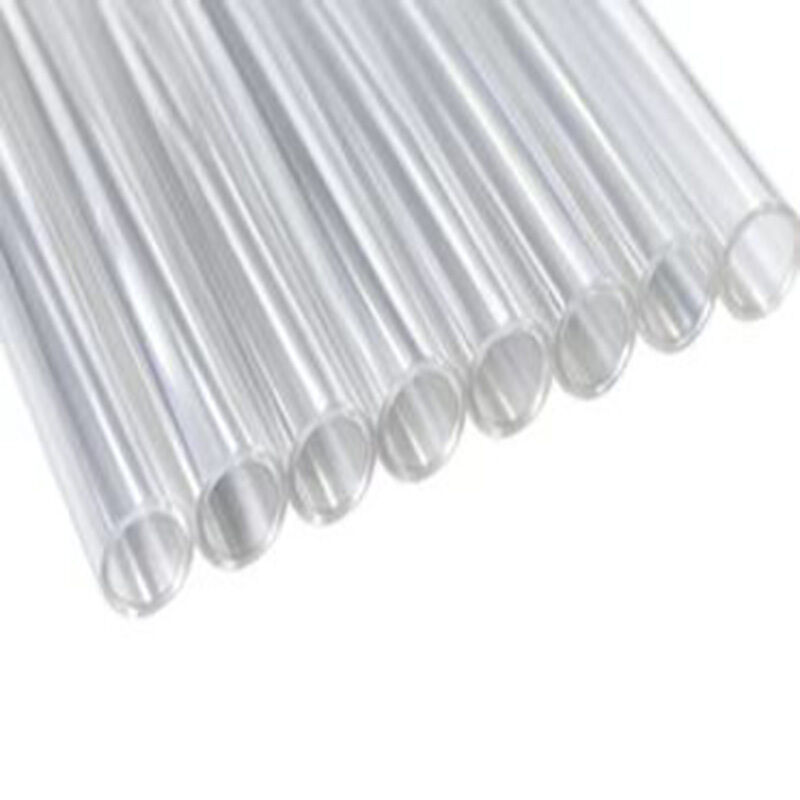

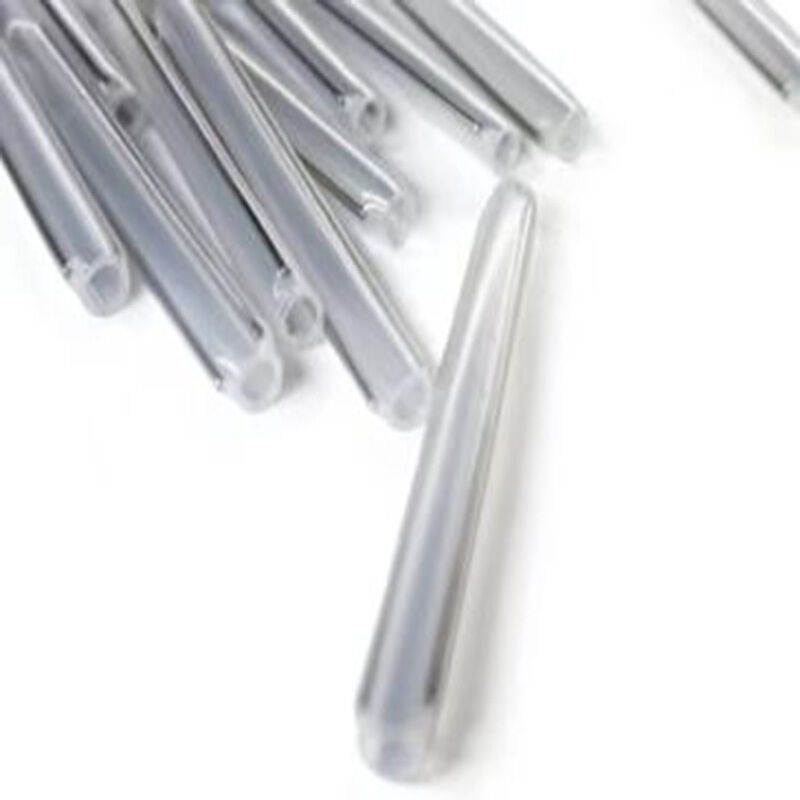

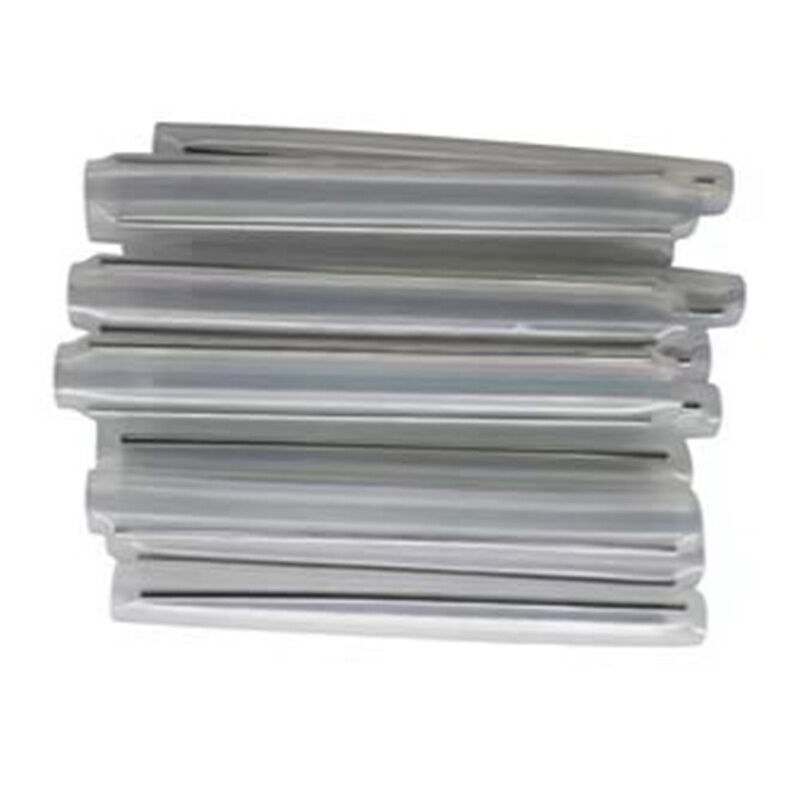

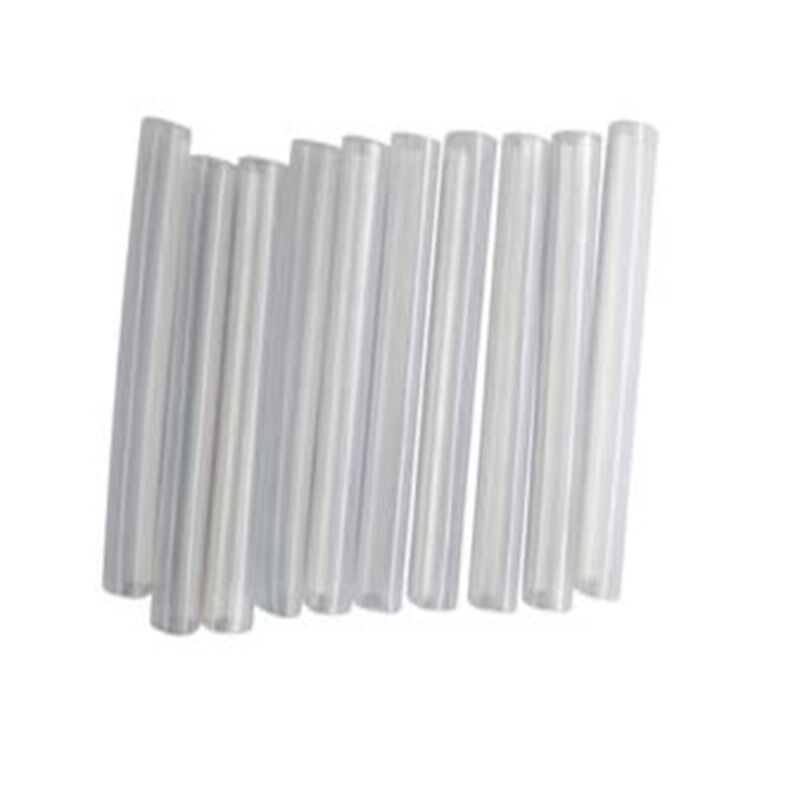

 Transparent Micro Optical Fiber Splice Heat Shrink Tubing (Single Quartz Type)


Product Introduction

         This transparent micro splice sleeve comes with a single quartz reinforcing rod. Compact size for fine single fiber joints, transparent tube allows visual check of fusion quality before heating, with good anti-bending and waterproof sealing performance, RoHS & REACH compliant.


Applications

Application Scenarios of Fiber Fusion Splice Protection Sleeves

 Telecommunication Trunk Projects

  1. Protection for fusion joints of overhead outdoor optical cables, direct-buried underground optical cables and pipeline optical cables.
  2. Reinforcement protection for long-distance backbone optical fibers and metropolitan area network cable joints to resist external forces such as extrusion, bending and rodent gnawing.

 Indoor Weak Current Cabling

  1. Fusion points of fiber patch cords inside computer room ODF frames and cabinets.
  2. Optical fiber connection points for integrated wiring in office buildings, shopping malls, hospitals and schools.
  3. Fiber joints for surveillance security systems and indoor optical cables of wireless network base stations.

Outdoor Base Stations & Communication Equipment

  1. Fiber fusion positions of 4G/5G macro base stations, micro base stations and RRU equipment.
  2. Waterproof and pressure-resistant protection for internal fiber joints in outdoor signal boxes and optical distribution boxes.

 Industrial Equipment Fields

  1. Sensing optical fibers built into automated machinery and instruments.
  2. Signal transmission fiber joints for photovoltaic and wind power equipment.
  3. Optical fiber connection points under high-temperature and slight vibration industrial environments.

Special Industries

  1. Communication optical cable fusion points in rail transit and subway tunnels.
  2. Optical fibers for high-definition security monitoring and forest fire prevention monitoring.
  3. Mobile communication fiber joints for vehicles and ships.

Matching Advantages for Application Demands

Equipped with an internal stainless steel support rod, it prevents fiber breakage under burial or overhead laying. The transparent tube allows convenient inspection of splicing quality during construction. The cross-linked polyolefin layer provides insulation, moisture resistance and wear resistance, making the product suitable for both indoor and outdoor use.


Product Structure & Features

  • Compliant with RoHS
  • Special structure composed of cross-linked polyolefin, hot melt tube and reinforced stainless steel / ceramic / quartz
  • Optical fiber splice protection component without impairing the light transmission properties of optical fiber
  • Protects splice joints and enhances mechanical strength
  • Simple operation, lowering the risk of fiber damage during installation
  • Transparent sleeve for clear observation of fiber splice condition
  • Sealed structure endows splices with outstanding temperature and humidity resistance

Product Specifications

Single Quartz Type

l  StrengthMember: Quartz

l  Packing: 50 pcs/bag


Technical Dimensions

Type

Fiber capacity

Quartz

Width *Height

Hot-melt tube

Width* length

Hot-melt Tube

length

Outer Diameter of Component

Aftter Shrik

61400430

4

3.2±0.1*1.5±0.1mm

2.4±0.1*40±1mm

40±1 mm

3.5±0.2mm

61280830

6

3.1±0.1*1.6±0.1mm

3.5±0.1*28±1mm

40±1 mm

3.8±0.2mm

61400830

8

3.1±0.1*1.6±0.1mm

3.1±0.1*40±1mm

40±1 mm

3.6±0.2mm

61401230

12

3.9±0.1*1.9±0.1mm

3.9±0.1*40±1mm

40±1 mm

4.8±0.2 mm



Remarks: Custom sizes are available upon customer request.
