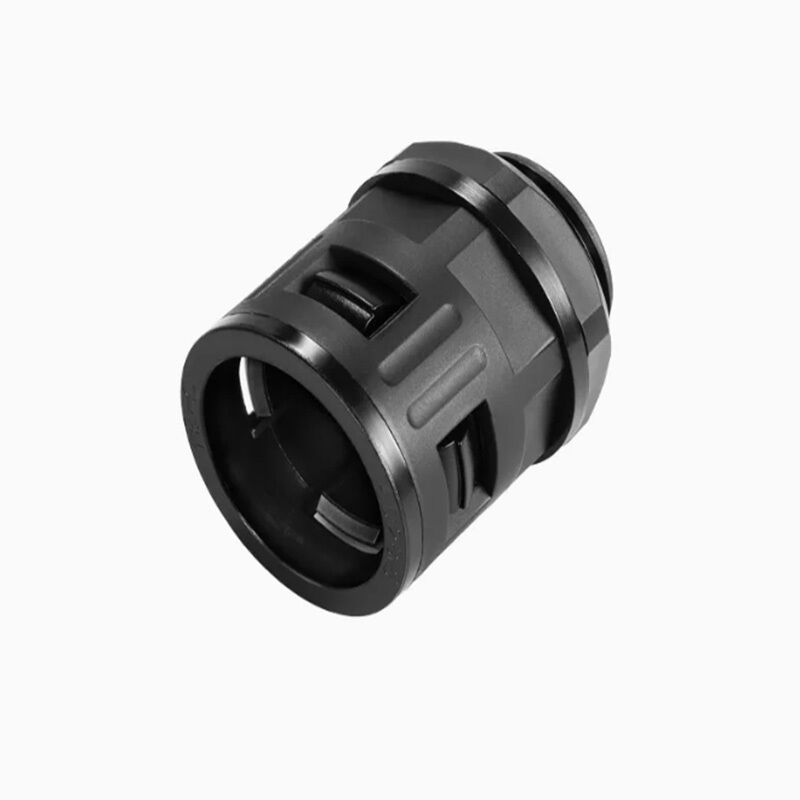

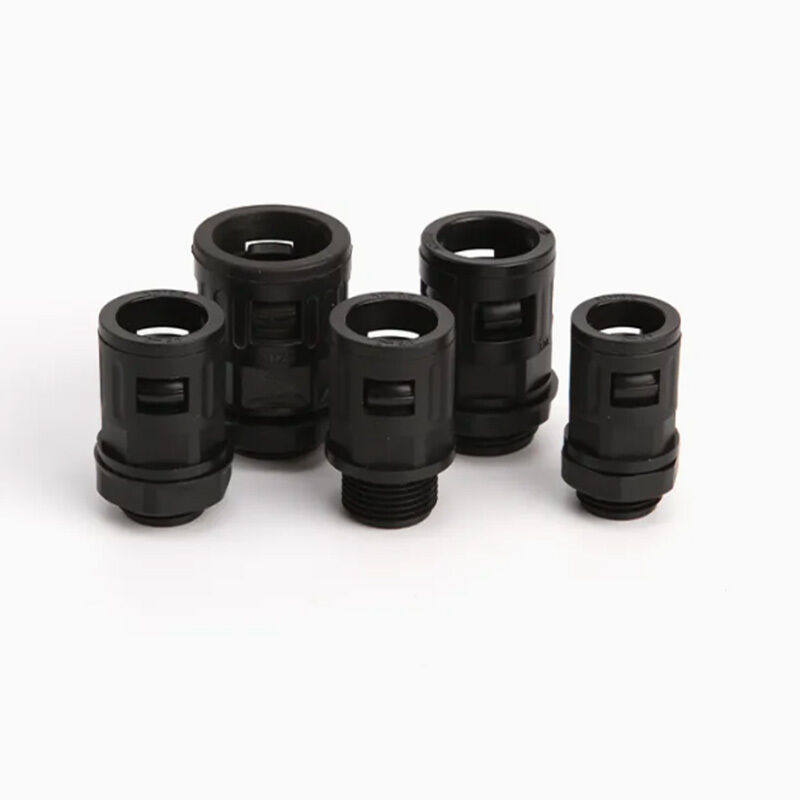

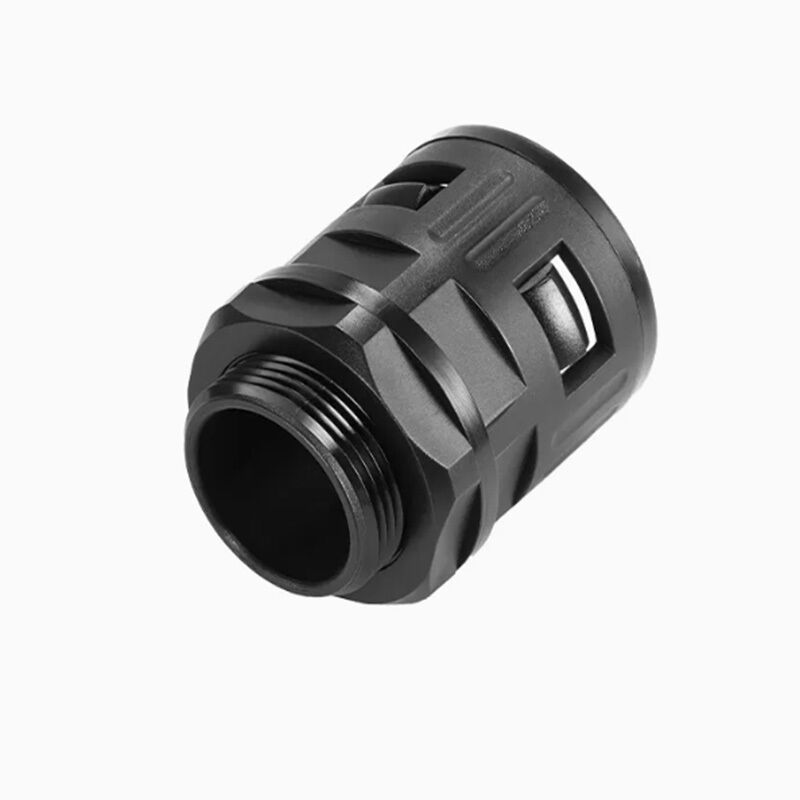

Nylon Conduit Straight Connector Black Quick Connect Fittings Customized

Nylon Conduit Straight Connector

Black Quick Connect Fittings

Quick Connect Fittings Customized

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Chat Now

Request A Quote

Product Details

Name:

Conduit Straight Connector

Color:

Black,Custom Sizes And Colors Are Available Upon Customer Request.

Operating Temperature:

-40°C ~ +130°C

Material:

PA Polyamide Nylon, With Outer Clamping Ring.

Thread Specification:

Metric / PG Threads

Highlight:

Nylon Conduit Straight Connector

Black Quick Connect Fittings

Quick Connect Fittings Customized

Payment & Shipping Terms

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5work days

Payment Terms

T/T

Nylon Conduit Quick Straight Connector

Product Introduction

This nylon conduit quick straight connector is a push‑in type fitting designed for fast connection of nylon flexible corrugated conduits. Made of high‑quality nylon PA6 material, it delivers good insulation, abrasion resistance and anti‑aging performance, suitable for cable protection in electrical equipment, machinery and automotive wiring systems.

Featuring tool‑free quick‑connect structure, it enables simple and rapid conduit assembly without screws or extra tools, greatly improving installation efficiency. It provides reliable tight connection for two sections of flexible conduits, effectively preventing conduit separation during usage. Compact straight‑through design saves installation space. It supports matching with standard nylon corrugated conduits, widely applied in wiring harness protection for industrial equipment, control cabinets and automation devices.

Product Features

Material: PA polyamide nylon, with outer clamping ring.

Thread Specification: Metric / PG threads

Operating Temperature: -40°C ~ +130°C

Color: Black; other colors are available for customization.

Features: Specially‑designed inner locking buckle and main body. Quick push‑pull installation and removal, tool‑free operation.

Usage: Supporting accessory for flexible conduits. It can be mounted onto equipment enclosures, or fitted to devices with female thread ports according to selected thread type. Simply insert the flexible conduit into the fitting to complete connection.

Metric Thread Selection Table

Item Number	Specifications for fiexible pipe(AD)	Metric dimension of thread	AG Outer diametermm)	AG Inner diameter9mm)	GL(mm)	H(mm)	Packaging unit/pack
AD10-M12	Ad10	M12×1.5	12	6.5	10	22.5	100
AD10-M16	Ad10	M16×1.5	16	6.5	10	22.5	100
AD13-M16	Ad13	M16×1.5	16	10	10	23	100
AD13-M18	Ad13	M18×1.5	18	10	11.5	23	100
AD13-M20	Ad13	M20×1.5	20	10	11.5	23	100
AD15.8-M16	Ad15.8	M16×1.5	16	12	10	24	100
AD15.8-M18	Ad15.8	M18×1.5	181	12	11.5	24	100
AD15.8-M20	Ad15.8	M20×1.5	20	12	11.5	24	100
AD18.5-M20	Ad18.5	M20×1.5	20	14.3	12	25	100
AD21.2-M20	Ad21.2	M20×1.5	20	17	13	27	100
AD21.2-M24	Ad21.2	M24×1.5	24	17	13	27	100
AD21.2-M25	Ad21.2	M25x1.5	25	171	13	27	100
AD25.0-M25	Ad25.0	M25×1.5	25	20	14	30	100
AD28.5-M25	Ad28.5	M25×1.5	25	23	20	34	50
AD28.5-M27	Ad28.5	M27×2	27	23	14	34	50
AD34.5-M32	Ad34.5	M32×1.5	32	29	20	36	50
AD34.5-M36	Ad34.5	M36×2	36	29	14	36	50
AD34.5-M40	Ad34.5	M40×1.5	40	29	15	38.5	50
AD42.5-M40	Ad42.5	M40×1.5	40	36	15	38.5	20
AD42.5-M48	Ad42.5	M48×2	48	36	15	38.5	20
AD54.5-M50	Ad54.5	M501.5	50	38	16	39	10
AD54.5-M60	Ad54.5	M60x2	60	53	16	39	10

German Standard Thread Selection Table

Item Number	Specifications for fiexible pipe	Dimension of thread	AG Outer diameter(mm)	AG Inner diameter(mm)	GL(mm)	H(mm)	Packaging unit/pack
AD10-PG7	Ad10	Pg7	12.3	6.5	11.5	18	100
Ad13-PG9	Ad13	Pg9	15	10	11.5	19	100
AD15.8-PG11	Ad15.8	Pg11	18.4	12	12	23	100
AD18.5-PG13.5	Ad18.5	PG13.5	20.2	14.3	12	23	100
AD21.2-PG16	Ad21.2	Pg16	22.3	17	13	25	100
AD21.2-PG13.5	Ad21.2	PG13.5	20.2	17	13	23	100
AD28.5-PG21	Ad28.5	Pg21	28	23	13	33	100
AD34.5-PG29	Ad34.5	MPG29	36.7	29	15	35	50
AD42.5-PG36	Ad42.5	Pg36	46.7	36	15	38.5	20
AD54.5-PG48	Ad54.5	Pg48	59	53	16	39	10

Remarks: Custom sizes and colors are available upon customer request.
