Home > Products > Silicone Rubber Tubing >

Black EPDM Cold Shrink Tubing RoHS Compliant EPDM Rubber Sleeve

Black EPDM Cold Shrink Tubing

EPDM Cold Shrink Tubing RoHS Compliant

RoHS Compliant EPDM Rubber Sleeve

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS 2.0

Chat Now

Request A Quote

Product Details

Name:

EPDM Cold Shrink Tubing For Electronics Cable Insulated

Material:

Rubber

Chemistry:

Organic Insulation

Classification:

Hybrid Insulation Materials

Color:

Black

Highlight:

Black EPDM Cold Shrink Tubing

EPDM Cold Shrink Tubing RoHS Compliant

RoHS Compliant EPDM Rubber Sleeve

Payment & Shipping Terms

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5 work days

Payment Terms

T/T

EPDM Cold Shrink Tubing for Electronics Cable Insulated

Product Introduction

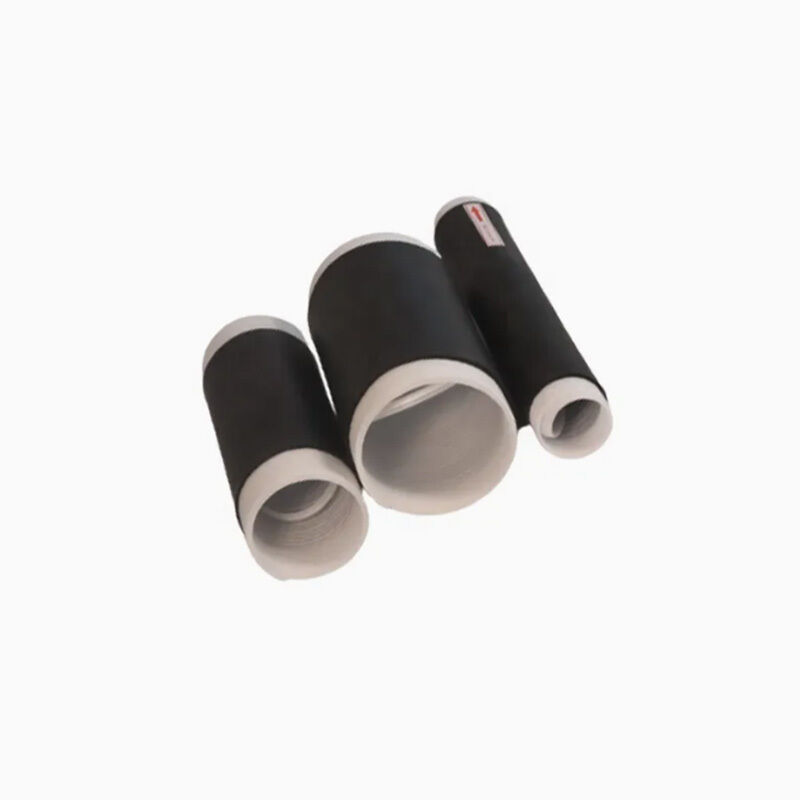

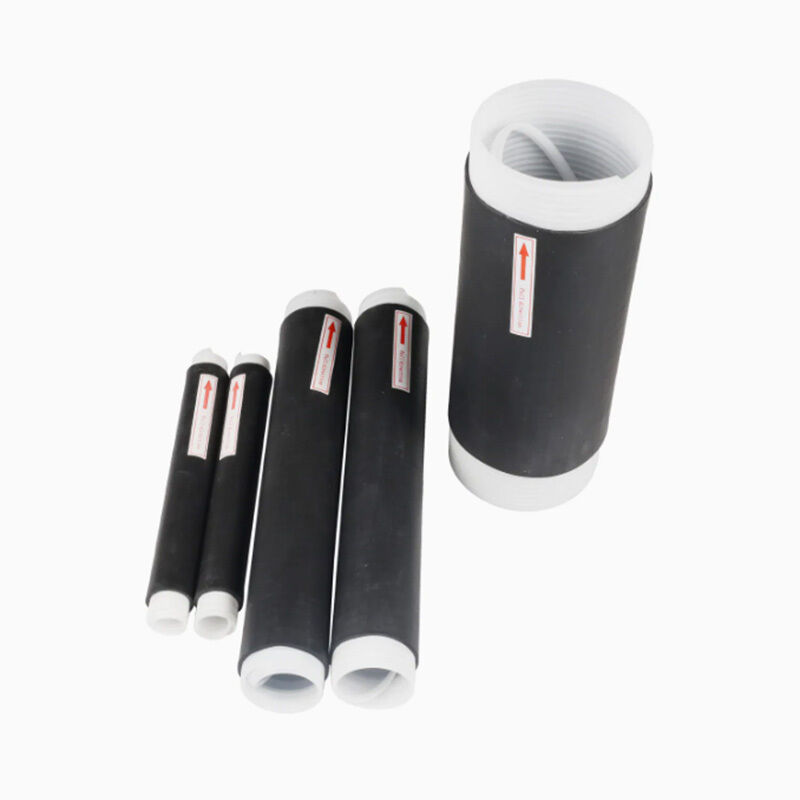

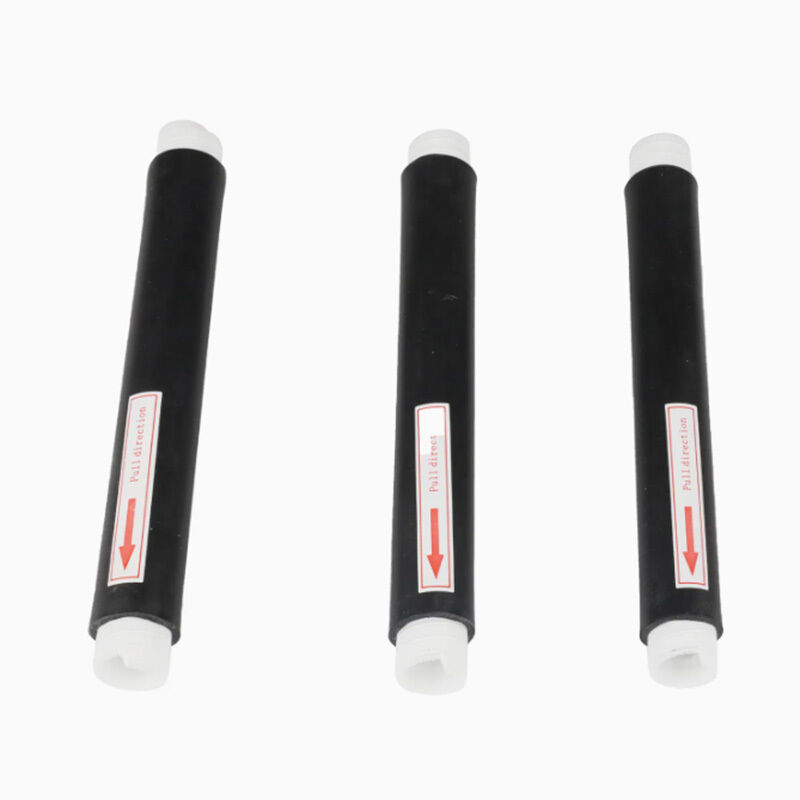

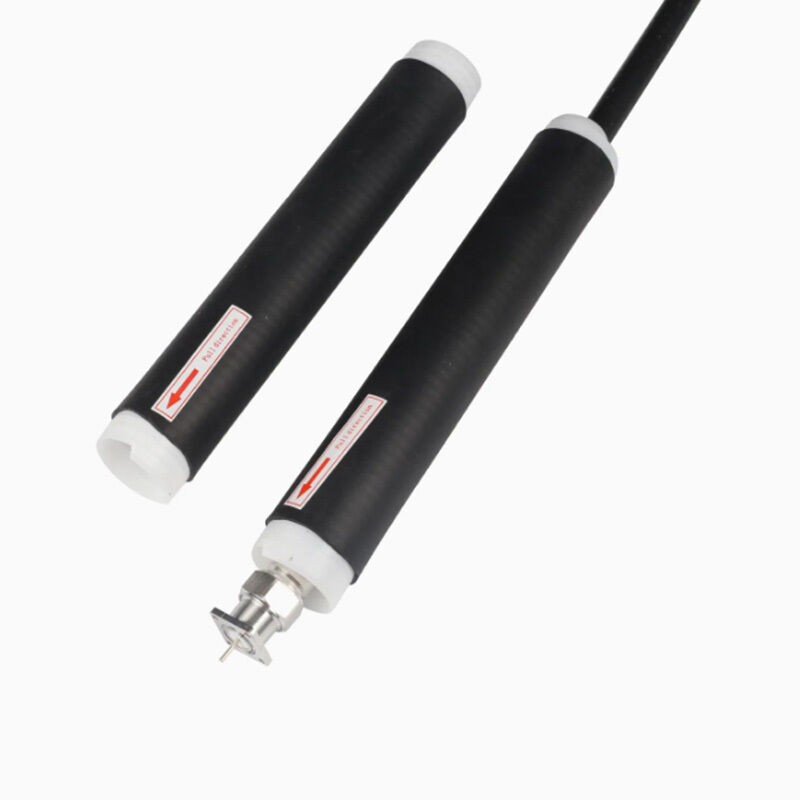

EPDM (Ethylene Propylene Diene Monomer) cold‑shrink tube is a high‑performance rubber insulating sleeve pre‑expanded and fitted onto a removable support core. No heating or special tools are required for installation. Simply position the tube at the target location and pull out the inner support core; the sleeve will automatically contract under its elastic recovery force and tightly wrap around cables with steady radial pressure to deliver reliable waterproof and moisture‑proof sealing.

Made of premium EPDM material, it features excellent weather resistance, ozone resistance and acid‑alkali corrosion resistance. It realizes breathing‑type sealing to balance internal‑external air pressure and avoid sealing failure caused by temperature variation. Widely used for communication cables, coaxial cables and medium‑low voltage power cables, it serves as an ideal sealing solution for cable joints in power and communication industries.

Cold‑Shrink EPDM Tube Selection Chart

Product Dimensions

Part No	Equivalent 3M Part No.	Size D (mm)	Min. OD of Connection (mm)	Max. OD of Connection (mm)	Fully‑recovered Length L (mm)
XQNS25‑8	8425‑8	Φ25	10.0	20.0	203
XQNS25‑11	8425‑11	Φ25	10.0	20.0	280
XQNS25‑12	—	Φ25	10.0	20.0	300
XQNS35‑6	8426‑6	Φ35	14.0	30.0	152
XQNS35‑8	8426‑8	Φ35	14.0	30.0	203
XQNS35‑9	8426‑9	Φ35	14.0	30.0	230
XQNS35‑11	8426‑11	Φ35	14.0	30.0	280
XQNS40‑6	8427‑6	Φ40	17.5	33.0	152
XQNS40‑8	8427‑8	Φ40	17.5	33.0	203
XQNS40‑10	8427‑10	Φ40	17.5	33.0	254
XQNS40‑12	8427‑12	Φ40	17.5	33.0	305
XQNS40‑16	8427‑16	Φ40	17.5	33.0	406
XQNS40‑18	8427‑18	Φ40	17.5	33.0	457
XQNS53‑6	8428‑6	Φ53	25.0	46.0	152
XQNS53‑7	8428‑7	Φ53	25.0	46.0	180
XQNS53‑8	8428‑8	Φ53	25.0	46.0	203
XQNS53‑10	8428‑10	Φ53	25.0	46.0	254
XQNS53‑12	8428‑12	Φ53	25.0	46.0	305
XQNS53‑18	8428‑18	Φ53	25.0	46.0	457
XQNS60‑10	98KC‑21	Φ60	20.5	51.0	254
XQNS70‑6	8429‑6	Φ70	32.0	63.0	152
XQNS70‑7	8429‑7	Φ70	32.0	63.0	180
XQNS70‑9	8429‑9	Φ70	32.0	63.0	230
XQNS70‑12	8429‑12	Φ70	32.0	63.0	305
XQNS70‑13	8429‑13	Φ70	32.0	63.0	330
XQNS70‑14	8429‑14	Φ70	32.0	63.0	355
XQNS70‑18	8429‑18	Φ70	32.0	63.0	457
XQNS80‑13	98KC‑31	Φ80	27.4	70.0	325
XQNS104‑8	8430‑8	Φ104	43.0	94.0	203
XQNS104‑9	8430‑9	Φ104	43.0	94.0	229

Remarks: Custom sizes and colors are available upon customer request.
