Glossy Halogen Free Heat Shrink Tubing 105 Degree Plastic Heat Shrink Tubing RoHS Compliant

Glossy Halogen Free Heat Shrink Tubing

105 Degree Plastic Heat Shrink Tubing

Plastic Heat Shrink Tubing RoHS Compliant

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

ROHS2.0 / REACH

Chat Now

Request A Quote

Product Details

Maximum Operating Temperature:

105℃

Type:

Heat-Shrink Tube

Voltage Rating:

300V Or 600v

Operating Temperature Range:

-55℃ To 105℃

Outer Diameter:

1.5mm–30mm

Shrink Ratio:

2:1

Name:

RoHS Compliant 105℃ Glossy Heat Shrink Tube

Highlight:

Glossy Halogen Free Heat Shrink Tubing

105 Degree Plastic Heat Shrink Tubing

Plastic Heat Shrink Tubing RoHS Compliant

Payment & Shipping Terms

Minimum Order Quantity

200M

Price

0.01-0.2usd/M

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5 work days

Payment Terms

T/T

Supply Ability

8 million M /year

RoHS Compliant 105℃ Glossy Heat Shrink Tube

Product Introduction

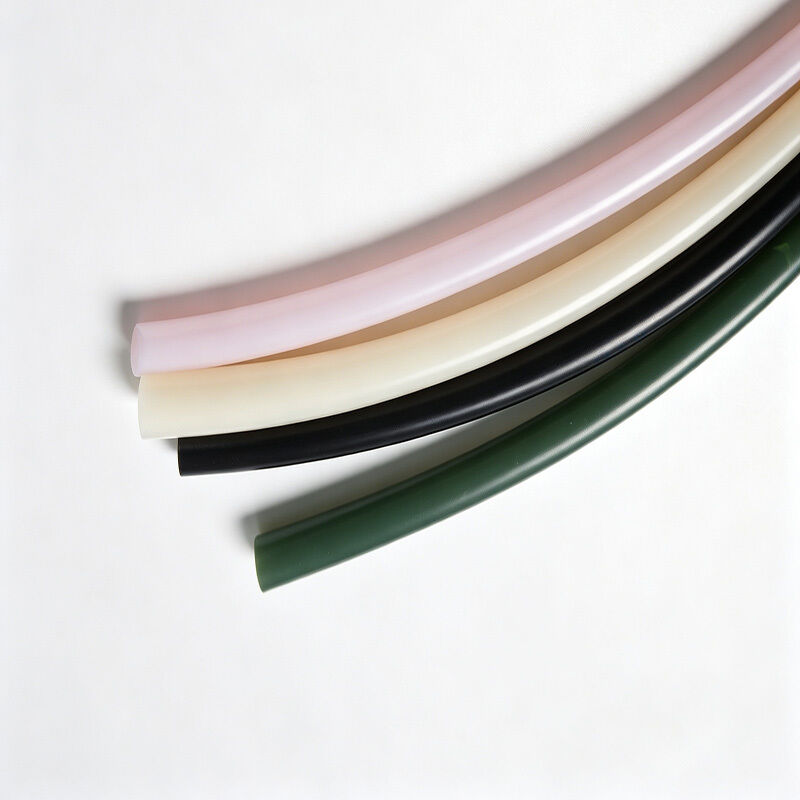

The 105℃ glossy heat-shrink tube is made of radiation-crosslinked polyolefin with a smooth, bright surface and uniform shrinkage.

It features excellent electrical insulation, mechanical protection and abrasion resistance, stable operating temperature range, good flexibility and easy installation.

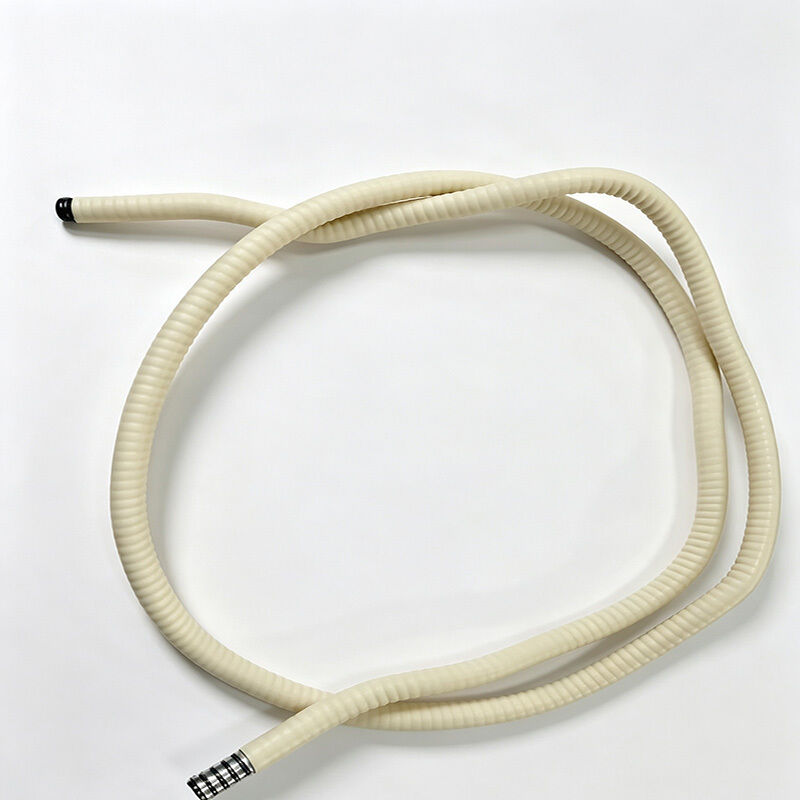

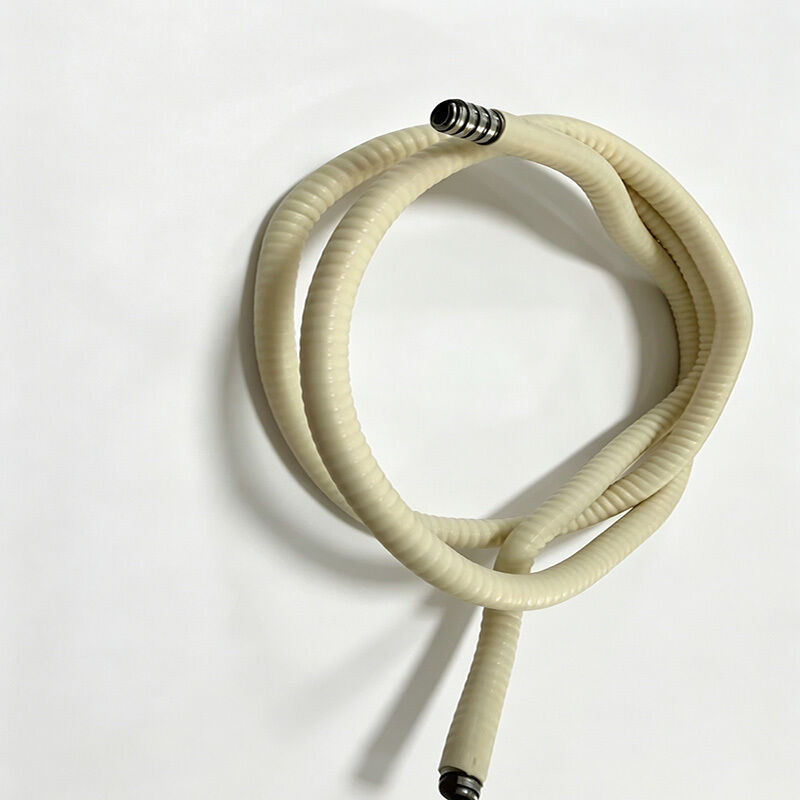

It is suitable for metal hoses, LED flexible strip lights\ general electronic wire harnesses, solder joint insulation and marking protection.

Product Features

Full recovery temperature: ≥ +105°C
Onset shrink temperature: ≥ +70°C
Halogen-free, low smoke, non-toxic and flexible
Environmental compliance standards: RoHS, IPC/JEDEC J-STD-709

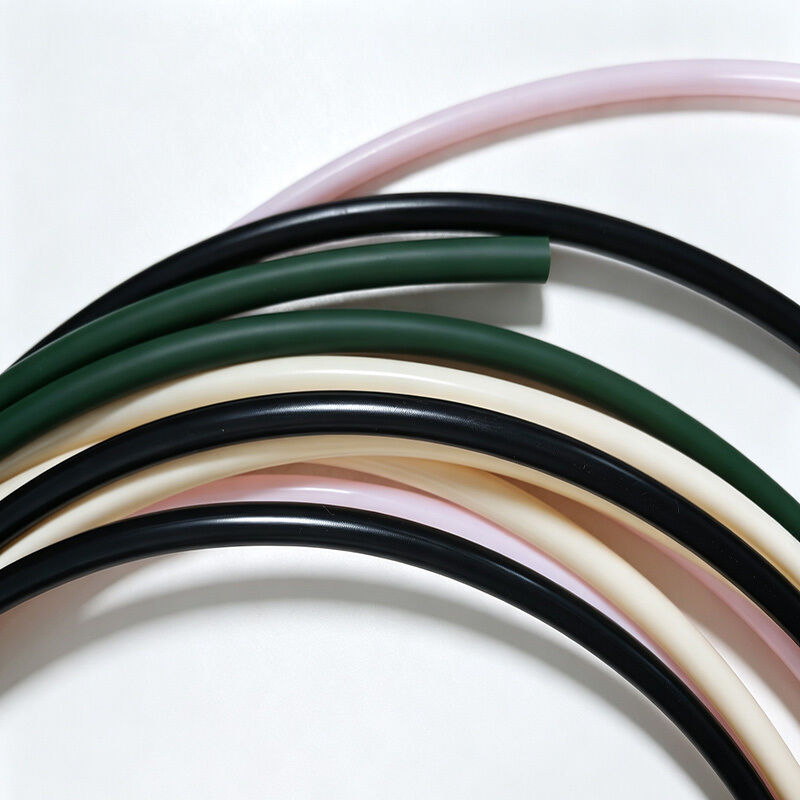

Standard colors: ten international standard colors including transparent, black, white, red, yellow, green, blue, etc.
Operating temperature range: -55°C ~ +105°C
Compliance standards: UL224, CAN/CSA C22.2 No.198.1-99
Shrink ratio: 2:1

Basic Info

	Shrink ratio	2:1
	Standard colors	black, white, red, yellow, green, blue, etc
	Operating temperature range	-55°C ~ +105°C
	Deliver Time	Normally within 3-5 working days after payment.
	Applicable Scope	General electronic wire harnesses, solder joint insulation

Product Parameters

Performance Item	Test Method	Specification Requirement
Tensile strength (MPa)	ASTM D 2671	≥10.4
Elongation at Break (%)	ASTM D 2671	≥200
Dielectric withstand voltage (Rated 600V)	UL 224	2500 V , 60sec, no breakdown
Longitudinal change (%)	ASTM D 2671 Method C	-5 ~ +5
Volume resistivity (Ω·cm)	IEC 60093	≥1×10¹⁴

Product Dimensions

Dimension	Supply inner diameter (mm)	After recovered (mm)		Standard Packing (M/Roll)	Scope of application ( mm)	Specification	Supply inner diameter (mm)	After recovered(mm)		Standard Packing (M/Roll)	Applicable Range (mm)
Dimension	Supply inner diameter (mm)	Inside Diameter	Wall Thickness	Standard Packing (M/Roll)	Scope of application ( mm)	Specification	Supply inner diameter (mm)	Inside Diameter	Wall thickness	Standard Packing (M/Roll)	Applicable Range (mm)
Φ0.5/0.35	0.80±0.20	≤0.35	0.33±0.10	400	0.4~0.5	Φ11/5.50	11.50±0.30	≤5.50	0.56±0.10	100	6.0~10
Φ0.6/0.40	0.90±0.20	≤0.40	0.33±0.10	200	0.5~0.7	Φ12/6.00	12.50±0.30	≤6.00	0.56±0.10	100	6.5~11
Φ0.8/0.50	1.10±0.20	≤0.50	0.33±0.10	200	0.65~0.9	Φ13/6.50	13.50±0.30	≤6.50	0.70±0.10	100	6.7~12
Φ1.0/0.65	1.50±0.20	≤0.65	0.36±0.10	200	0.85~1.1	Φ14/7.00	14.50±0.30	≤7.00	0.70±0.10	100	7.5~13
Φ1.5/0.85	2.00±0.20	≤0.85	0.36±0.10	200	1.0~1.3	Φ15/7.50	15.50±0.40	≤7.50	0.70±0.10	100	8.0~14
Φ2.0/1.00	2.50±0.20	≤1.00	0.45±0.10	200	1.3~1.8	Φ16/8.00	16.50±0.40	≤8.00	0.70±0.10	100	8.5~15
Φ2.5/1.30	3.00±0.20	≤1.30	0.45±0.10	200	1.5~2.3	Φ17/8.50	17.50±0.40	≤8.50	0.70±0.10	100	9.0~16
Φ3.0/1.50	3.50±0.20	≤1.50	0.45±0.10	200	1.8~2.8	Φ18/9.0	19.00±0.50	≤9.00	0.70±0.10	100	10.0~17
Φ3.5/1.80	4.00±0.20	≤1.80	0.45±0.10	200	2.0~3.3	Φ20/10.0	22.00±0.50	≤10.0	0.80±0.15	100	11.0~19
Φ4.0/2.00	4.70±0.20	≤2.00	0.45±0.10	200	2.5~3.8	Φ22/11.0	24.00±0.50	≤11.0	0.80±0.15	100	12.5~22
Φ4.5/2.30	5.00±0.20	≤2.30	0.45±0.10	100	2.5~4.0	Φ25/12.5	26.00±0.50	≤12.5	0.90±0.15	50	14~24
Φ5.0/2.50	5.50±0.20	≤2.50	0.56±0.10	100	3.0~4.5	Φ28/14.0	29.00±0.50	≤14.0	0.90±0.15	50	15~29
Φ6.0/3.00	6.50±0.20	≤3.00	0.56±0.10	100	3.5~5.4	Φ30/15.0	31.50±1.00	≤15.0	1.00±0.15	50	17.5-29
Φ7.0/3.50	7.50±0.30	≤3.50	0.56±0.10	100	4.0~6.3	Φ35/17.5	36.50±1.00	≤17.5	1.00±0.15	50	20-30
Φ8.0/4.00	8.50±0.30	≤4.00	0.56±0.10	100	4.5~7.2	Φ40/20.0	41.50±1.00	≤20.0	1.00±0.15	50	22~35
Φ9.0/4.50	9.50±0.30	≤4.50	0.56±0.10	100	5.0~8.0	Φ45/22.0	46.50±1.50	≤22.5	1.00±0.20	25	25~40
Φ10/5.00	10.50±0.30	≤5.00	0.56±0.10	100	5.5~9.0	Φ50/25.0	≥50	≤25.0	1.10±0.20	25	28~45
