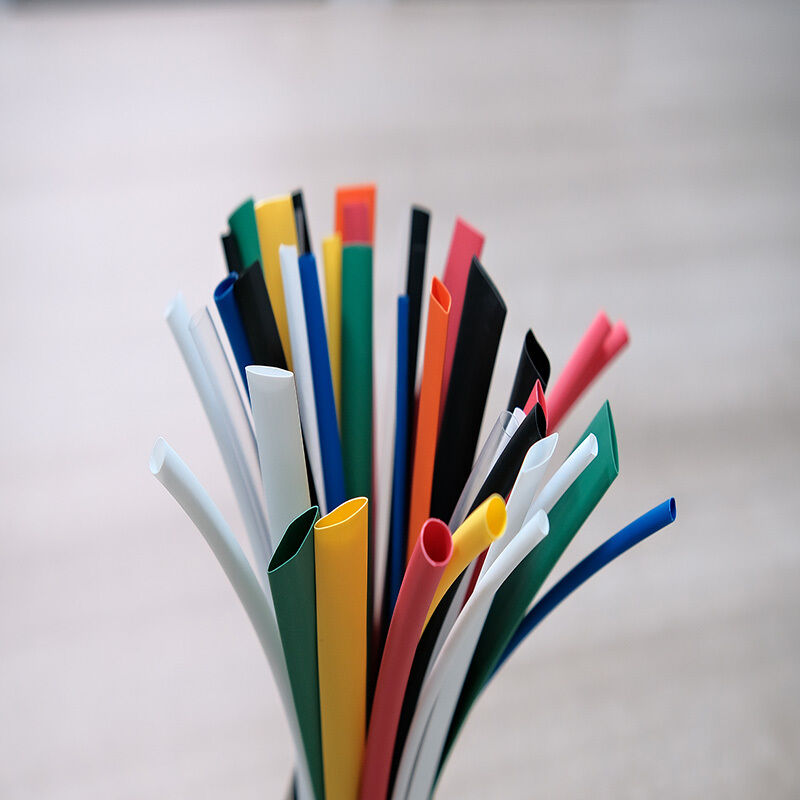

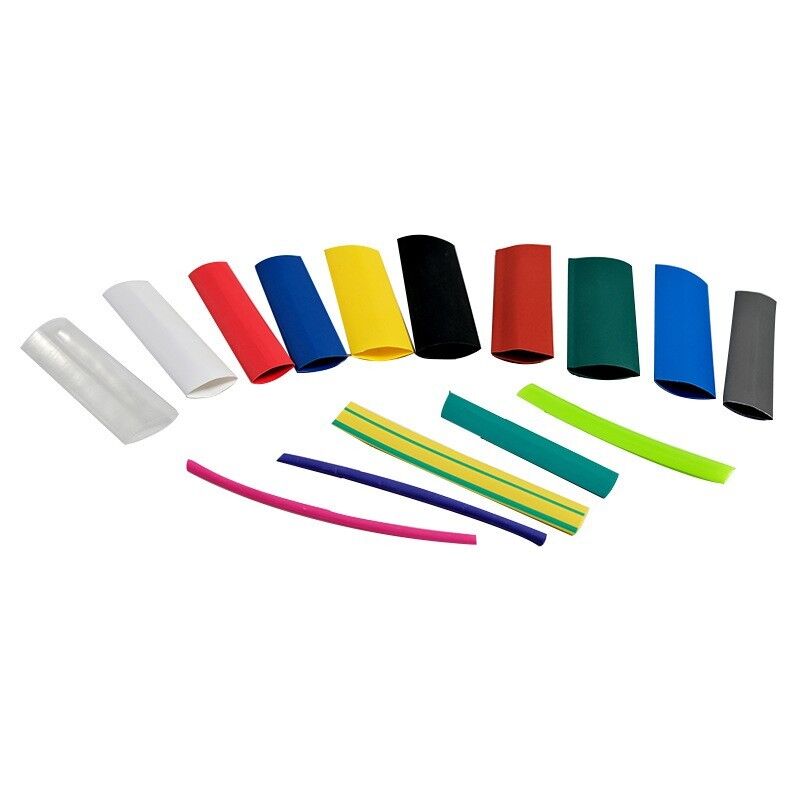

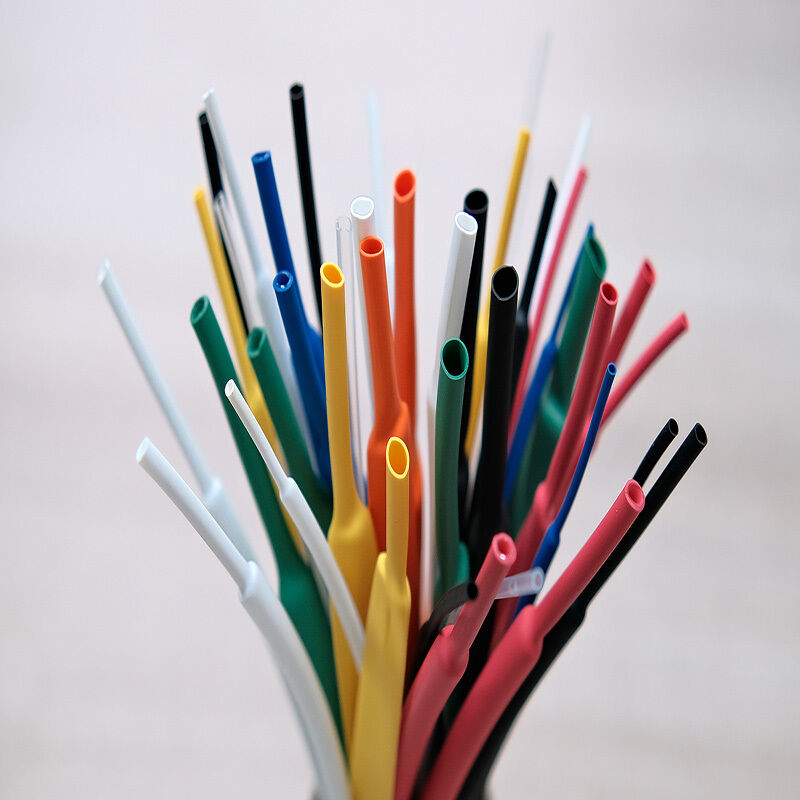

This 150°C halogen-free heat shrink tubing is extruded from high-performance radiation cross-linked polyolefin compound and fully complies with the EURoHS and REACH environmental directives.
With a maximum continuous operating temperature of 150°C, it retains stable physical and electrical properties under long-term high-temperature conditions. It features high dielectric breakdown strength and excellent mechanical toughness, alongside superior resistance to abrasion, moisture and mild chemical corrosion.
It is suitable for wire bundling, insulation isolation, terminal encapsulation and strain relief protection. It achieves uniform radial contraction when heated by hot air guns, industrial ovens or continuous heat tunnels. After shrinking, it fits substrates tightly without voids, gaps or surface defects to form a long-lasting sealed protective layer.
Customization Services :
Customization is available for inner diameter, wall thickness, shrink ratio, cut lengths and special color formulas.
Application Fields :
It is widely used in automotive wiring harnesses, new energy power modules, communication equipment, household appliances and industrial electronic assemblies.
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
Product Features
| Performance | Test Method | Performance Index |
|---|---|---|
| Physical Properties | ||
| Tensile Strength / MPa | UL224 | ≥10.4 |
| Elongation at Break / % | UL224 | ≥200 |
| Tensile Strength after Thermal Aging / MPa | UL224；180℃×168hr | ≥7.3 |
| Elongation at Break after Thermal Aging / % | UL224；180℃×168hr | ≥100 |
| Thermal Shock Resistance | UL224；250℃×4hr | No flowing, cracking or dripping |
| Cold Bend Resistance | UL224；-55℃×1hr | No cracking |
| Electrical Properties | ||
| Withstand Voltage 600V Grade | UL224 | 2500V for 1 min, no breakdown
|
| Dielectric Strength / KV/mm | UL224 | ≥15 |
| Volume Resistivity / Ω•cm | UL224 | ≥1×10¹⁴ |
| Chemical Properties | ||
| Water Absorption / % | ASTM D570 | ≤0.5 |
| Copper Corrosion Resistance | UL224；180℃×168hr | PASS |
| Flame Retardancy | ASTM D2671 C | PASS |
|
Size (mm) |
As Supplied (mm) |
After Recovery (mm) |
Packing |
Applicable Wire OD (mm) |
||
|
Inside Diameter |
Wall Thickness |
Max. Inside Diameter |
Wall Thickness |
Meter/Roll |
||
|
Φ1.0 |
1.50±0.20 |
0.23±0.05 |
≤0.65 |
0.38±0.10 |
200 |
0.75～1.00 |
|
Φ1.5 |
2.00±0.20 |
0.23±0.05 |
≤0.85 |
0.40±0.10 |
200 |
0.95～1.40 |
|
Φ2.0 |
2.50±0.20 |
0.23±0.05 |
≤1.00 |
0.44±0.10 |
200 |
1.10～1.80 |
|
Φ2.5 |
3.00±0.20 |
0.23±0.05 |
≤1.25 |
0.44±0.10 |
200 |
1.40～2.20 |
|
Φ3.0 |
3.50±0.20 |
0.23±0.05 |
≤1.50 |
0.44±0.10 |
200 |
1.65～2.60 |
|
Φ3.5 |
4.00±0.20 |
0.23±0.05 |
≤1.75 |
0.44±0.10 |
200 |
1.95～3.00 |
|
Φ4.0 |
4.50±0.20 |
0.25±0.05 |
≤2.00 |
0.44±0.10 |
200 |
2.20～3.40 |
|
Φ4.5 |
5.00±0.20 |
0.28±0.05 |
≤2.25 |
0.44±0.10 |
100 |
2.50～3.80 |
|
Φ5.0 |
5.50±0.20 |
0.28±0.05 |
≤2.50 |
0.56±0.10 |
100 |
2.80～4.20 |
|
Φ6.0 |
6.50±0.20 |
0.28±0.05 |
≤3.00 |
0.56±0.10 |
100 |
3.30～5.00 |
|
Φ7.0 |
7.50±0.30 |
0.30±0.05 |
≤3.50 |
0.56±0.10 |
100 |
3.90～5.75 |
|
Φ8.0 |
8.50±0.30 |
0.30±0.08 |
≤4.00 |
0.56±0.10 |
100 |
4.40～6.50 |
|
Φ9.0 |
9.50±0.30 |
0.30±0.08 |
≤4.50 |
0.56±0.10 |
100 |
5.00～7.30 |
|
Φ10 |
10.50±0.30 |
0.30±0.08 |
≤5.00 |
0.56±0.10 |
100 |
5.50～8.10 |
|
Φ11 |
11.50±0.30 |
0.30±0.08 |
≤5.50 |
0.56±0.10 |
100 |
6.10～8.90 |
|
Φ12 |
12.50±0.40 |
0.30±0.08 |
≤6.00 |
0.56±0.10 |
100 |
6.60～9.60 |
|
Φ13 |
13.50±0.40 |
0.35±0.08 |
≤6.50 |
0.69±0.10 |
100 |
7.20～10.4 |
|
Φ14 |
14.50±0.40 |
0.35±0.10 |
≤7.00 |
0.69±0.10 |
100 |
7.70～11.2 |
|
Φ15 |
15.50±0.40 |
0.35±0.10 |
≤7.50 |
0.69±0.10 |
100 |
8.30~12.00 |
|
Φ16 |
16.50±0.40 |
0.35±0.10 |
≤8.00 |
0.69±0.10 |
100 |
8.80~12.80 |
|
Φ17 |
17.50±0.40 |
0.35±0.10 |
≤8.50 |
0.69±0.10 |
100 |
9.40~13.60 |
|
Φ18 |
19.20±0.50 |
0.35±0.10 |
≤9.00 |
0.77±0.10 |
100 |
9.90~14.90 |
|
Φ20 |
22.00±0.50 |
0.40±0.10 |
≤10.00 |
0.77±0.10 |
100 |
11.00~17.20 |
|
Φ22 |
24.00±0.60 |
0.40±0.12 |
≤11.00 |
0.77±0.10 |
100 |
12.10~18.70 |
|
Φ25 |
26.00±0.60 |
0.45±0.12 |
≤12.50 |
0.87±0.15 |
50 |
13.80~20.30 |
|
Φ28 |
29.00±0.60 |
0.45±0.12 |
≤14.00 |
0.87±0.15 |
50 |
15.40~22.70 |
