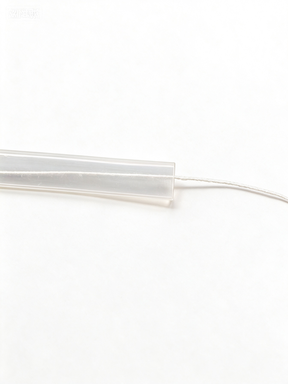

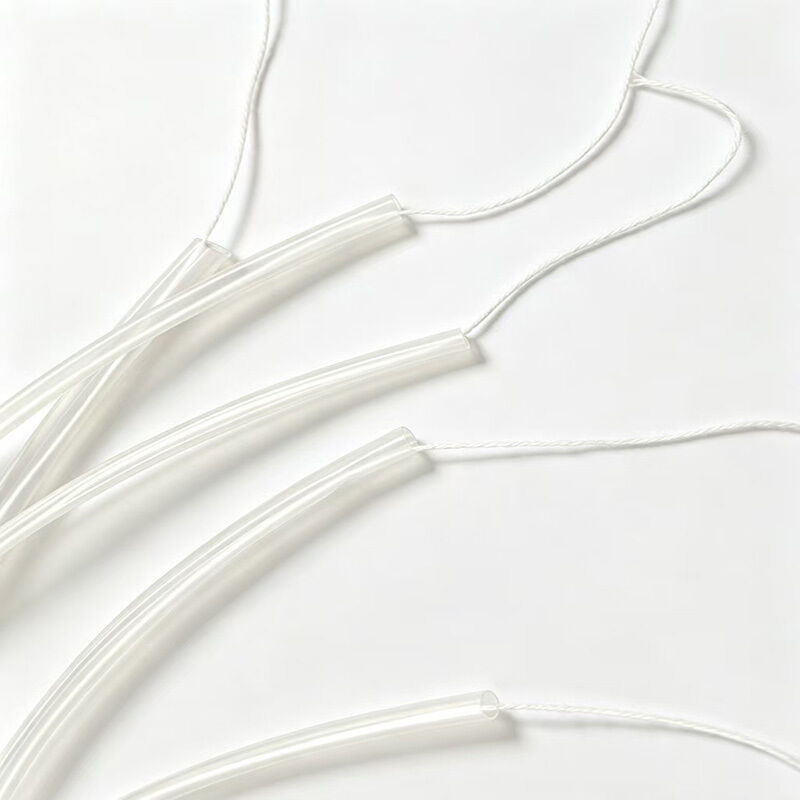

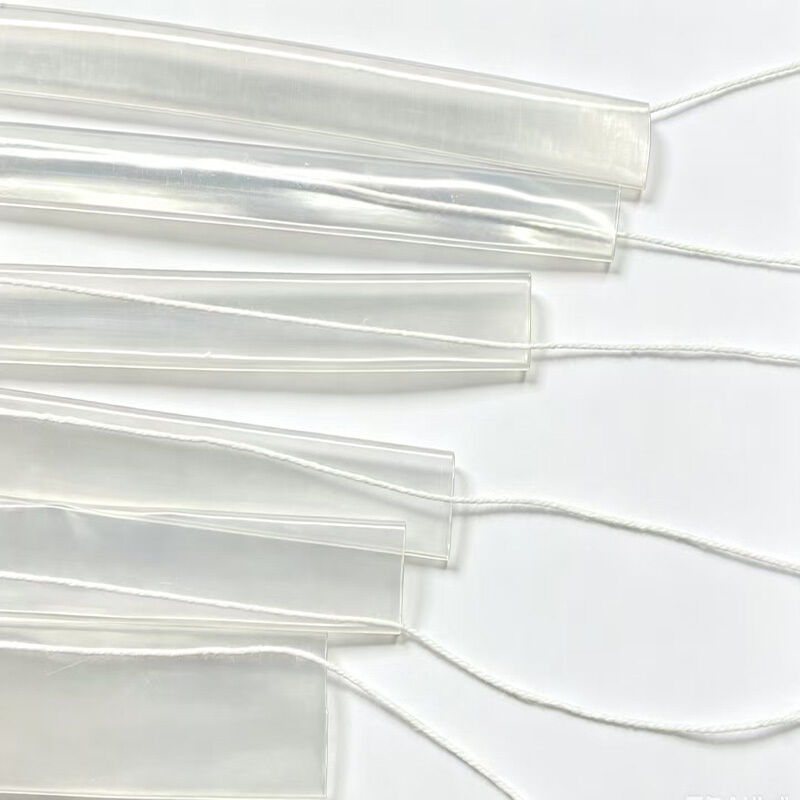

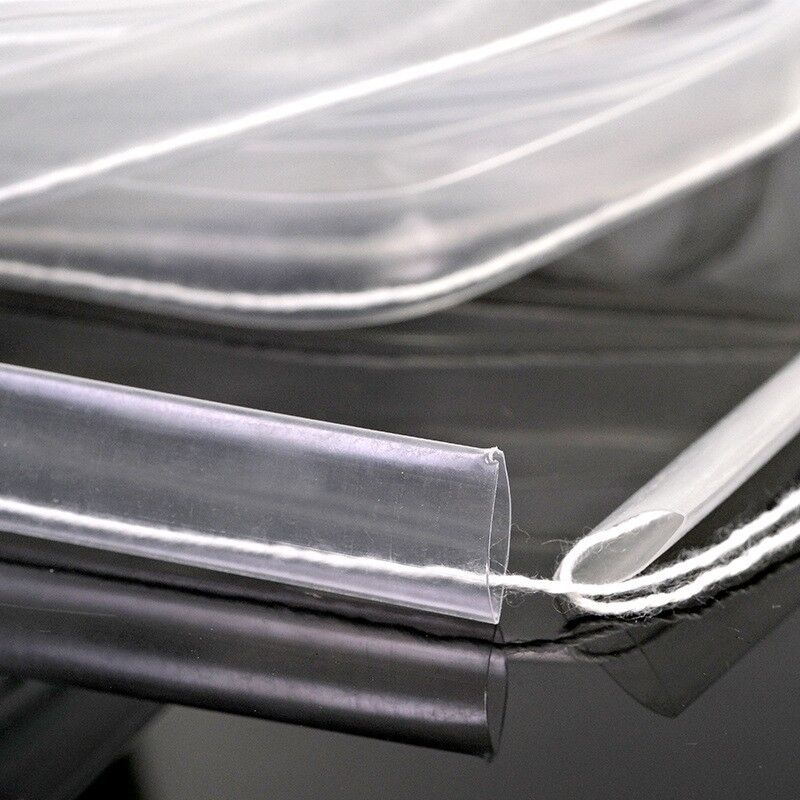

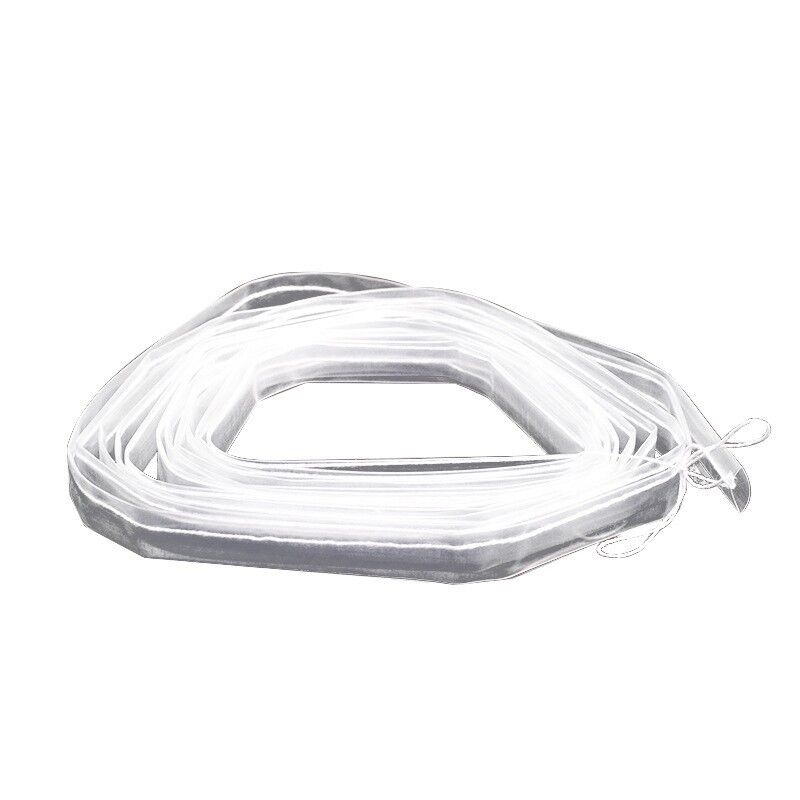

Highly Transparent Lined Flexible Heat Shrink Tubing
Product Introduction
This high-transparency flexible heat shrinkable sleeve is made of polyolefin base material through advanced electron beam radiation cross-linking process. It integrates outstanding overall performance: ultra-high light transmittance, superior softness & toughness, high dielectric insulation, excellent flex resistance and great weathering resistance.
Conventional transparent heat shrink tubing features rigid texture, high haze value, and tends to turn white or crack after shrinking. In contrast, this product closely clings to wire surfaces post shrinkage without hardening or embrittlement. Internal conductors, solder terminals and wiring layout are fully visible, simplifying subsequent maintenance and quality inspection.
Adopting full eco-friendly compound formula, this sleeve is halogen-free and non-toxic. It serves as an optimal flexible heat shrink sleeve for high-end transparent wire harness protection, visual insulation shielding and precision circuit encapsulation.
This product is mainly used for insulation protection of LED rigid and flexible light strips, with wide application across electronic insulation sectors. It delivers stable insulation, dust-proof and anti-aging protection for LED light strips, significantly boosting product durability and service life.
Custom sizes,colors and cut lengths are supported to fit various products and application scenarios.
|
Model |
Length(m) |
Length(m) |
Length(m) |
Length(m) |
Length(m) |
|
Size ≥ 2.5mm |
3 |
5 |
10 |
25 |
50 |
Product Dimensions:
】
Heavy-duty type
|
Dimension |
As Supplied(mm) |
Fully‑Recovered Dimension(mm) |
Standard Packaging (M) |
Application Range(mm) |
||
|
Inner Diameter(D) |
Average Wall Thickness(T) |
Inner Diameter(D) |
Average Wall Thickness(t) |
|||
|
Φ0.6 |
0.8±0.2 |
0.15±0.08 |
≤0.40 |
0.26±0.06 |
200±2 |
0.4-0.7 |
|
Φ0.7 |
1.1±0.3 |
0.15±0.06 |
≤0.45 |
0.33±0.06 |
200±2 |
0.5-0.7 |
|
Φ0.8 |
1.3±0.2 |
0.18±0.08 |
≤0.50 |
0.33±0.06 |
200±2 |
0.6-0.8 |
|
Φ1.0 |
1.5±0.2 |
0.18±0.05 |
≤0.65 |
0.36±0.08 |
400±2 |
0.75-0.9 |
|
Φ1.5 |
2.0±0.2 |
0.20±0.08 |
≤0.85 |
0.40±0.08 |
400±2 |
0.95-1.4 |
|
Φ2.0 |
2.5±0.2 |
0.20±0.08 |
≤1.00 |
0.42±0.08 |
400±2 |
1.1-1.8 |
|
Φ2.5 |
3.0±0.2 |
0.22±0.08 |
≤1.25 |
0.42±0.08 |
400±2 |
1.35-2.3 |
|
Φ3.0 |
3.5±0.3 |
0.25±0.10 |
≤1.5 |
0.46±0.08 |
400±2 |
1.6-2.7 |
|
Φ3.5 |
4.0±0.3 |
0.25±0.10 |
≤1.75 |
0.46±0.08 |
400±2 |
1.85-3.2 |
|
Φ4.0 |
4.5±0.3 |
0.25±0.10 |
≤2.0 |
0.48±0.08 |
400±2 |
2.1-3.6 |
|
Φ4.5 |
5.0±0.3 |
0.25±0.10 |
≤2.25 |
0.50±0.10 |
200±1 |
2.35-4.0 |
|
Φ5.0 |
5.5±0.4 |
0.25±0.10 |
≤2.5 |
0.50±0.10 |
200±1 |
2.6-4.5 |
|
Φ5.5 |
6.0±0.4 |
0.25±0.10 |
≤2.75 |
0.50±0.10 |
200±1 |
2.8-5.5 |
|
Φ6.0 |
6.5±0.4 |
0.28±0.12 |
≤3.0 |
0.56±0.10 |
200±1 |
3.1-5.4 |
|
Φ6.5 |
7.0±0.4 |
0.28±0.12 |
≤3.25 |
0.56±0.10 |
200±1 |
3.2-6.0 |
|
Φ7.0 |
7.5±0.4 |
0.30±0.12 |
≤3.5 |
0.55±0.10 |
100±1 |
3.7-6.3 |
|
Φ8.0 |
8.5±0.5 |
0.30±0.12 |
≤4.0 |
0.60±0.10 |
100±1 |
4.2-7.2 |
|
Φ9.0 |
9.5±0.5 |
0.30±0.12 |
≤4.5 |
0.60±0.10 |
100±1 |
4.7-8.0 |
|
Φ10 |
10.5±0.5 |
0.30±0.12 |
≤5.0 |
0.60±0.10 |
100±1 |
5.2-9.0 |
|
Φ11 |
11.5±0.5 |
0.30±0.12 |
≤5.5 |
0.60±0.10 |
100±1 |
5.7-10 |
|
Φ12 |
12.5±0.5 |
0.30±0.12 |
≤6.0 |
0.60±0.10 |
100±1 |
6.2-11 |
|
Φ13 |
13.5±0.5 |
0.36±0.12 |
≤6.5 |
0.65±0.12 |
100±1 |
6.7-12 |
|
Φ14 |
14.5±0.5 |
0.36±0.12 |
≤7.0 |
0.65±0.12 |
100±1 |
7.3-13 |
|
Φ15 |
15.5±0.5 |
0.36±0.12 |
≤7.5 |
0.65±0.12 |
100±1 |
7.8-14 |
|
Φ16 |
16.5±0.5 |
0.36±0.12 |
≤8.0 |
0.65±0.12 |
100±1 |
8.3-15 |
|
Φ17 |
17.5±0.5 |
0.36±0.12 |
≤8.5 |
0.65±0.12 |
100±1 |
8.8-16 |
|
Φ18 |
18.7±0.6 |
0.40±0.15 |
≤9.0 |
0.70±0.12 |
100±1 |
9.3-17 |
|
Φ20 |
20.7±0.6 |
0.40±0.15 |
≤10.0 |
0.75±0.15 |
100±1 |
10.4-19 |
|
Φ22 |
23.0±0.7 |
0.40±0.08 |
≤11.0 |
0.80±0.15 |
100±1 |
11.4-21 |
|
Φ25 |
25.7±0.7 |
0.40±0.15 |
≤12.5 |
0.90±0.15 |
50±0.5 |
12.8-24 |
|
Φ28 |
29.0±0.7 |
0.45±0.20 |
≤14.0 |
0.90±0.20 |
50±0.5 |
14.4-29 |
Thin-wall type
|
Dimension |
As Supplied(mm) |
Fully‑Recovered Dimension((mm) |
Standard Packaging M |
Application Range(mm) |
||
|
Inner Diameter(D) |
Average Wall Thickness(T) |
Inner Diameter(D) |
Average Wall Thickness(t) |
|||
|
Φ0.6 |
0.8±0.2 |
0.10±0.06 |
≤0.40 |
0.25±0.06 |
200±2 |
0.4-0.7 |
|
Φ0.7 |
0.9±0.3 |
0.10±0.06 |
≤0.40 |
0.25±0.06 |
200±2 |
0.5-0.7 |
|
Φ0.8 |
1.1±0.3 |
0.10±0.05 |
≤0.45 |
0.25±0.06 |
200±2 |
0.6-0.8 |
|
Φ1.0 |
1.5±0.3 |
0.10±0.05 |
≤0.60 |
0.25±0.06 |
400±2 |
0.75-0.9 |
|
Φ1.5 |
2.0±0.3 |
0.10±0.05 |
≤0.80 |
0.25±0.06 |
400±2 |
0.95-1.4 |
|
Φ2.0 |
2.5±0.3 |
0.13±0.06 |
≤1.00 |
0.28±0.06 |
400±2 |
1.1-1.8 |
|
Φ2.5 |
3.0±0.3 |
0.15±0.06 |
≤1.25 |
0.28±0.06 |
400±2 |
1.35-2.3 |
|
Φ3.0 |
3.5±0.3 |
0.15±0.06 |
≤1.50 |
0.30±0.06 |
400±2 |
1.6-2.7 |
|
Φ3.5 |
4.0±0.3 |
0.15±0.06 |
≤1.75 |
0.30±0.06 |
400±2 |
1.85-3.2 |
|
Φ4.0 |
4.5±0.3 |
0.15±0.06 |
≤2.0 |
0.30±0.06 |
400±2 |
2.1-3.6 |
|
Φ4.5 |
5.0±0.3 |
0.15±0.06 |
≤2.25 |
0.30±0.06 |
200±1 |
2.35-4.0 |
|
Φ5.0 |
5.5±0.3 |
0.15±0.08 |
≤2.5 |
0.30±0.06 |
200±1 |
2.6-4.5 |
|
Φ5.5 |
6.0±0.4 |
0.15±0.08 |
≤2.75 |
0.30±0.06 |
200±1 |
2.8-5.5 |
|
Φ6.0 |
6.5±0.4 |
0.15±0.08 |
≤3.0 |
0.30±0.06 |
200±1 |
3.1-5.4 |
|
Φ6.5 |
7.0±0.4 |
0.18±0.08 |
≤3.25 |
0.36±0.08 |
200±1 |
3.2-6.0 |
|
Φ7.0 |
7.5±0.4 |
0.18±0.08 |
≤3.5 |
0.36±0.08 |
100±1 |
3.7-6.3 |
|
Φ8.0 |
8.5±0.4 |
0.18±0.08 |
≤4.0 |
0.36±0.08 |
100±1 |
4.2-7.2 |
|
Φ9.0 |
9.5±0.4 |
0.18±0.08 |
≤4.5 |
0.36±0.08 |
100±1 |
4.7-8.0 |
|
Φ10 |
10.5±0.4 |
0.18±0.08 |
≤5.0 |
0.36±0.08 |
100±1 |
5.2-9.0 |
|
Φ11 |
11.5±0.5 |
0.18±0.08 |
≤5.5 |
0.36±0.08 |
100±1 |
5.7-10 |
|
Φ12 |
12.5±0.5 |
018±0.08 |
≤6.0 |
0.36±0.08 |
100±1 |
6.2-11 |
|
Φ13 |
13.5±0.5 |
0.18±0.08 |
≤6.5 |
0.40±0.10 |
100±1 |
6.7-12 |
|
Φ14 |
14.5±0.5 |
0.20±0.08 |
≤7.0 |
0.40±0.10 |
100±1 |
7.3-13 |
|
Φ15 |
15.5±0.5 |
0.20±0.08 |
≤7.5 |
0.40±0.10 |
100±1 |
7.8-14 |
|
Φ16 |
16.5±0.5 |
0.22±0.10 |
≤8.0 |
0.40±0.10 |
100±1 |
8.3-15 |
|
Φ17 |
17.5±0.5 |
0.22±0.10 |
≤8.5 |
0.40±0.10 |
100±1 |
8.8-16 |
|
Φ18 |
18.7±0.6 |
0.22±0.12 |
≤9.0 |
0.42±0.10 |
100±1 |
9.3-17 |
|
Φ20 |
20.7±0.6 |
0.25±0.12 |
≤10.0 |
0.45±0.10 |
100±1 |
10.4-19 |
|
Φ22 |
23.0±0.7 |
0.25±0.15 |
≤11.0 |
0.45±0.10 |
100±1 |
11.4-21 |
|
Φ25 |
25.7±0.7 |
0.25±0.15 |
≤12.5 |
0.45±0.10 |
50±0.5 |
12.8-24 |
|
Φ28 |
29.0±0.7 |
0.28±0.15 |
≤14.0 |
0.45±0.10 |
50±0.5 |
14.4-29 |
|
Φ30 |
31.0±0.7 |
0.28±0.15 |
≤15.0 |
0.45±0.10 |
50±0.5 |
16-29 |
Remarks: Custom sizes are available upon customer request.
