Place of Origin:
Shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS2.0

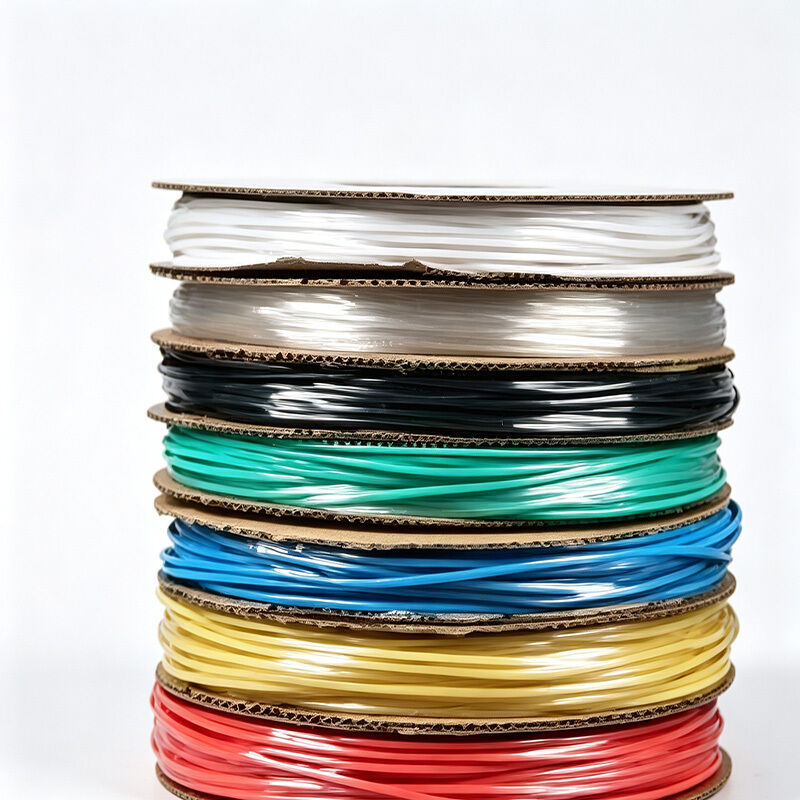

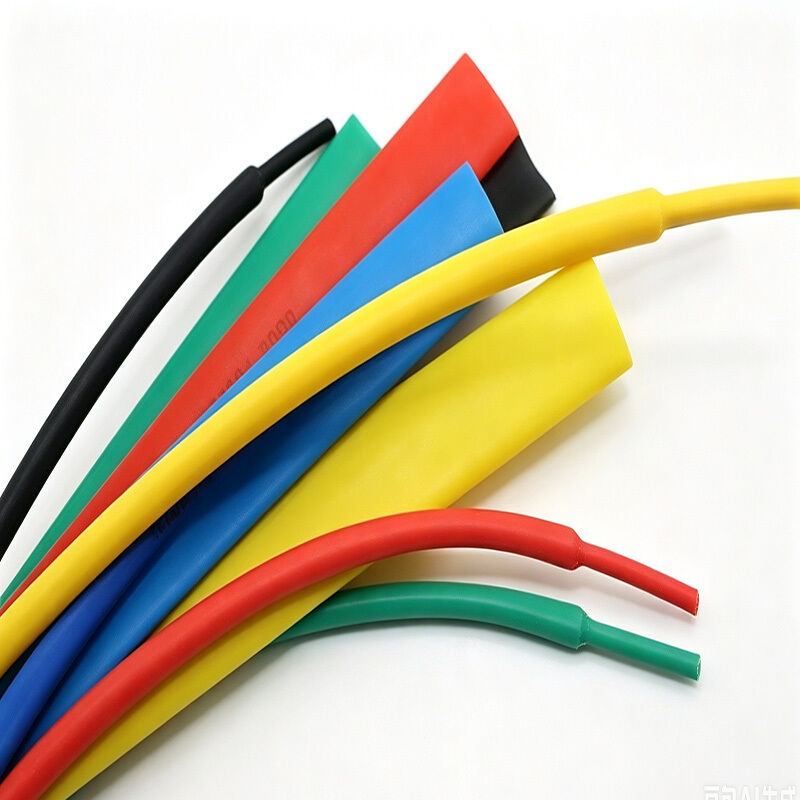

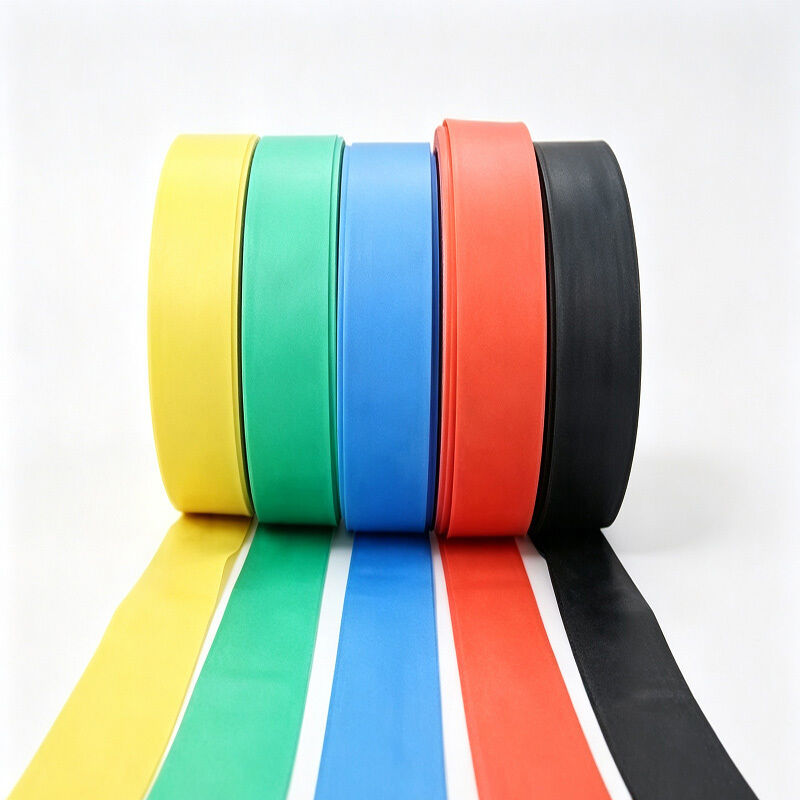

Fabricated from radiation cross-linked polyolefin compound, our 135°C RoHS & halogen-free heat shrink tubing features outstanding physical, chemical and dielectric characteristics. This product offers comprehensive protective solutions, such as wire harness bundling, electrical insulation for terminals and connectors, anti-rust & anti-corrosion encapsulation over solder joints, as well as mechanical strain relief. It is a preferred protective component extensively adopted in electronic assemblies, telecommunication devices, automotive wiring systems, marine equipment and aerospace component production.
lConforms to specification AMS-DTL-23053/5; compatible with UL224 and CAN/CSA C22.2 No.198.1-99
lShrink ratio: 2:1
lOnset recovery temperature: ≥ +84°C
l Full recovery temperature: ≥ +120°C
lOperating temperature range: -55°C to +135°C
lExcellent flexibility and elasticity, flame retardant property
l Environmentally compliant with RoHS directive
lStandard colors: Black, red, yellow, blue plus ten internationally recognized standard colors (Clear tubing version is non-flame retardant)
Basic Info
|
|
Shrink ratio |
2:1 |
|
Standard colors |
black, white, red, yellow, green, blue, etc |
|
|
Material |
Polyethylene |
|
|
Application |
Communication industry, Machine Protection, Wire & Cable Protection |
Product Parameters
|
Performance Item |
Test Method |
Specification Requirement |
|
Tensile Strength (MPa) |
ASTM D 2671 |
≥10.4 |
|
Elongation at Break (%) |
ASTM D 2671 |
≥200 |
|
Tensile Strength after Thermal Aging (MPa) |
158°C × 168h |
≥7.3 |
|
Elongation at Break after Thermal Aging (%) |
158°C × 168h aging per ASTM D 2671 |
≥100 |
|
Withstand Voltage (Rated 300V) |
UL 224 |
2500 V , 60sec, no breakdown |
|
Dielectric Strength (Alternative to Withstand Voltage) (kV/mm) |
ASTM D 149 |
≥15 |
|
Longitudinal Change (%) |
ASTM D 2671 |
-5 ~ +5 |
|
Flame Retardancy |
ASTM D 2671 Method C |
Vw-1 |
|
Volume Resistivity (Ω·cm) |
IEC 60093 |
≥10¹⁴ |
Product Dimensions:
|
Dimension( mm) |
Original dimension(mm) |
Fully shrunk dimension(mm) |
Packing |
Applications |
||
|
Inner Diameter |
Max Pre-shrink |
Wall Thickness |
m/reel |
mm |
||
|
3/64 |
Φ1.0 |
≥1.20 |
≤0.60 |
0.41±0.10 |
200 |
0.70~0.95 |
|
1/ /16 |
Φ1.5 |
≥1.60 |
≤0.80 |
0.41±0.10 |
200 |
0.95~1.25 |
|
3/ /32 |
Φ2.0 |
≥2.40 |
≤1.20 |
0.51±0.10 |
200 |
1.35~1.90 |
|
1/8 |
Φ3.0 |
≥3.20 |
≤1.60 |
0.51±0.10 |
200 |
1.80~2.55 |
|
3/ /16 |
Φ4.5 |
≥4.80 |
≤2.40 |
0.51±0.10 |
100 |
2.65~3.80 |
|
1/4 |
Φ6.0 |
≥6.40 |
≤3.20 |
0.64±0.10 |
100 |
3.55~5.10 |
|
3/8 |
Φ9.0 |
≥9.50 |
≤4.80 |
0.64±0.10 |
100 |
5.30~7.60 |
|
1/2 |
Φ12 |
≥12.70 |
≤6.40 |
0.64±0.10 |
100 |
7.10~10.11 |
|
3/4 |
Φ18 |
≥19.10 |
≤9.50 |
0.76±0.15 |
100 |
0.50~15.21 |
|
1 |
Φ25 |
≥25.40 |
≤12.70 |
0.89±0.15 |
50 |
4.00~20.31 |
|
1-1/4 |
Φ32 |
≥32.00 |
≤15.90 |
0.89±0.15 |
50 |
7.50~25.62 |
|
1-/2 |
Φ38 |
≥38.00 |
≤19.10 |
1.00±0.15 |
50 |
1.00~30.42 |
|
2 |
Φ50 |
≥51.00 |
≤25.40 |
1.15±0.15 |
25 |
8.00~40.84 |
|
3 |
Φ75 |
≥76.00 |
≤38.10 |
1.27±0.20 |
25 |
2.00~60.85 |
|
4 |
Φ100 |
≥102.00 |
≤50.80 |
1.40±0.20 |
25 |
6.00~81:60 |
|
5 |
Φ120 |
≥125.00 |
≤63.50 |
1.40±0.25 |
25 |
70.00~100.00 |
Remarks: Custom sizes and colors are available upon customer request.
