Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0

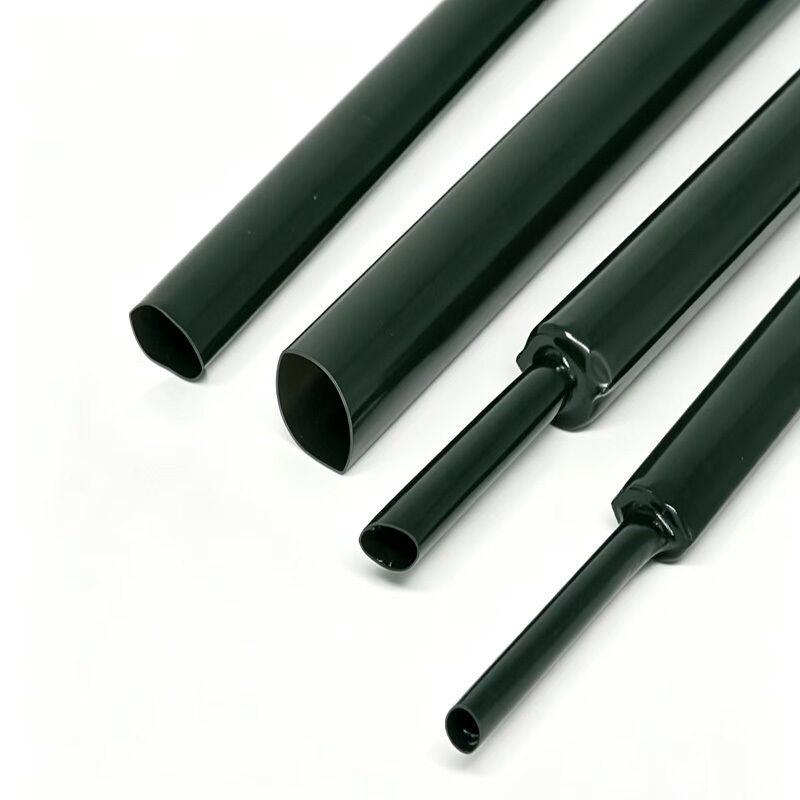

This fluororubber heat‑shrinkable tubing possesses exceptional high‑temperature tolerance and superior resistance to various chemical corrosives. Even sustained under elevated‑temperature working conditions, it can maintain stable physical performance and deliver dependable shielding against acids, solvents and aggressive chemical substances. It will not easily degrade, crack or lose its protective function upon long‑term exposure to harsh high‑temperature‑chemical combined environments. The tubing maintains good insulation and surface integrity, offering long‑term reliable insulation and corrosion protection for cables, harnesses and components operating in rigorous industrial conditions.
| XQ-200E Fluororubber Heat Shrink Tubing | Dimensions | Inner Diameter Tolerance | After Shrinking, Nominal(mm) | Tube shape |
Standard Package (m/spool |
||
| mm | Inch | Min. ID Before Shrinking(mm) | Max. ID Before Shrinking(mm) | ||||
| XQ-200E3.2/1.6 | 1/8 | 3.2 | 1.6 | 0.76 | O | 50 | |
| XQ-200E4.8/2.4 | 3/16 | 4.8 | 2.4 | 0.90 | O | 50 | |
| XQ-200E6.4/3.2 | 1/4 | 6.4 | 3.2 | 0.90 | O | 50 | |
| XQ-200E9.5/4.8 | 3/8 | 9.5 | 4.8 | 0.90 | O | 50 | |
| XQ-200E 12.7/6.4 | 1/2 | 12.7 | 6.4 | 1.10 | O | 30 | |
| XQ-200E19.1/9.5 | 3/4 | 19.1 | 69.5 | 1.30 | - | 30 | |
| XQ-200E25.4/12.7 | 1 | 25.4 | 12.7 | 1.65 | - | 30 | |
| XQ-200E38.1/19.12 | 11/2 | 38.1 | 19.1 | 1.90 | - | 15 | |
| XQ-200E50.8/25.4 | 2 | 50.8 | 25.4 | 2.80 | - | 1m | |
| XQ-200E(TW) Fluororubber Heat Shrink Tubing | Dimensions | Inner Diameter Tolerance | After Shrinking, Nominal(mm) | Tube shape |
Standard Package m/spool |
||
| mm | Inch | Min. ID Before Shrinking(mm) | Max. ID Before Shrinking(mm) | ||||
| XQ -200E(TW)9.5/4.8 | 1/8 | 9.5 | 4.8 | 0.90 | O | 50 | |
| XQ -200E(TW)12.7/6.4 | 1/2 | 12.7 | 6.4 | 0.90 | O | 30 | |
| XQ-200E(TW)15.9/7.9 | 5/8 | 15.9 | 7.9 | 1.07 | O | 50 | |
| XQ-200E(TW)19.1/9.5 | 3/4 | 19.1 | 9.5 | 1.07 | - | 30 | |
| XQ-200E(TW)22/11 | 7/8 | 22 | 11 | 1.25 | - | 30 | |
| XQ -200E(TW)25.4/12.7 | 1 | 25.4 | 12.7 | 1.25 | - | 30 | |
| XQ -200E(TW)31.8/15.7 | 11/2 | 31.8 | 15.7 | 1.40 | - | 30 | |
| XQ -200E(TW)38.1/19 | 11/4 | 38.1 | 19.0 | 1.40 | - | 15 | |
| XQ-200E(TW) 50.8/25.4 | 2 | 50.8 | 25.4 | 1.65 | - | 15 | |
O:Round - : Flat
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
Remarks: Custom sizes and colors are available upon customer request.
