Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQI
Certification:
ROHS2.0/HF/REACH/UL

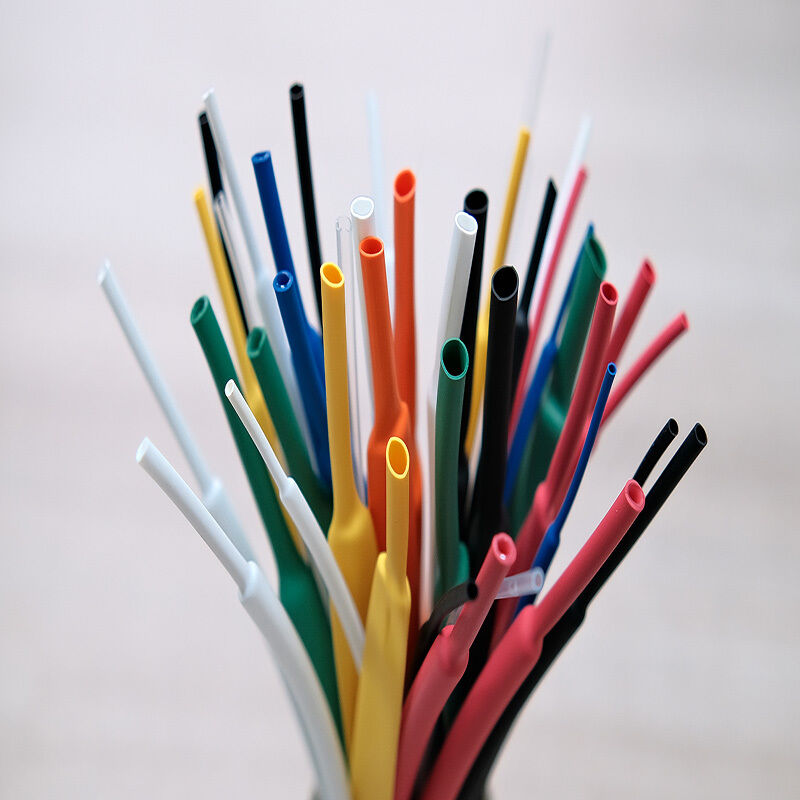

Our 125°C eco-friendly heat shrink tubing adopts high-quality environmentally safe materials, complying with RoHS standards. It boasts stable high-temperature resistance, outstanding electrical insulation, wear and corrosion resistance. When heated, the tube tightly wraps around wires, connectors and components for bundling, insulation and anti-corrosion protection. We support customized specifications including inner diameter, wall thickness, length and multiple colors to fit automotive, electronic, communication and household wiring scenarios.
Product Features :
l High temperature resistance up to 125°C, stable performance under long-term heating
l RoHS eco-friendly material, non-toxic and pollution-free
l Excellent electrical insulation, effectively prevent short circuit
l Good abrasion, moisture and chemical corrosion resistance
l Fast and uniform shrinkage, closely fit wires and connectors after heating

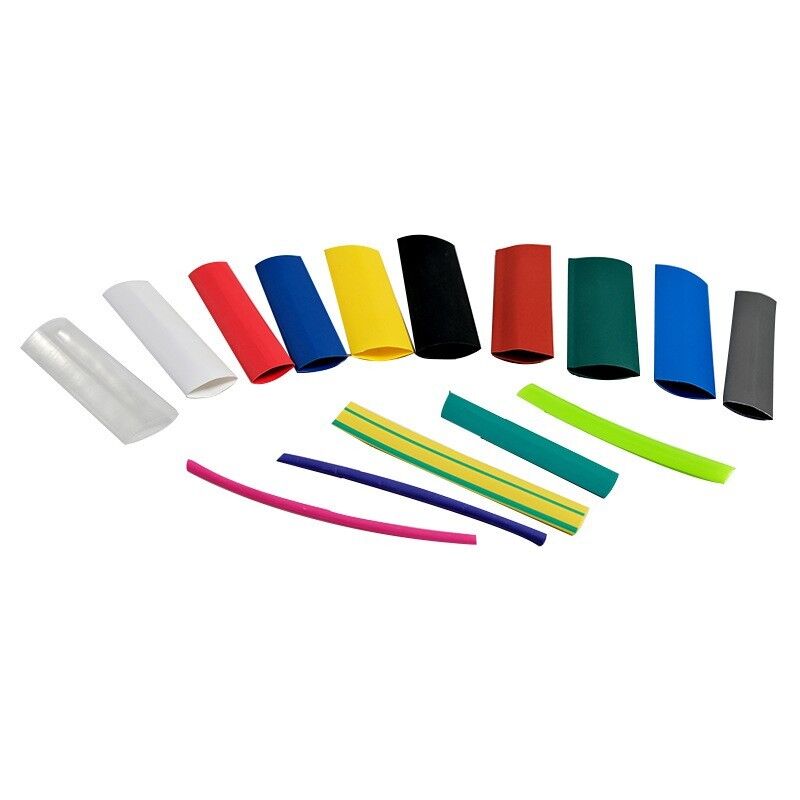

l Multiple optional colors, customizable sizes (inner diameter, wall thickness, length)
l Wide application for electronics, communication, automotive and home appliance wiring
Basic Info
|
|
Shrink ratio |
2:1/3:1 |
|
Standard colors |
black, white, red, yellow, green, blue, etc |
|
|
Material |
Polyethylene |
|
|
Application |
Communication industry, Machine Protection, Wire & Cable Protection |
Product Parameters
|
Performance Item |
Test Method |
Specification Requirement |
|
Tensile strength (MPa) |
ASTM D 2671 |
≥10.4 |
|
Elongation at Break (%) |
ASTM D 2671 |
≥200 |
|
Dielectric withstand voltage (Rated 300V) |
UL 224 |
1500 V , 60sec, no breakdown |
|
Longitudinal change (%) |
ASTM D 2671 |
-5 ~ +5 |
|
Volume resistivity (Ω·cm) |
IEC 60093 |
≥1×10¹⁴ |
Product Dimensions
Engineering Picture of shrinkable TUBE
General Grade Heat Shrink Tubing, Rated 600V
|
Size |
As Supplied(mm) |
After Recovery(mm) |
Packing Length(M/Roll) |
||
|
Inside Dia(D) |
Wall Thick(T) |
Inside Dia(D) |
Wall Thick(T) |
||
|
Φ0.6 |
0.9±0.2 |
0.15±0.03 |
≤0.40 |
0.28±0.06 |
200±2 |
|
Φ0.7 |
0.9±0.2 |
0.15±0.03 |
≤0.45 |
0.28±0.06 |
200±2 |
|
Φ0.8 |
1.1±0.2 |
0.15±0.03 |
≤0.50 |
0.30±0.06 |
200±2 |
|
Φ1.0 |
1.5±0.2 |
0.18±0.03 |
≤0.65 |
0.36±0.08 |
200±2 |
|
Φ1.5 |
2.0±0.2 |
0.18±0.03 |
≤0.85 |
0.36±0.08 |
200±2 |
|
Φ2.0 |
2.5±0.2 |
0.20±0.04 |
≤1.00 |
0.40±0.08 |
200±2 |
|
Φ2.5 |
3.0±0.2 |
0.20±0.04 |
≤1.25 |
0.40±0.08 |
200±2 |
|
Φ3.0 |
3.5±0.2 |
0.20±0.04 |
≤1.5 |
0.40±0.08 |
200±2 |
|
Φ3.5 |
4.0±0.2 |
0.22±0.04 |
≤1.75 |
0.44±0.08 |
200±2 |
|
Φ4.0 |
4.5±0.2 |
0.25±0.04 |
≤2.0 |
0.50±0.08 |
200±2 |
|
Φ4.5 |
5.0±0.2 |
0.25±0.04 |
≤2.25 |
0.50±0.08 |
100±1 |
|
Φ5.0 |
5.5±0.2 |
0.25±0.04 |
≤2.5 |
0.50±0.08 |
100±1 |
|
Φ5.5 |
6.0±0.2 |
0.25±0.04 |
≤2.75 |
0.50±0.08 |
100±1 |
|
Φ6.0 |
6.5±0.2 |
0.28±0.04 |
≤3.0 |
0.55±0.08 |
100±1 |
|
Φ6.5 |
7.0±0.2 |
0.28±0.04 |
≤3.25 |
0.55±0.08 |
100±1 |
|
Φ7.0 |
7.5±0.2 |
0.28±0.04 |
≤3.5 |
0.55±0.08 |
100±1 |
|
Φ8.0 |
8.5±0.2 |
0.28±0.04 |
≤4.0 |
0.60±0.10 |
100±1 |
|
Φ9.0 |
9.5±0.2 |
0.30±0.05 |
≤4.5 |
0.60±0.10 |
100±1 |
|
Φ10 |
10.5±0.2 |
0.30±0.05 |
≤5.0 |
0.60±0.10 |
100±1 |
|
Φ11 |
11.5±0.2 |
0.30±0.05 |
≤5.5 |
0.60±0.10 |
100±1 |
|
Φ12 |
12.5±0.2 |
0.30±0.05 |
≤6.0 |
0.60±0.10 |
100±1 |
|
Φ13 |
13.5±0.2 |
0.35±0.06 |
≤6.5 |
0.70±0.10 |
100±1 |
|
Φ14 |
14.5±0.3 |
0.35±0.06 |
≤7.0 |
0.70±0.10 |
100±1 |
|
Φ15 |
15.5±0.3 |
0.40±0.08 |
≤7.5 |
0.75±0.10 |
100±1 |
|
Φ16 |
16.5±0.3 |
0.40±0.08 |
≤8.0 |
0.75±0.10 |
100±1 |
|
Φ17 |
17.5±0.5 |
0.40±0.08 |
≤8.5 |
0.75±0.10 |
100±1 |
|
Φ18 |
19.0±0.7 |
0.40±0.08 |
≤9.0 |
0.75±0.10 |
100±1 |
|
Φ20 |
21.0±0.7 |
0.40±0.08 |
≤10.0 |
0.75±0.10 |
100±1 |
|
Φ22 |
23.0±0.7 |
0.40±0.08 |
≤11.0 |
0.80±0.10 |
100±1 |
|
Φ25 |
26.0±0.7 |
0.50±0.10 |
≤12.5 |
0.90±0.10 |
50±0.5 |
|
Φ28 |
29.0±0.7 |
0.50±0.10 |
≤14.0 |
0.90±0.10 |
50±0.5 |
|
Φ30 |
31.0±0.7 |
0.50±0.10 |
≤15.0 |
0.95±0.10 |
50±0.5 |
|
Φ35 |
36.0±0.7 |
0.50±0.10 |
≤17.5 |
1.00±0.12 |
50±0.5 |
|
Φ40 |
41.0±0.7 |
0.55±0.10 |
≤20.0 |
1.00±0.12 |
50±0.5 |
|
Φ45 |
46.0±0.7 |
0.55±0.10 |
≤22.5 |
1.00±0.12 |
25±0.5 |
|
Φ50 |
51.0±0.7 |
0.55±0.10 |
≤25.0 |
1.00±0.12 |
25±0.5 |
Ultra Thin Wall Heat Shrink Tubing, Rated 300V
|
Size |
As Supplied(mm) |
After Recovery(mm) |
Packing Length(M) |
||
|
Inside Diameter(D) |
Average Wall Thickness(T) |
Inside Diameter (D) |
Wall Thickness(T) |
||
|
Φ0.6 |
0.9±0.2 |
0.13±0.03 |
≤0.40 |
0.20±0.10 |
200±2 |
|
Φ0.7 |
0.9±0.2 |
0.13±0.03 |
≤0.45 |
0.20±0.10 |
200±2 |
|
Φ0.8 |
1.1±0.2 |
0.13±0.03 |
≤0.50 |
0.20±0.10 |
200±2 |
|
Φ1.0 |
1.5±0.2 |
0.13±0.03 |
≤0.65 |
0.20±0.10 |
200±2 |
|
Φ1.5 |
2.0±0.2 |
0.13±0.03 |
≤0.85 |
0.20±0.10 |
200±2 |
|
Φ2.0 |
2.5±0.2 |
0.13±0.03 |
≤1.00 |
0.22±0.10 |
200±2 |
|
Φ2.5 |
3.0±0.2 |
0.13±0.03 |
≤1.25 |
0.25±0.10 |
200±2 |
|
Φ3.0 |
3.5±0.3 |
0.13±0.03 |
≤1.50 |
0.28±0.10 |
200±2 |
|
Φ3.5 |
4.0±0.3 |
0.13±0.03 |
≤1.75 |
0.28±0.10 |
200±2 |
|
Φ4.0 |
4.5±0.3 |
0.15±0.04 |
≤2.00 |
0.30±0.10 |
200±2 |
|
Φ4.5 |
5.0±0.3 |
0.15±0.04 |
≤2.25 |
0.30±0.10 |
100±1 |
|
Φ5.0 |
5.5±0.4 |
0.15±0.04 |
≤2.50 |
0.32±0.10 |
100±1 |
|
Φ5.5 |
6.0±0.4 |
0.15±0.04 |
≤2.75 |
0.32±0.10 |
100±1 |
|
Φ6.0 |
6.5±0.4 |
0.15±0.04 |
≤3.00 |
0.32±0.10 |
100±1 |
|
Φ6.5 |
7.0±0.4 |
0.15±0.04 |
≤3.25 |
0.32±0.10 |
100±1 |
|
Φ7.0 |
7.5±0.4 |
0.15±0.04 |
≤3.50 |
0.32±0.10 |
100±1 |
|
Φ8.0 |
8.5±0.5 |
0.15±0.04 |
≤4.00 |
0.32±0.10 |
100±1 |
|
Φ9.0 |
9.5±0.5 |
0.15±0.04 |
≤4.50 |
0.35±0.10 |
100±1 |
|
Φ10 |
10.5±0.5 |
0.15±0.04 |
≤5.00 |
0.35±0.10 |
100±1 |
|
Φ11 |
11.5±0.5 |
0.18±0.04 |
≤5.50 |
0.40±0.10 |
100±1 |
|
Φ12 |
12.5±0.5 |
0.20±0.05 |
≤6.00 |
0.40±0.10 |
100±1 |
|
Φ13 |
13.5±0.5 |
0.20±0.05 |
≤6.50 |
0.40±0.10 |
100±1 |
|
Φ14 |
14.5±0.5 |
0.20±0.05 |
≤7.00 |
0.40±0.10 |
100±1 |
|
Φ15 |
15.5±0.5 |
0.20±0.05 |
≤7.50 |
0.40±0.10 |
100±1 |
|
Φ16 |
16.5±0.5 |
0.22±0.05 |
≤8.00 |
0.40±0.10 |
100±1 |
Remarks: Custom sizes and colors are available upon customer request.
