Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0

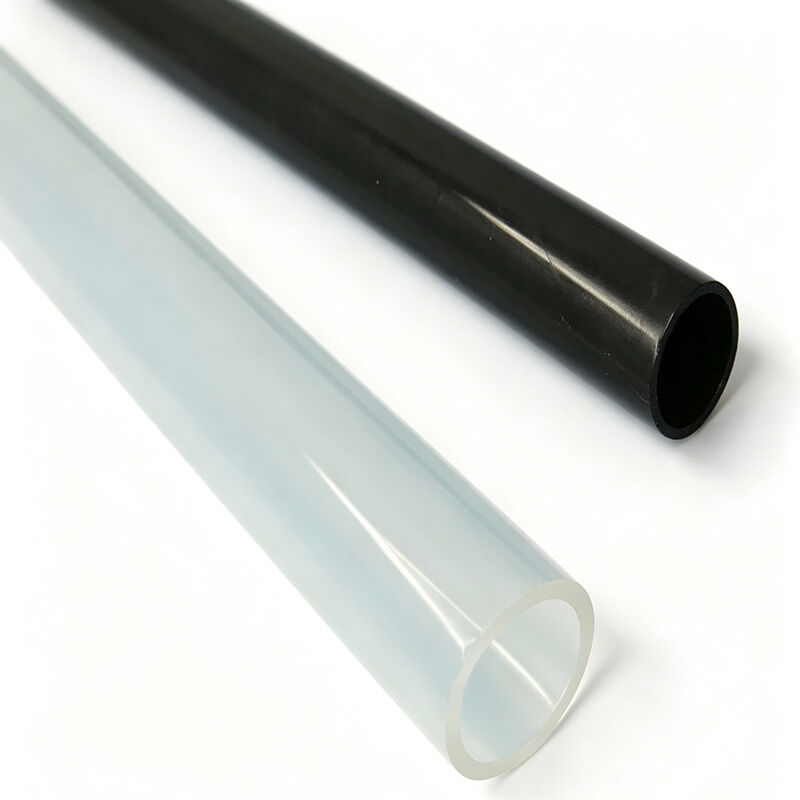

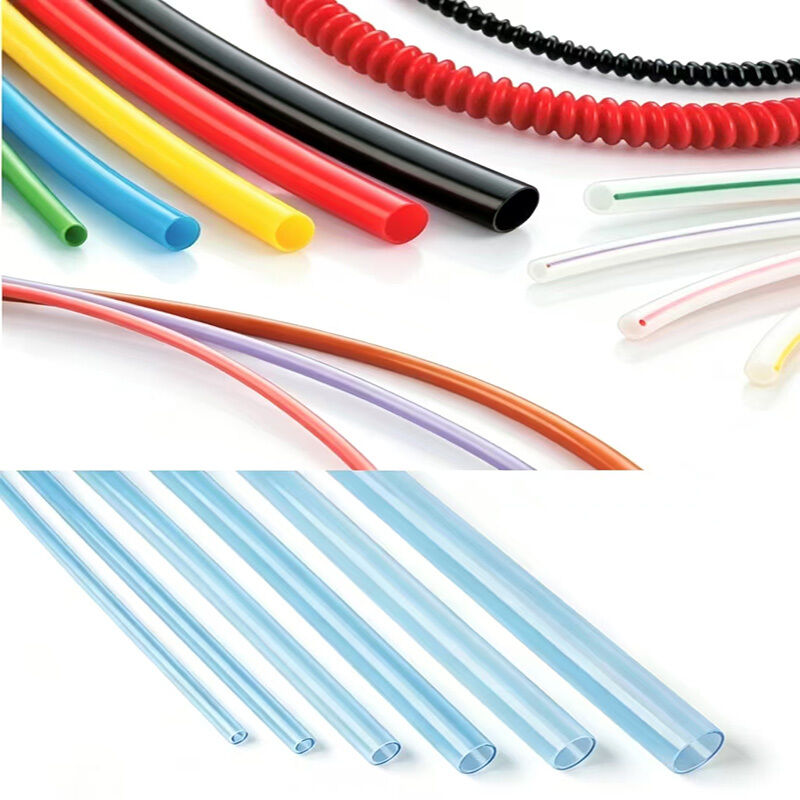

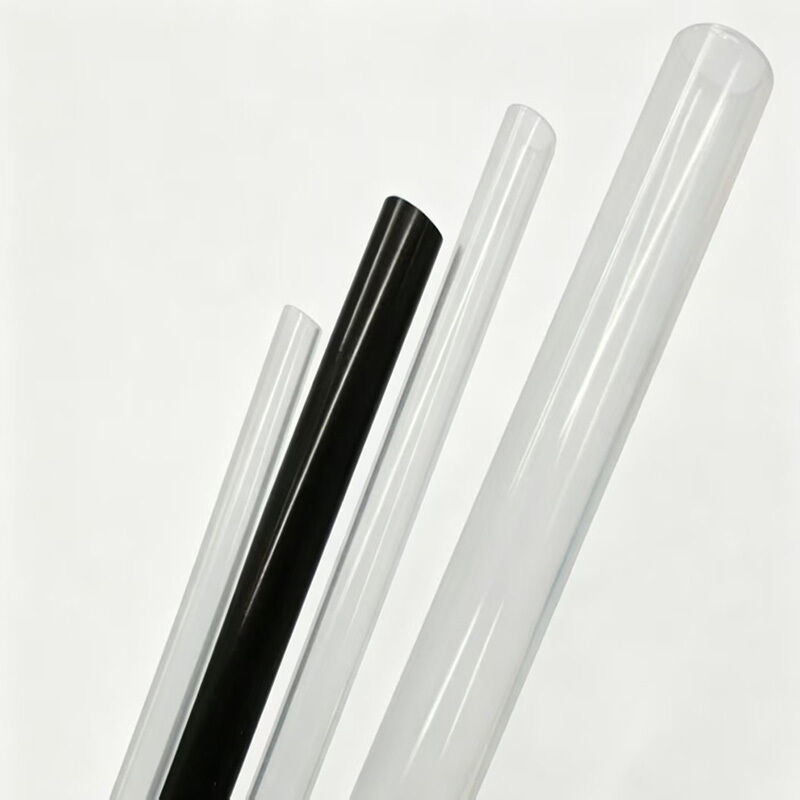

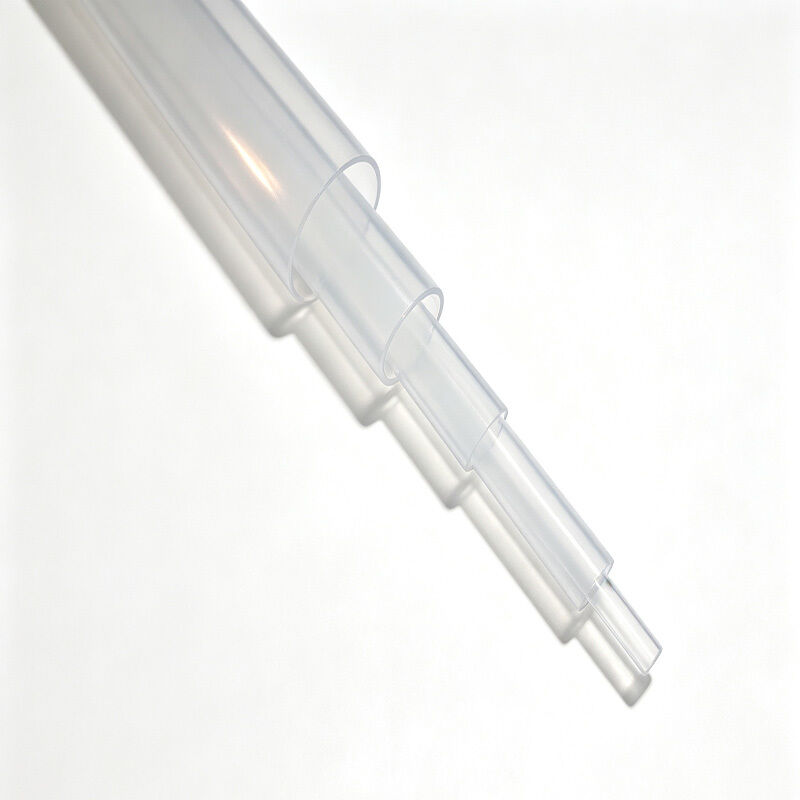

This PFA sleeve is made of high‑performance perfluoroalkoxy fluoropolymer material. It features outstanding high‑temperature resistance from -196℃ to 260℃, superior chemical corrosion resistance and excellent electrical insulation. Semi‑transparent design allows visual inspection of internal components. It complies with RoHS and REACH standards, widely used in semiconductor, chemical, new‑energy and high‑temperature wiring protection fields. Custom specifications are available.
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
Product Features
Heat exchangers, steam piping, semiconductors, wire & cable sleeves for various frequencies, slot insulation tubes;
Piping for conveying various corrosive media (harsh solvents);
LCD manufacturing equipment;
High‑purity reagent delivery tubes;
Slot insulation tubes for oil‑substituted motors;
Tubing for single‑core optical fiber with full‑body single‑end light emission;
Tubes for air‑conditioning wire harness assemblies.
| model | Inside Diameter (mm) | Inner Diameter Tolerance (mm) | Wall Thickness (Adjustable)(mm) | Packing (m) | Inside Diameter (mm) | Inner Diameter Tolerance (mm) | Wall Thickness (Adjustable)(mm) |
| 1 | 0.50 | 0.50±0.10 | 0.05~2.00 | m/pcs/roll | 11.0 | 11.0±0.50 | 0.50~5.0 |
| 2 | 1.00 | 1.00±0.10 | 0.05~2.00 | m/pcs/roll | 12.0 | 12.0±0.50 | 0.50~5.0 |
| 3 | 1.35 | 1.35±0.10 | 0.08~2.00 | m/pcs/roll | 13.0 | 13.0±1.00 | 0.50~5.0 |
| 4 | 1.50 | 1.50±0.10 | 0.08~2.00 | m/pcs/roll | 14.0 | 14.0±1.00 | 0.50~5.0 |
| .5 | 1.60 | 1.60±0.20 | 0.08~2.00 | m/pcs/roll | 15.0 | 15.0±1.00 | 0.50~5.0 |
| 6 | 1.70 | 1.70±0.20 | 0.08~2.00 | m/pcs/roll | 16.0 | 16.0±1.00 | 0.50~5.0 |
| 7 | 2.00 | 2.00±0.20 | 0.10~3.00 | m/pcs/roll | 18.0 | 18.0±1.00 | 0.50~5.0 |
| 8 | 2.30 | 2.30±0.20 | 0.10~3.00 | m/pcs/roll | 20.0 | 20.0±2.00 | 1.0~5.0 |
| 9 | 2.40 | 2.40±0.20 | 0.10~3.00 | m/pcs/roll | 25.0 | 25.0±2.00 | 1.0~5.0 |
| 10 | 2.50 | 2.50±0.20 | 0.10~3.00 | m/pcs/roll | 30.0 | 30.0±3.00 | 1.0~6.0 |
| 11 | 3.00 | 3.00±0.20 | 0.10~3.00 | m/pcs/roll | 40.0 | 40.0±3.00 | 1.0~6.0 |
| 12 | 3.50 | 3.50±0.20 | 0.10~3.00 | m/pcs/roll | 452 | 45.0±3.00 | 1.0~6.0 |
| 13 | 4.00 | 4.00±0.20 | 0.10~3.00 | m/pcs/roll | 50.0 | 50.0±3.00 | 1.0~6.0 |
| 14 | 4.50 | 4.50±0.20 | 0.15~3.00 | m/pcs/roll | 60.0 | 60.0±5.00 | 1.5~8.0 |
| 15 | 5.0 | 5.00±0.20 | 0.15~4.00 | m/pcs/roll | 70.0 | 70.0±5.00 | 1.5~8.0 |
| 16 | 5.50 | 5.5±0.20 | 0.20~4.00 | m/pcs/roll | 80.0 | 80.0±5.00 | 1.5~8.0 |
| 17 | 6.00 | 6.0±0.30 | 0.20~4.00 | m/pcs/roll | 90.0 | 90.0±5.00 | 2.0~10.0 |
| 18 | 6.50 | 6.5±0.50 | 0.20~4.00 | m/pcs/roll | 100.0 | 100.0±5.00 | 2.0~10.0 |
| 19 | 7.0 | 7.00±0.50 | 0.20~4.00 | m/pcs/roll | 120.0 | 120.0±5.00 | 2.0~15.0 |
| 20 | 8.0 | 8.0±0.50 | 0.20~4.00 | m/pcs/roll | 150.0 | 150.0±5.00 | 2.0~10.01 |
| 21 | 9.0 | 9.00±0.50 | 0,50~4.00 | m/pcs/roll | 250.0 | 200.0±10.0 | 3.0±15.0 |
| 22 | 10.0 | 10.0±0.50 | 0.50~4.00 | m/pcs/roll | 300.0 | 300.0±10.0 | 3.0±15.0 |
Above are metric standard dimensions. Custom specifications are available per customer requirements, with a maximum production size of 600 mm.
Remarks: Custom sizes and colors are available upon customer request.
