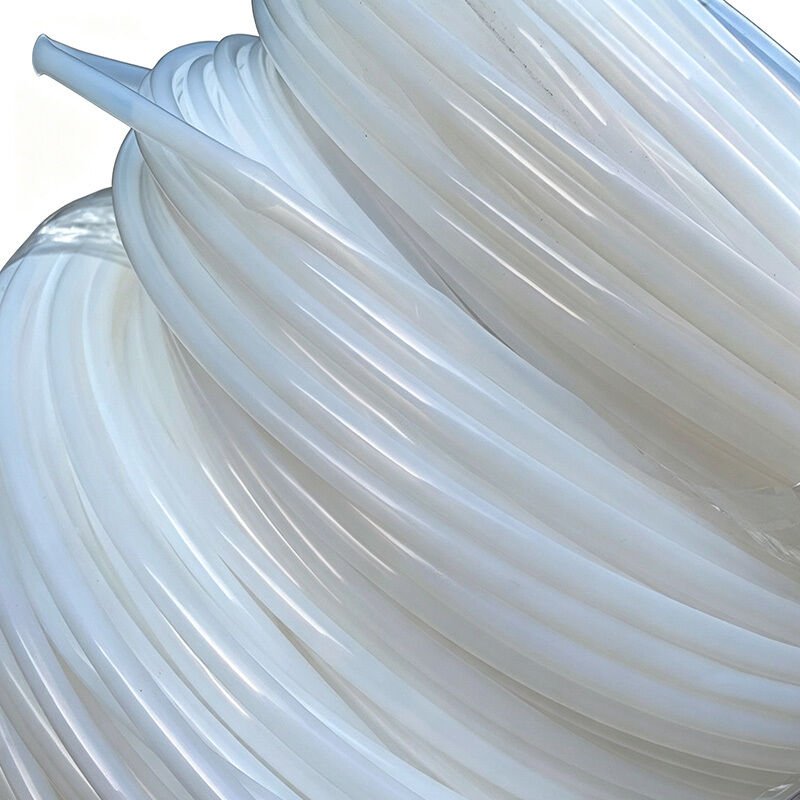

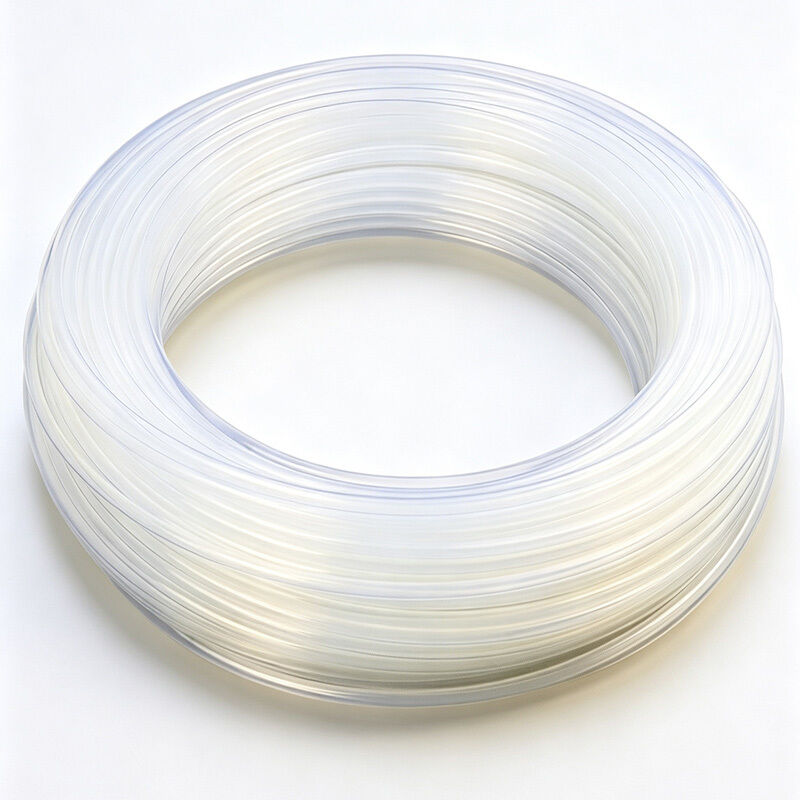

Thin Wall Heat Shrink Clear Tubing PTFE Clear Heat Shrink Tubing High Temperature

Melting

>280℃

Dielectric constant(*)50HZ

2.1

Rigidity

85

Copper corrosion

No corrosion

Antibiotic property, erosion resistance property

Excellent

Toughness(fold, bend, tear etc.)

Excellent

Tensile strength Mpa(kgf/cm)

20.5

Breakdown strength(kv/mm)

30

Appearance

Smooth, no visible fur and defects, no impurity

Longitudinal change(%)

<5%

Elongation

VW-1

Resistance

Wear resistant, anti-acid and anti-virus,, corona discharge, solvent resistance, etc

Environment

No hazardous to humans and environment

Dimension (mm)

ID Before Shrink (mm)

Average Wall Thickness (mm)

After Recovery ID(mm)

Wall Thickness (Fully Shrunk)

Φ0.5

0.5~0.7

0.1~0.15

0.25~0.3

0.15± 0.05

Φ1.0

1.0~1.2

0.1~0.15

0.51 ~0.66

0.15±0.05

Φ1.5

1.5~1.7

0.1~0.15

0.74~0.89

0.15±0.05

Φ2.0

2.0~2.3

0.1~0.15

1.01~1.17

0.15±0.05

Φ2.5

2.5~2.8

0.1~0.15

1.29~147

0.15±0.05

Φ3.0

3.0~3.3

0.1~0.15

1.62~1.83

0.15±0.05

Φ3.5

3.5~3.8

0.1~0.15

1.83~2.05

0.15±0.05

Φ4.0

4.0~4.3

0.15~0.2

2.05~2.31

0.15±0.05

Φ4.5

4.5~4.8

0.15~0.2

2.31~2.57

0.15±0.05

Φ5.0

5.0~5.3

0.15~0.2

2.59~2.84

0.15±0.05

Φ6.0

6.0~6.4

0.15~0.2

3.28~3.53

0.15±0.05

Φ6.5

6.5~7.0

0.15~0.2

3.35~3.65

0.15±0.05

Φ7.0

7.0~7.5

0.15~0.2

3.65~3.94

0.15±0.05

Φ8.0

8.0~8.5

0.2~0.25

4.11~4.41

0.25±0.05

Φ9.0

9.0~9.5

0.2~0.25

4.62~4.95

0.25±0.05

Φ10

10~11

0.2~0.25

5.18~5.53

0.25±0.05

Φ11

11~12

0.2~0.25

5.81~6.20

0.25±0.05

Φ12

12~13

02~0.25

6.55~6.93

0.25±0.05

Φ13

13~14

0.2~0.25

6.84~7.05

0.25±0.05

Φ14

14~15

0.2~0.25

7.34~7.75

0.25±0.05

Φ15

15~16

0.2~0.25

7.68~8.16

0.25±0.05

Φ16

16~17

0.2~0.25

8.26~8.69

0.25±0.05

Φ17

17~18

0.2~0.25

8.26~8.69

0.25±0.05

Φ18

18~19

0.2~0.25

8.26~8.69

0.25±0.05

Dimension(mm)

ID Before Shrink(mm)

Average Wall Thickness(mm)

After Recovery ID(mm)

Wall Thickness (Fully Shrunk)

Φ0.5

0.5~0.7

0.15~0.2

0.25~0.3

0.23±0.05

Φ1.0

1.0~1.2

0.15~0.2

0.51~0.66

0.25±0.05

Φ1.5

1.5~1.7

0.15~0.2

0.74~0.89

0.25±0.05

Φ2.0

2..0~2.3

0.15~0.2

1.01~ 1.17

0.25± 0.05

Φ2.5

2.5~2.8

0.15~0.2

1.29~1.47

0.25± 0.05

Φ3.0

3.0~3.3

0.15~0.2

1.62~1.83

0.25± 0.05

Φ3.5

3.5~3.8

0.15~0.2

1.83~2.05

0.25± 0.05

Φ4.0

4.0~4.31

0.2~0.25

2.05~2.31

0.30± 0.05

Φ4.5

4.5~4.8

0.2 ~0.25

2.31~2.57

0.30± 0.05

Φ5.0

5.0~5.3

0.2~0.25

2.59~2.84

0.30± 0.05

Φ6.0

6.0~6.4

0.2~0.25

3.28 ~3.53

0.35± 0.05

Φ6.5

6.5~7.0

0.2~0.25

3.35~3.65

0.35± 0.05

Φ7.0

7.0~7.5

0.25~0.3

3.65 ~3.94

0.35± 0.05

Φ8.0

8.0~8.5

0.25~0.3

4.11~4.41

0.35± 0.05

Φ9.0

9.0~9.5

0.25~0.3

4.62~4.95

0.35±0.05

Φ10

10~11

0.25~0.3

5.18~5.53

0.35± 0.05

Φ11

11~12

0.25~0.3

5.81 ~6.20

0.35±0.05

Φ12

12~13

0.25~0.3

6.55~6.93

0.35± 0.05

Φ13

13~14

0.25~0.3

6.84~7.05

0.35±0.05

Φ14

14~15

0.25~0.3

7.34~7.75

0.35± 0.05

Φ15

15~16

0.25~0.3

7.68~8.16

0.35±0.05

Φ16

16~17

0.25~0.3

8.26~8.69

0.35±0.05
