Place of Origin:
shenzhen, Guangdong, China
Certification:
RoHS 2.0
application

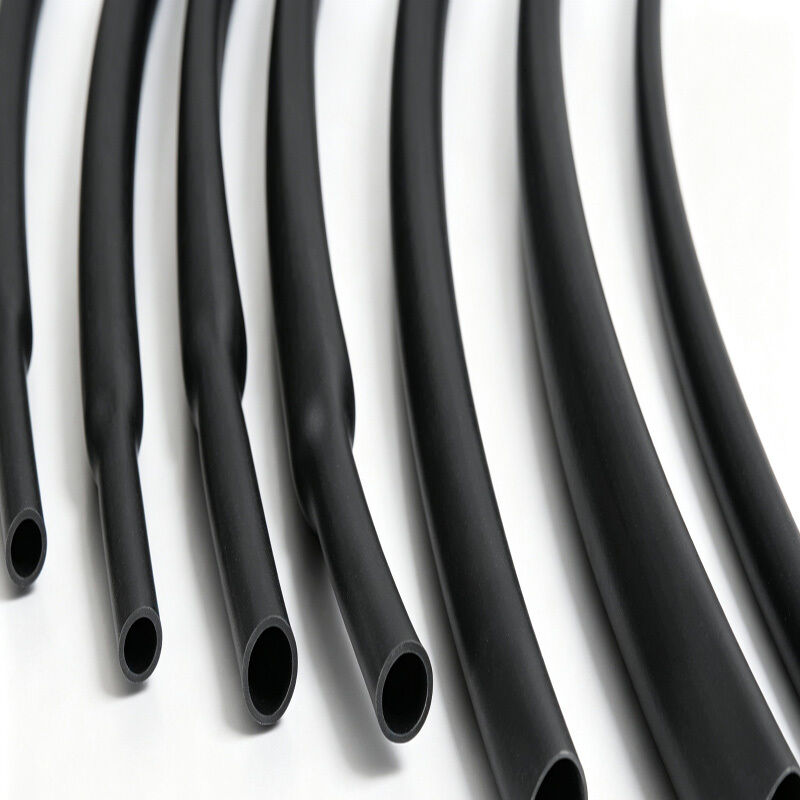

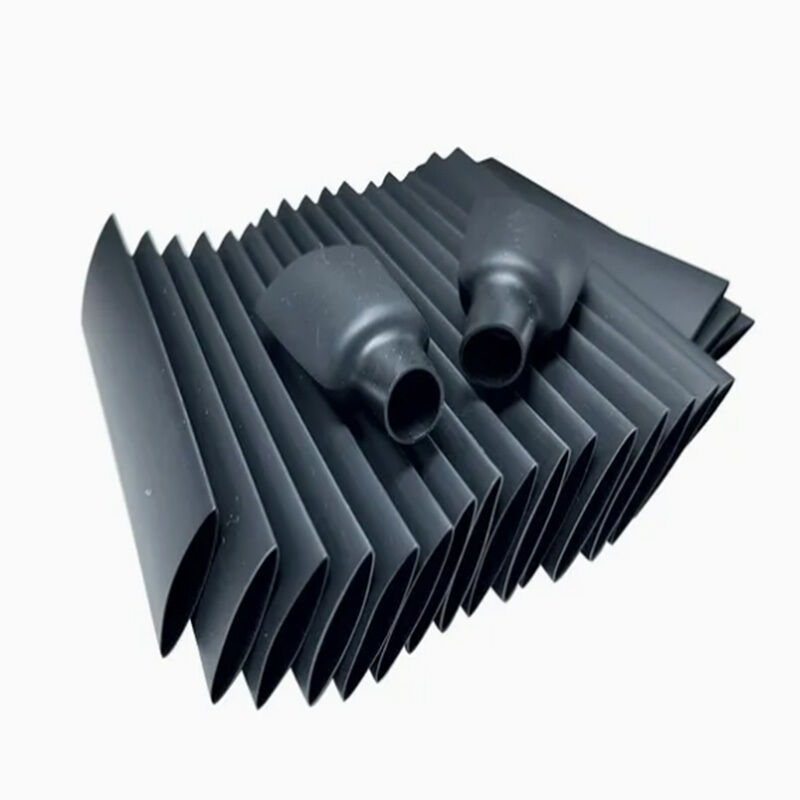

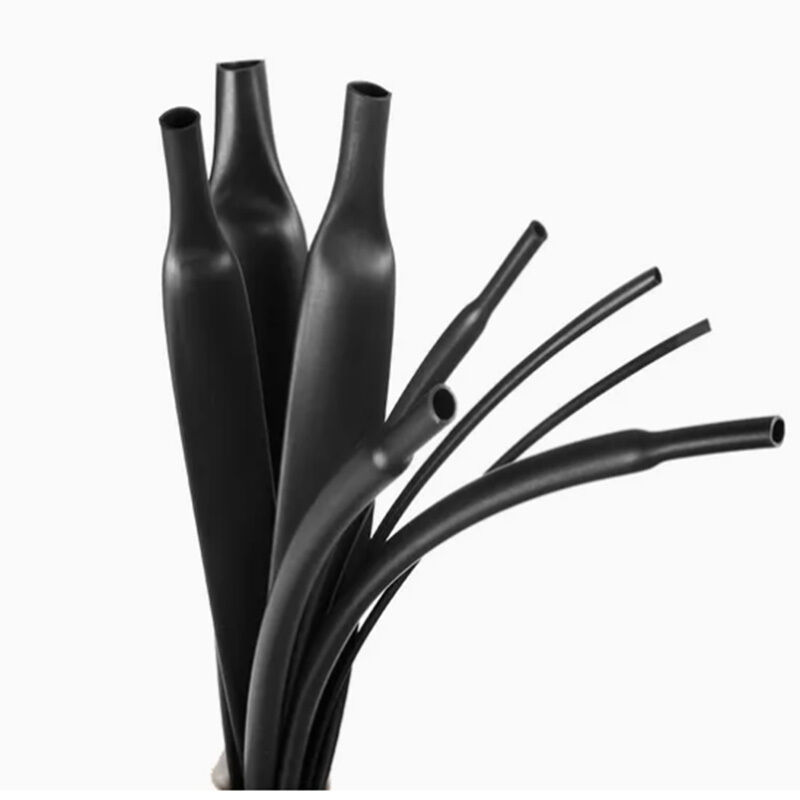

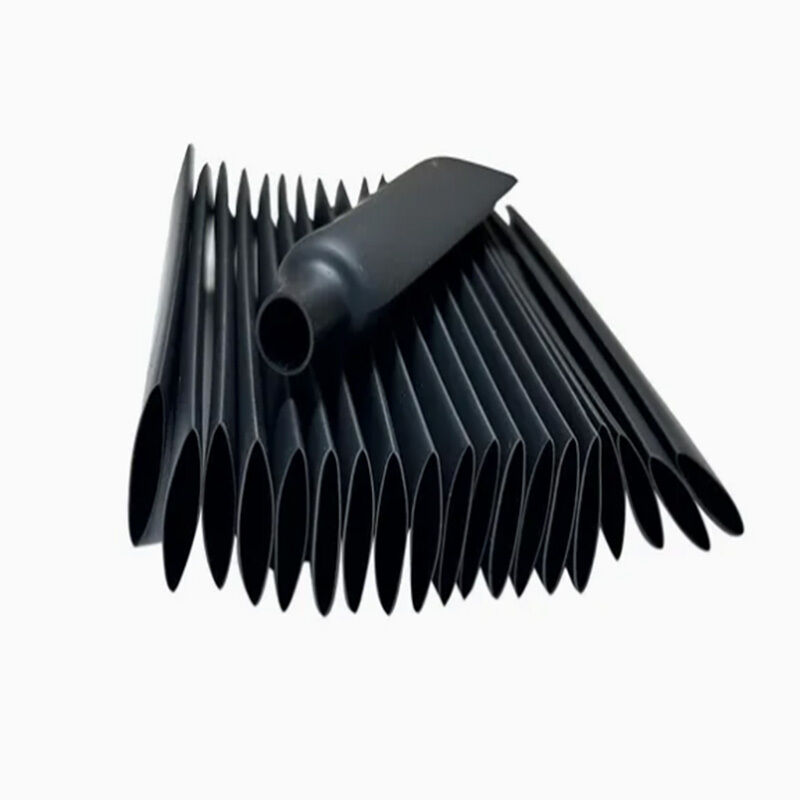

Free from PBB, PBBO, PBBE, heavy metals and other environmentally harmful substances, compliant with environmental protection requirements. It features low shrink temperature, good flexibility and outstanding mechanical strength, and is widely applied in electronics, telecommunications and automotive industries.
Color
Standard color:
Black Remarks: Custom sizes and colors are available upon customer request.
Shelf Life and Storage
Store at -10°C to 40°C with relative humidity less than 75%, and has an expiration period exceeding five years.
Performance characteristics
| Operating Temperature: -40°C to 200°C | Voltage Rating: 600V |
| RoHS Certification | Flame RetardancyVW-1 |
| Soft | Shrinkage ratio 2:1 |
| Minimum complete shrinkage temperature:175°C |
|
Performance Item |
Test Method |
Specification Requirement |
|
Tensile strength (MPa) |
ASTM D 2671 |
8.2MPa(Min) |
|
Elongation at Break (%) |
ASTM D 2671 |
250％(Min) |
|
Heat Aging (250°C/168hours) Tensile Strength |
UL 224 |
8.2MPa(Min) |
|
Heat Aging (250°C/168hours) Elongation at Break |
UL 224 |
200％(Min) |
|
Tensile StrengthAfter Solvent Aging,BreakdownTensileStrength |
ASTM D 2671, diesel70°C/24hours |
8.2 MPa (Min) |
|
Heat Shock (300°C/4 hours) |
ASTM D 2671 |
No cracks, no dripping |
|
Flame Retardancy |
UL 224,vw-1 |
pass |
|
Volume Resistivity |
ASTM D 2671 |
10⁹Ω·cm |
|
Cold Bend(-40℃/4hours) |
ASTM D 2671 |
No cracking |
|
Dielectric Strength |
ASTM D 2671 |
7.9KV/mm(Min) |
| Inch | Available Sizes (mm) | Dimensions After Shrinkage(mm) | |
| D*(Min) | d*(Max) | w*(Min) | |
| 1/8 | 3.2 | 1.6 | 0.80 |
| 3/16 | 4.8 | 2.4 | 0.95 |
| 1/4 | 6.4 | 3.2 | 0.98 |
| 3/8 | 9.5 | 4.8 | 1.00 |
| 1/2 | 12.7 | 6.4 | 1.16 |
| 3/4 | 19.1 | 9.5 | 1.49 |
| 1 | 25.4 | 12.7 | 1.85 |
D*=Inner Diameter Before Supply d*= Inner Diameter After Shrinkage
w*=Wall Thickness After Shrinkage
Remarks: Custom sizes and colors are available upon customer request.
