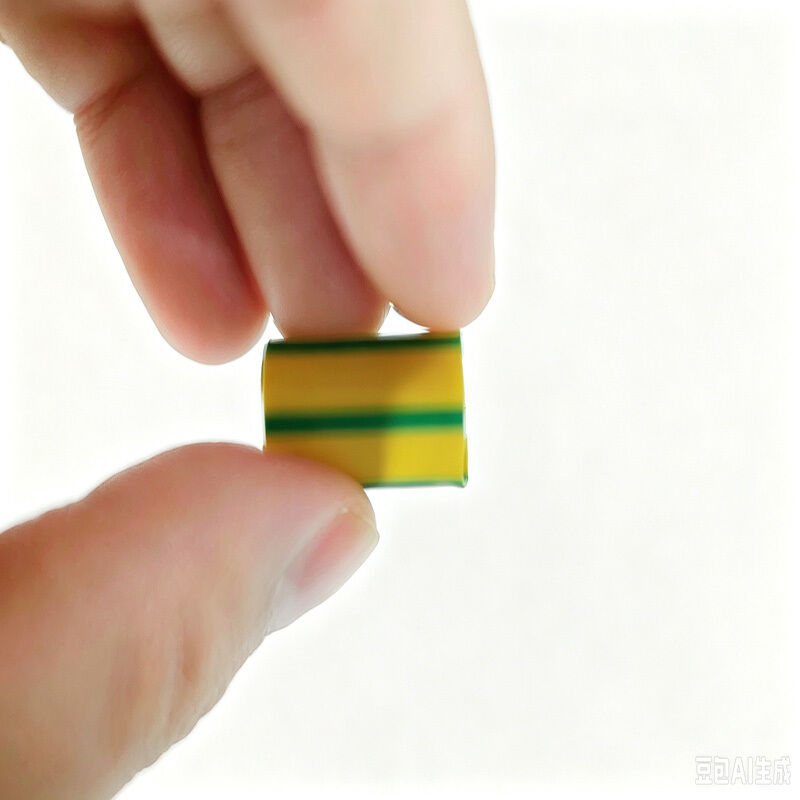

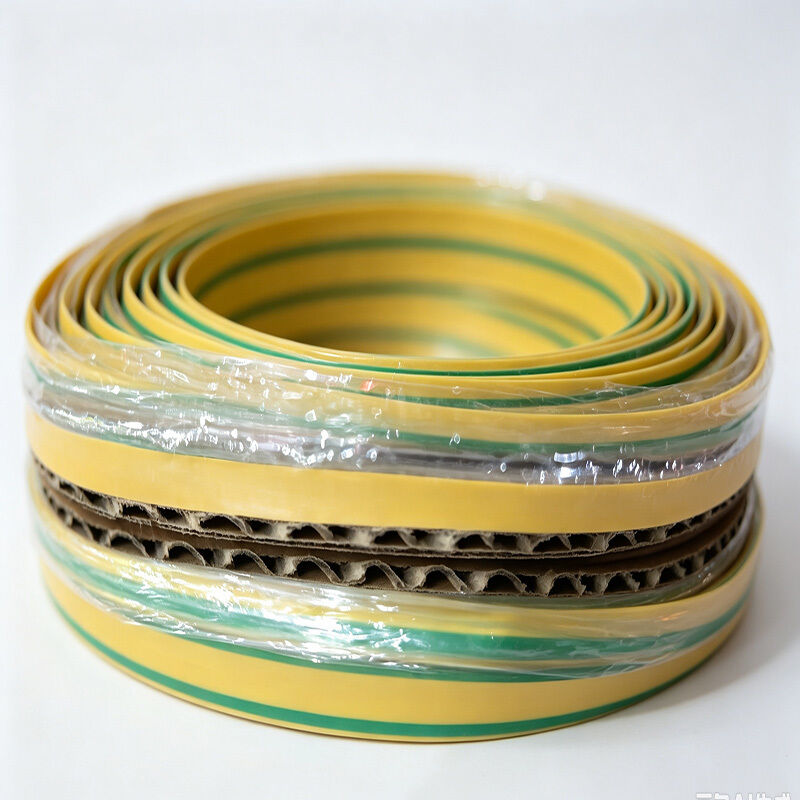

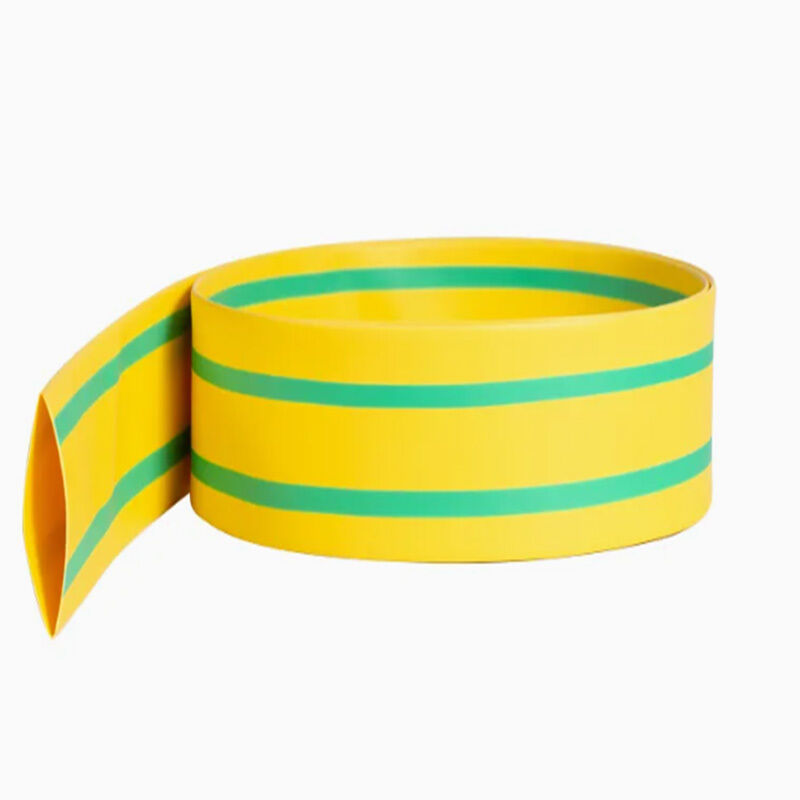

Double Color PE Heat Shrink Tubing Flame Retardant 600v Heat Shrink Tubing Non Toxic

Double Color PE Heat Shrink Tubing

Flame Retardant 600v Heat Shrink Tubing

600v Heat Shrink Tubing Non Toxic

Place of Origin:

shenzhen, Guangdong, China

Brand Name:

XingQi

Certification:

RoHS 2.0

Chat Now

Request A Quote

Product Details

Name:

Double Color Heat Shrinkable Tubing PE Electrical Heat Shrink Tubing

Operating Temperature:

-55°C To 135°C

Voltage Rating:

600V

Shrinkage Ratio:

2:1/3：1

Flame Retardant:

VW-1

Highlight:

Double Color PE Heat Shrink Tubing

Flame Retardant 600v Heat Shrink Tubing

600v Heat Shrink Tubing Non Toxic

Payment & Shipping Terms

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5work days

Payment Terms

T/T

Double Color Heat Shrinkable Tubing PE Electrical Heat Shrink Tubing

Product Introduction

application
The material composition does not contain harmful substances such as PBB, PBBO, PBBE, and heavy metal compounds
Easy to installand easy to identify with ground conductors. Triple shrinkage is suitable for protection of irregular areas.
Color
Standard color:
Yellow/GreenStripe
Shelf Life and Storage
Store at -10°C to 40°C with relative humidity less than 75%, and has an expiration period exceeding five years.

Performancecharacteristics

Operating Temperature: -55°C to 135°C	Voltage Rating: 600V
Soft	Flame Retardant VW-1
Minimum complete shrinkage temperature:105°C	Shrinkage ratio 2:1/3:1
RoHS Certification	Safety certification: UL 224 E204071
Compliant with SAE-AMS-DTL 23053/5	Compliant with SAE-AMS-DTL 23053/5

Product Parameters

Performance Item	Test Method	Specification Requirement
Tensile strength (MPa)	ASTM D 2671	≥10.4
Elongation at Break (%)	ASTM D 2671	≥200％
Thermal Aging (175°C / 168 Hours)Elongation at Break	UL 224	100％(Min)
Thermal Aging (175°C / 168 Hours)Tensile strength	UL 224	Retained 70%
Thermal Shock (250°C / 4 h)	UL 224	No cracking, no dripping
Flame Retardancy	UL 224	vw-1
Volume Resistivity	UL 224	10¹⁴Ω(Min)
Cold Bend	ASTM D 2671	No cracking

Product Dimensions

Double Color PE Heat Shrink Tubing Flame Retardant 600v Heat Shrink Tubing Non Toxic

Inch	Available Sizes (mm)	Dimensions After Shrinkage(mm)
Inch	D*(Min)	d*(Max)	w*(Min)
3/32	2.4	1.2	0.42
1/8	3.2	1.6	0.42
3/16	4.8	2.4	0.52
1/4	6.4	3.2	0.54
3/8	9.5	4.8	0.54
1/2	12.7	6.4	0.62
3/4	19.1	9.5	0.75
1	25.4	12.7	0.85
11/4	31.8	15.9	0.85
11/2	38.1	19.1	0.96
2	50.8	25.4	0.97
3	76.2	38.1	1.17
4	101.6	50.8	1.30
3X
3/32	19.1	0.8	0.50
1/8	25.4	1.1	0.53
3/16	38.1	1.6	0.60
1/4	6.4	2.1	0.65
3/8	9.5	3.2	0.75
1/2	12.7	4.2	0.80
3/4	19.1	6.4	0.9
1	25.4	8.5	1
11/2	39.0	13.0	1.20
