Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0

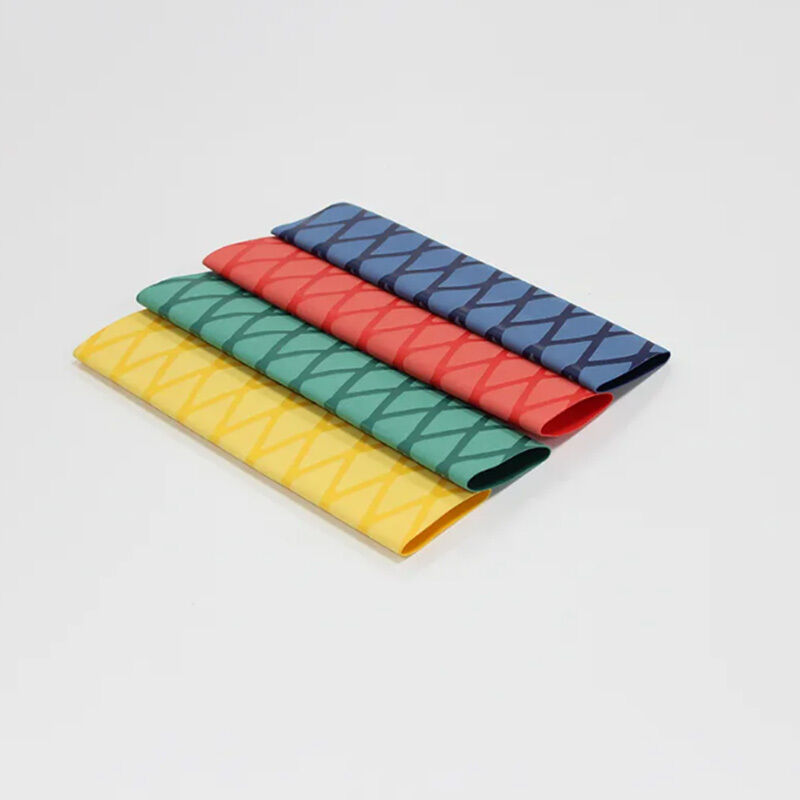

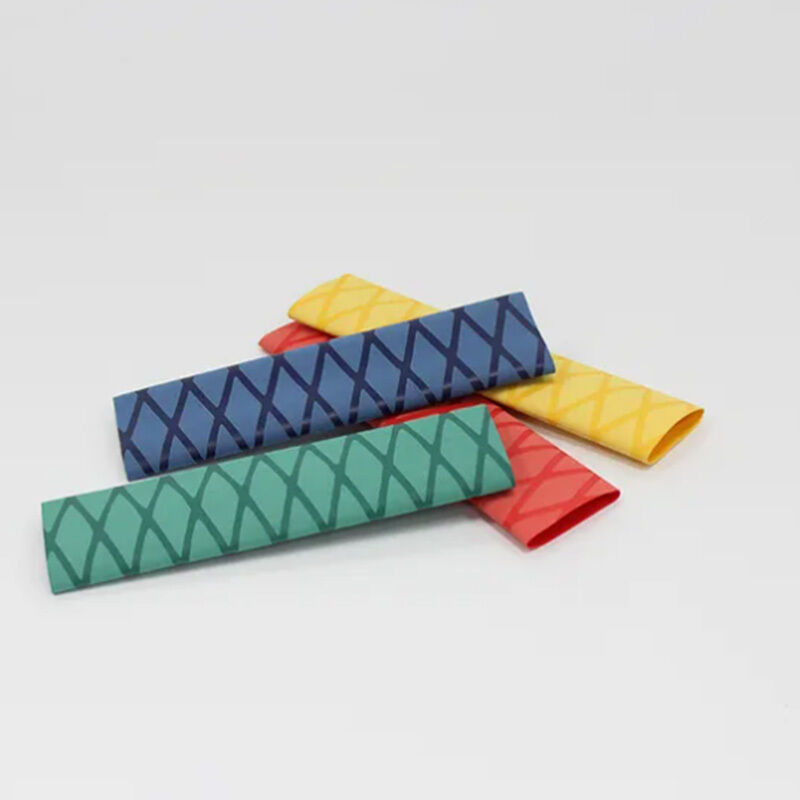

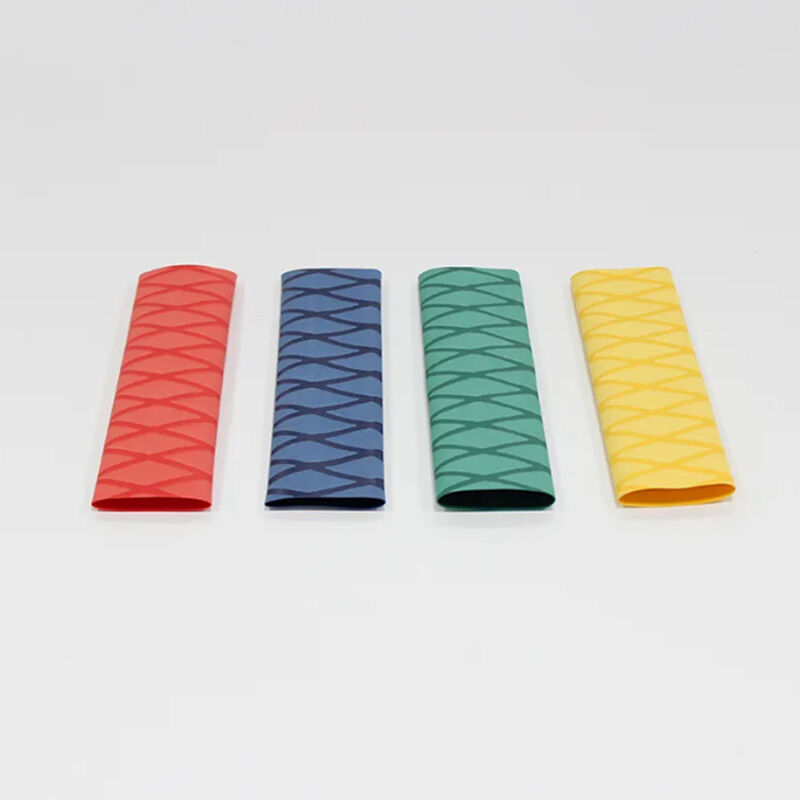

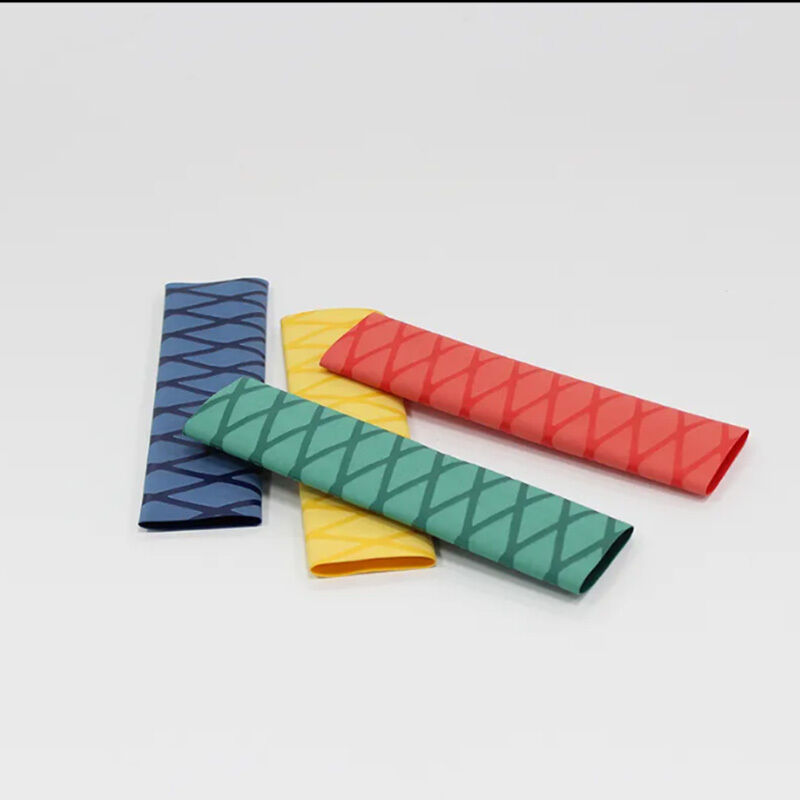

This non‑slip textured tubing is manufactured from irradiation‑modified polyolefin material. Featuring embossed anti‑slip patterns on the surface, it offers reliable non‑slip grip performance as well as attractive decorative appearance. With good flexibility and excellent wrapping conformity, it is widely adopted for handles of high‑end fishing tackles, sports equipment, fitness gear, daily consumer goods, various hand‑held tools and kitchen utensils, delivering multi‑functions including anti‑slip handling, surface protection and aesthetic enhancement.
Shrinkage ratio: 2:1
● Initial shrinkage temperature: ≥+60℃
● Full shrinkage temperature: ≥+105℃
● Operating temperature: -55℃ ~ +110℃
● Features: Soft in texture, fast heat‑shrinking, excellent anti‑slip property ,attractive appearance.
● Environmental certification: RoHS compliant
● Standard colors: red\black\yellow\blue(Other colors can be customized)
| Property | Requirement | Test Standard |
|---|---|---|
| Tensile Strength (MPa) | ≥10.4 | ASTM D 2671 |
| Elongation at Break (%) | ≥200 | ASTM D 2671 |
| Longitudinal Shrinkage | -8~＋8 | ASTM D 2671 |
✅ Embossed diamond texture, reliable anti‑slip performance even under wet & sweaty conditions
✅ Electron‑beam irradiation‑modified polyolefin, soft, flexible and crack‑resistant
✅ Low longitudinal change:‑5%~+5%, stable dimension after heat shrinking
✅ Dual‑function: surface protection & decorative finish, multiple color choices
✅ Full size range Φ15‑Φ50mm, fit for diverse handle diameters
✅ Fast heat‑shrinking, easy processing with heat gun, custom lengths available
| Size(mm) | Supplied ID(mm) | Supplied Wall Thickness(mm) | Fully‑recovered ID(mm) | Fully‑recovered Wall Thickness(mm) | Standard Packaging(meter/piece) |
|---|---|---|---|---|---|
| Φ15 | ≥15 | 0.45±0.15 | ≤8.0 | 0.85±0.15 | 1.0 |
| Φ20 | ≥20 | 0.50±0.15 | ≤11.0 | 0.90±0.15 | 0.8/1.0/1.6 |
| Φ22 | ≥22 | 0.50±0.15 | ≤12.5 | 0.90±0.15 | 0.8/1.0/1.6 |
| Φ25 | ≥25 | 0.50±0.15 | ≤14.5 | 1.00±0.15 | 0.8/1.0/1.6 |
| Φ28 | ≥28 | 0.50±0.15 | ≤15.5 | 1.00±0.15 | 0.8/1.0/1.6 |
| Φ30 | ≥30 | 0.60±0.15 | ≤17.5 | 1.20±0.15 | 0.8/1.0/1.6 |
| Φ35 | ≥35 | 0.60±0.15 | ≤20.0 | 1.20±0.15 | 0.8/1.0/1.6 |
| Φ40 | ≥40 | 0.60±0.15 | ≤23.0 | 1.20±0.15 | 0.8/1.0/1.6 |
| Φ45 | ≥45 | 0.65±0.15 | ≤25.0 | 1.25±0.15 | 0.8/1.0/1.6 |
| Φ50 | ≥50 | 0.65±0.15 | ≤28.0 | 1.25±0.15 | 0.8/1.0 |
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
Remarks: Custom sizes and colors are available upon customer request.
