Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0

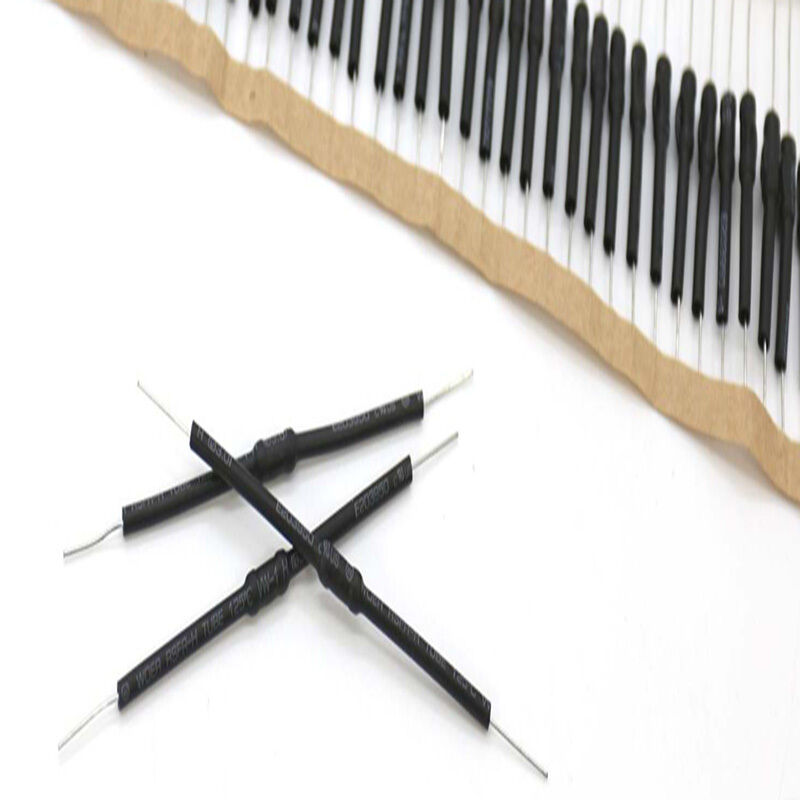

The 125℃ halogen-free environmentally friendly flame-retardant heat-shrinkable tube is made of radiation-crosslinked polyolefin material with excellent physical, chemical and electrical properties.
It is mainly used for wire harness protection, electrical insulation of connectors, anti-rust and anti-corrosion of solder joints, and mechanical protection.
The product is halogen-free, environmentally friendly and flame retardant, and is widely used in automotive wire harnesses, electronic components, communications and other fields.
Shrinkage ratio: 2:1 ● Initial shrinkage temperature: ≥+84℃ ● Full shrinkage temperature: ≥+125℃ ● Operating temperature: -55℃ ~ +125℃ ● Features: Halogen‑free, non‑toxic, flexible, flame‑retardant ● Environmental certification: RoHS compliant ● Standard colors: redblackyellowblue(Other colors can be customized)
|
Performance Item |
Test Method |
Specification Requirement |
|
Tensile Strength (MPa) |
ASTM D 2671 |
≥10.4 |
|
Elongation at Break (%) |
ASTM D 2671 |
≥200 |
|
Tensile Strength after Thermal Aging (MPa) |
158°C × 168h aging per ASTM D 2671 |
≥7.3 |
|
Elongation at Break after Thermal Aging (%) |
158°C × 168h aging per ASTM D 2671 |
≥100 |
|
Withstand Voltage (Rated 300V) |
UL 224 |
No breakdown at 2500 V for 1 min |
|
Dielectric Strength (Alternative to Withstand Voltage) (kV/mm) |
ASTM D 2671 Method C |
≥14 |
|
Longitudinal Change (%) |
ASTM D 2671 Method C |
-5 ~ +5 |
|
Flame Retardancy |
ASTM D 149 |
Pass flame retardant requirement |
|
Volume Resistivity (Ω·cm) |
IEC 60093 |
≥1×10¹⁴ |
| Size (mm) | Supplied ID (mm) | Fully‑recovered ID (mm) | Wall Thickness (mm) | Standard Packing (m/reel) | Application Range (mm) |
|---|---|---|---|---|---|
| Φ0.5/0.35 | 0.80±0.20 | ≤0.35 | 0.33±0.10 | 400 | 0.3‑0.6 |
| Φ0.6/0.40 | 0.90±0.20 | ≤0.40 | 0.33±0.10 | 400 | 0.4‑0.7 |
| Φ0.8/0.50 | 1.10±0.20 | ≤0.50 | 0.33±0.10 | 400 | 0.6‑0.8 |
| Φ1.0/0.65 | 1.50±0.20 | ≤0.65 | 0.36±0.10 | 400 | 0.75‑0.9 |
| Φ1.5/0.85 | 2.00±0.20 | ≤0.85 | 0.36±0.10 | 400 | 0.95‑1.4 |
| Φ2.0/1.00 | 2.50±0.20 | ≤1.00 | 0.45±0.10 | 400 | 1.1‑1.8 |
| Φ2.5/1.30 | 3.00±0.20 | ≤1.30 | 0.45±0.10 | 400 | 1.35‑2.3 |
| Φ3.0/1.50 | 3.50±0.20 | ≤1.50 | 0.45±0.10 | 400 | 1.6‑2.7 |
| Φ3.5/1.80 | 4.00±0.20 | ≤1.80 | 0.45±0.10 | 400 | 1.85‑3.2 |
| Φ4.0/2.00 | 4.70±0.20 | ≤2.00 | 0.45±0.10 | 400 | 2.1‑3.6 |
| Φ4.5/2.30 | 5.00±0.20 | ≤2.30 | 0.56±0.10 | 200 | 2.35‑4.0 |
| Φ5.0/2.50 | 5.50±0.20 | ≤2.50 | 0.56±0.10 | 200 | 2.6‑4.5 |
| Φ5.5/2.75 | 6.00±0.20 | ≤2.75 | 0.56±0.10 | 200 | 2.9‑5.0 |
| Φ6.0/3.00 | 6.50±0.20 | ≤3.00 | 0.56±0.10 | 200 | 3.1‑5.4 |
| Φ7.0/3.50 | 7.50±0.30 | ≤3.50 | 0.56±0.10 | 100 | 3.7‑6.3 |
| Φ8.0/4.00 | 8.50±0.30 | ≤4.00 | 0.56±0.10 | 100 | 4.2‑7.2 |
| Φ9.0/4.50 | 9.50±0.30 | ≤4.50 | 0.56±0.10 | 100 | 4.7‑8.0 |
| Φ10.0/5.00 | 10.50±0.30 | ≤5.00 | 0.56±0.10 | 100 | 5.2‑9.0 |
| Φ11.0/5.50 | 11.50±0.30 | ≤5.50 | 0.56±0.10 | 100 | 5.7‑10 |
| Φ12.0/6.00 | 12.50±0.30 | ≤6.00 | 0.56±0.10 | 100 | 6.2‑11 |
| Φ13.0/6.50 | 13.50±0.30 | ≤6.50 | 0.70±0.10 | 100 | 6.7‑12 |
| Φ14.0/7.00 | 14.50±0.30 | ≤7.00 | 0.70±0.10 | 100 | 7.3‑13 |
| Φ15.0/7.50 | 15.50±0.40 | ≤7.50 | 0.70±0.10 | 100 | 7.8‑14 |
| Φ16.0/8.00 | 16.5±0.4 | ≤8.00 | 0.70±0.10 | 100 | 8.3‑15 |
| Φ17/8.50 | 17.5±0.4 | ≤8.50 | 0.70±0.10 | 100 | 8.8‑16 |
| Φ18/9.00 | 19.0±0.5 | ≤9.00 | 0.70±0.10 | 100 | 9.3‑17 |
| Φ20/10.0 | 22.0±0.5 | ≤10.0 | 0.80±0.15 | 100 | 10.5‑19 |
| Φ22/11.0 | 24.0±0.5 | ≤11.0 | 0.80±0.15 | 100 | 11.4‑21 |
| Φ25/12.5 | 26.0±0.5 | ≤12.5 | 0.90±0.15 | 50 | 12.8‑24 |
| Φ28/14.0 | 29.0±0.5 | ≤14.0 | 0.90±0.15 | 50 | 14.4‑29 |
| Φ30/15.0 | 31.5±1.0 | ≤15.0 | 1.00±0.15 | 50 | 16‑29 |
| Φ35/17.5 | 36.5±1.0 | ≤17.5 | 1.00±0.15 | 50 | 18‑34 |
| Φ40/20.0 | 41.5±1.0 | ≤20.0 | 1.00±0.15 | 50 | 21‑35.0 |
| Φ45/22.0 | 46.5±1.5 | ≤22.5 | 1.00±0.20 | 25 | 23.5‑44 |
| Φ50/25.0 | ≥50.0 | ≤25.0 | 1.10±0.20 | 25 | 26‑49 |
| Φ60/30.0 | ≥60.0 | ≤30.0 | 1.20±0.15 | 25 | 35‑50 |
| Φ70/35.0 | ≥70.0 | ≤35.0 | 1.30±0.20 | 25 | 40‑60 |
| Φ80/40.0 | ≥80.0 | ≤40.0 | 1.30±0.20 | 25 | 45‑70 |
| Φ90/45.0 | ≥90.0 | ≤45.5 | 1.30±0.20 | 25 | 50‑80 |
| Φ100/50.0 | ≥100.0 | ≤50.0 | 1.30±0.20 | 25 | 55‑85 |
| Φ120/60.0 | ≥120.0 | ≤60.0 | 1.30±0.20 | 25 | 65‑100 |
| Φ150/75.0 | ≥150.0 | ≤75.0 | 1.30±0.20 | 25 | 80‑120 |
| Φ180/90.0 | ≥180.0 | ≤90.0 | 1.30±0.20 | 25 | 85‑150 |
| Φ210/105.0 | ≥210.0 | ≤105.0 | 1.30±0.30 | 25 | 110‑180 |
| Φ230/115.0 | ≥230.0 | ≤115.0 | 1.30±0.30 | 25 | 120‑210 |
| Φ250/125.0 | ≥250.0 | ≤125.0 | 1.30±0.30 | 25 | 130‑230 |
| Φ300/150.0 | ≥300.0 | ≤150.0 | 1.30±0.30 | 25 | 160‑250 |
Note: Sizes Φ30 and above are G‑type by default, complying with EU RoHS2.0 (2011/65/EU). Please specify H‑type halogen‑free heat shrink tubing on your order if halogen‑free version is required.
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
Remarks: Custom sizes and colors are available upon customer request.
Send your inquiry directly to us
