Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
ROHS2.0

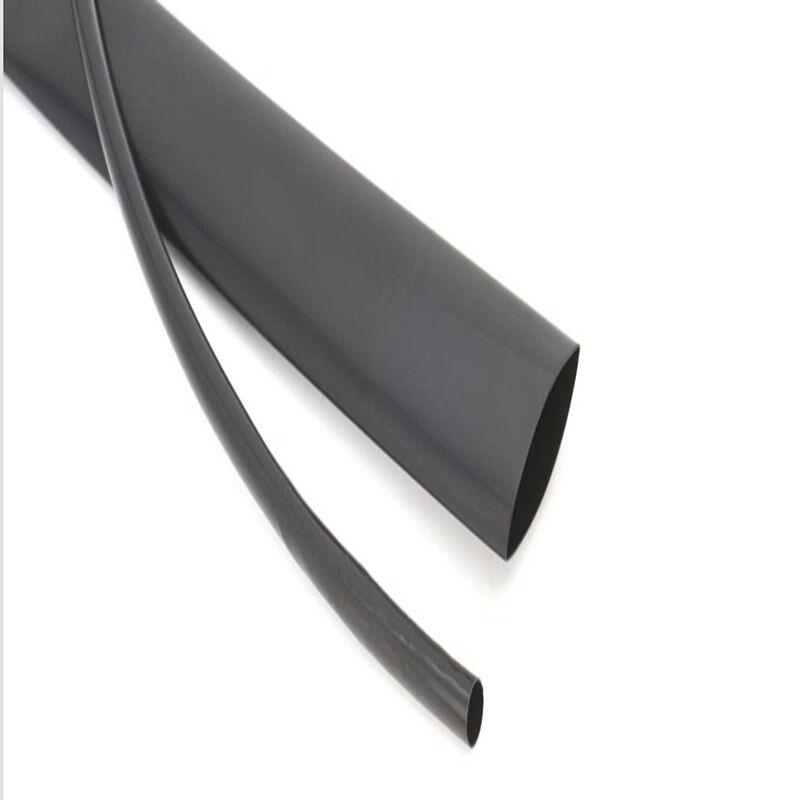

105℃ halogen‑free non‑flame‑retardant ultra‑thin‑wall heat‑shrink tubing is made of irradiation‑cross‑linked polyolefin material with excellent physical, chemical and electrical properties. Featuring ultra‑thin wall thickness, it is more suitable for the protection of micro‑electronic devices. The product features low‑temperature shrinkage and halogen‑free environmental‑friendly performance. It is mainly applied for wire harness protection, electrical insulation of connectors, rust and corrosion resistance of solder joints, mechanical protection and other purposes.
● Shrink ratio: 2:1
● Start shrink temperature: ≥ +70℃
● Full recovery temperature: ≥ +105℃
●Operating temperature: -55℃ ~ +105℃
● Compliance: RoHS2.0
● Standard colors:Standard colors: transparent, black, white, red, yellow, green, blue and other ten international standard colors.
●Halogen‑free, low‑smoke, non‑toxic and flexible
●Standards Complied with: UL224, CAN/CSA C22.2 No.198.1‑99
Product Dimensions
|
Size
|
Supplied Inner Diameter (mm)
|
Recovered Inner Diameter (mm)
|
Recovered Wall Thickness (mm)
|
Standard Packaging (m/reel)
|
Suitable Range (mm)
|
|---|---|---|---|---|---|
| Φ0.6CB | 0.90±0.20 | ≤0.40 | 0.20±0.10 | 200 | 0.5~0.7 |
| Φ0.8CB | 1.10±0.20 | ≤0.50 | 0.20±0.10 | 200 | 0.6~0.9 |
| Φ1.0CB | 1.40±0.20 | ≤0.65 | 0.20±0.10 | 200 | 0.85~1.1 |
| Φ1.5CB | 1.90±0.20 | ≤0.85 | 0.20±0.10 | 200 | 1.0~1.5 |
| Φ2.0CB | 2.40±0.20 | ≤1.00 | 0.22±0.10 | 200 | 1.3~2.0 |
| Φ2.5CB | 2.90±0.20 | ≤1.30 | 0.25±0.10 | 200 | 1.5~2.5 |
| Φ3.0CB | 3.40±0.20 | ≤1.50 | 0.28±0.10 | 200 | 1.8~3.0 |
| Φ3.5CB | 3.90±0.20 | ≤1.80 | 0.28±0.10 | 200 | 2.0~3.5 |
| Φ4.0CB | 4.40±0.20 | ≤2.00 | 0.30±0.10 | 200 | 2.3~4.0 |
| Φ4.5CB | 4.90±0.20 | ≤2.30 | 0.30±0.10 | 100 | 2.5~4.5 |
| Φ5.0CB | 5.50±0.20 | ≤2.50 | 0.32±0.10 | 100 | 3.0~5.0 |
| Φ6.0CB | 6.50±0.20 | ≤3.00 | 0.32±0.10 | 100 | 3.5~5.5 |
| Φ7CB | 7.50±0.30 | ≤3.50 | 0.32±0.10 | 200 | 4.0~6.5 |
| Φ8CB | 8.50±0.30 | ≤4.00 | 0.32±0.10 | 200 | 4.5~7.5 |
| Φ9CB | 9.50±0.30 | ≤4.50 | 0.35±0.10 | 200 | 5.0~8.5 |
| Φ10CB | 10.50±0.30 | ≤5.00 | 0.35±0.10 | 200 | 5.5~9.5 |
| Φ11CB | 11.50±0.30 | ≤5.50 | 0.40±0.10 | 200 | 6.0~10.5 |
| Φ12CB | 12.50±0.30 | ≤6.00 | 0.40±0.10 | 200 | 6.5~11.5 |
| Φ13CB | 13.50±0.30 | ≤6.50 | 0.40±0.10 | 200 | 7.0~12.5 |
| Φ14CB | 14.50±0.30 | ≤7.00 | 0.40±0.10 | 200 | 7.5~13.5 |
| Φ15CB | 15.50±0.40 | ≤7.50 | 0.40±0.10 | 200 | 8.0~14.5 |
| Φ16CB | 16.50±0.40 | ≤8.00 | 0.40±0.10 | 200 | 8.5~15.5 |
| Φ17CB | 17.50±0.40 | ≤8.50 | 0.40±0.10 | 200 | 9.0~16.5 |
| Φ18CB | 18.50±0.40 | ≤9.00 | 0.42±0.10 | 200 | 10.0~17.5 |
| Φ20CB | 20.50±0.50 | ≤10.0 | 0.45±0.10 | 200 | 11.0~18.5 |
| Φ22CB | 22.50±0.50 | ≤11.0 | 0.45±0.10 | 200 | 12.5~20.5 |
| Φ25CB | 25.50±0.50 | ≤12.5 | 0.45±0.10 | 100 | 14.0~22.5 |
Remarks: Custom sizes and colors are available upon customer request.
