Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS

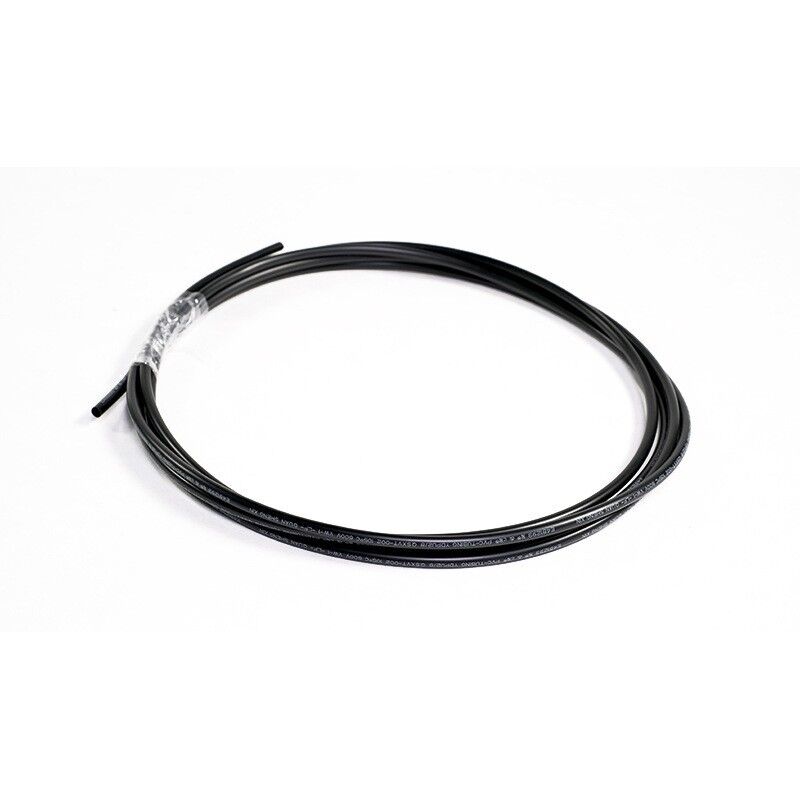

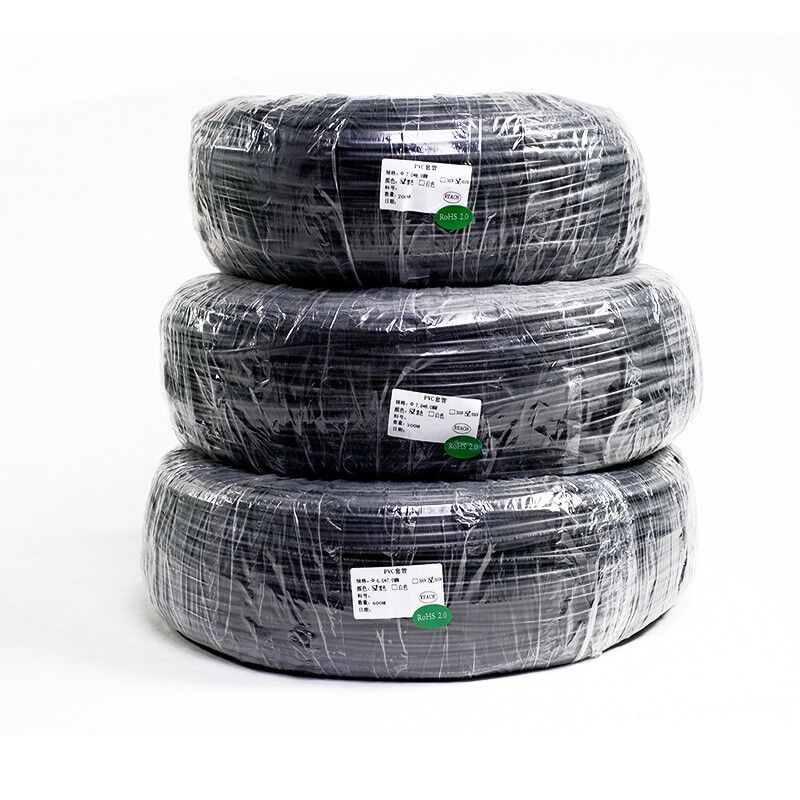

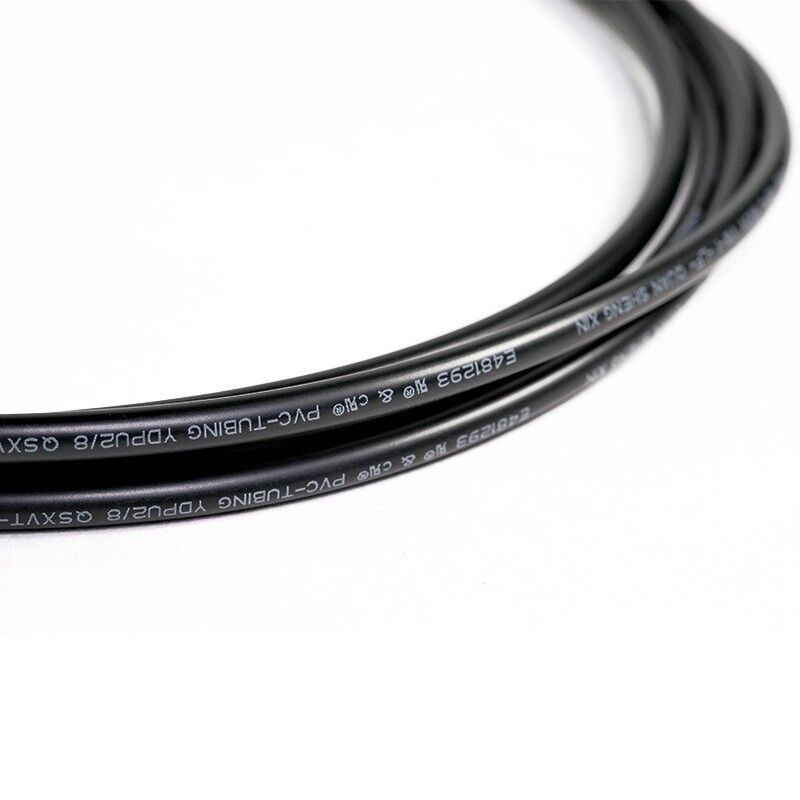

Flexible Non-Shrinkable PVC Insulation Tubing
Ordinary Non-shrink PVC Sleeves are extruded from high-quality PVC (Polyvinyl Chloride). They feature excellent electrical and physical properties, acid and corrosion resistance, and stable performance.
Widely applied in household appliances, industrial electric devices, lighting fixtures, automotive wiring harnesses, electronics & power equipment, motors, mechanical leads, toys, stationery and sports supplies.
Product Features
● Soft and flexible
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
● Temperature rating: -10°C ~ 70°C
● Environmental standard: Compliant with EU RoHS
● Excellent flame retardancy, meets UL224 VW-1 standard
● Standard color: Black; custom colors available
Product Parameters
| Item | Specification |
|---|---|
| Temperature Rating (℃) | -10℃ ~ 70℃ |
| Tensile Strength (MPa) | ≥10.4 (1.5 kgf/mm²) |
| Elongation at Break (%) | ≥100 |
| Air Oven Aging Condition | 100±1.0℃ for 7 days |
| Tensile Strength After Aging (MPa) | ≥7.28 |
| Elongation at Break After Aging (%) | ≥70 |
| Voltage Rating (V) | 300V, 600V |
| Volume Resistivity (Ω·cm) | ≥10¹⁰ |
| Dielectric Breakdown Voltage (V) | ≥2500V for 60 seconds |
| Flame Retardant Grade | VW-1 |
| Thermal Shock Test | No cracking |
| Cold Bend Test | No cracking |
| Maximum Axial Dimensional Change | -5% ~ +5% |
Product Dimensions
| Dimension | Flat Width | Thickness | PACK |
| 1.0±0.1 | 3.2+1.0 | 0.40±0.05 | 1000 |
| 2.0±0.1 | 4.7+1.0 | 0.40±0.05 | 500 |
| 3.0±0.1 | 6.3+1.0 | 0.40±0.05 | 500 |
| 4.0±0.2 | 8.2+1.0 | 0.45±0.05 | 500 |
| 5.0±0.2 | 9.7+1.0 | 0.45±0.05 | 500 |
| 6.0±0.2 | 11.2+1.0 | 0.45±0.05 | 300 |
| 7.0±0.2 | 12.8+1.0 | 0.45±0.05 | 300 |
| 8.0±0.2 | 14.4+1.0 | 0.50±0.05 | 200 |
| 9.0±0.2 | 16.0+1.0 | 0.50±0.05 | 200 |
| 10.0±0.2 | 17.5+1.0 | 0.50±0.05 | 200 |
| 11.0±0.2 | 19.1+2.0 | 0.50±0.05 | 200 |
| 12.0±0.2 | 20.7+2.0 | 0.50±0.05 | 200 |
| 13.0±0.3 | 22.6+2.0 | 0.60±0.05 | 200 |
| 14.0±0.3 | 24.1+2.0 | 0.60±0.05 | 200 |
| 15.0±0.3 | 25.7+2.0 | 0.60±0.05 | 100 |
| 16.0±0.3 | 27.6+2.0 | 0.70±0.10 | 100 |
| 17.0±0.3 | 29.2+2.0 | 0.70±0.10 | 100 |
| 18.0±0.3 | 31.0+2.0 | 0.80±0.10 | 100 |
| 19.0±0.3 | 32.6+2.0 | 0.80±0.10 | 100 |
| 20.0±0.5 | 34.2+2.0 | 0.80±0.10 | 100 |
Company Advantages
1. Direct factory with independent production, cost-effective and on-time delivery.
2. Full range of wiring harness sleeves, one-stop procurement.
3. Support customization: size, color, logo and special formulas available.
4. Reliable quality, compliant with UL, RoHS, REACH and other international standards.
5. Professional foreign trade service, support OEM/ODM, flexible for small and large orders.
Remarks: Custom sizes and colors are available upon customer request.
