Flexible Busbar Insulation Sleeves Eco Friendly Busbar Heat Shrink Tubing For Bent Busbar

Flexible Busbar Insulation Sleeves

Busbar Insulation Sleeves Eco Friendly

Eco Friendly Busbar Heat Shrink Tubing

Place of Origin:

shenzhen, Guangdong, China

Certification:

RoHS 2.0

Chat Now

Request A Quote

Product Details

Name:

Busbar Heat Shrink Tubing

Shrinkage Ratio:

2.5:1

Operating Temperature:

-55℃ ~ +125℃

Full Shrinkage Temperature:

120℃

Standard Colors:

Red

Highlight:

Flexible Busbar Insulation Sleeves

Busbar Insulation Sleeves Eco Friendly

Eco Friendly Busbar Heat Shrink Tubing

Payment & Shipping Terms

Packaging Details

carton，Customizable as per your demands.

Delivery Time

3-5 work days

Payment Terms

T/T

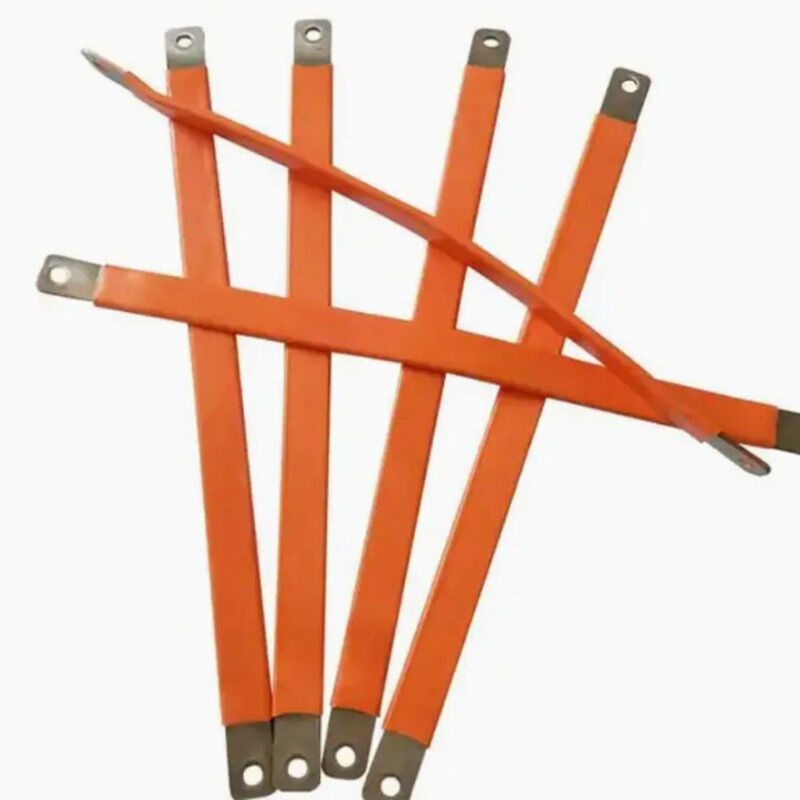

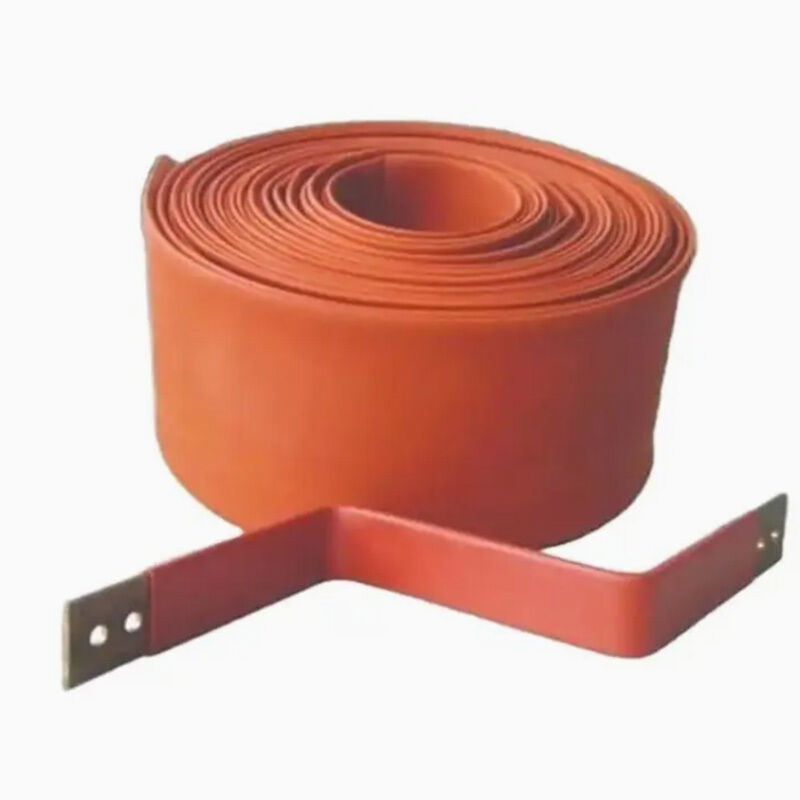

Flexible Busbar Heat Shrink Tube for Bent Busbar

Product Introduction

This continuous flexible busbar heat‑shrink tube is made of eco‑friendly thermoplastic‑elastomer modified polyolefin heat‑shrink material cross‑linked by high‑energy electron‑beam irradiation. It delivers excellent flame retardancy, insulation performance, thermal stability and dielectric strength, while featuring soft texture and high elasticity for easier installation.

Free from environmentally hazardous substances such as PBB, PBBD, PBBE and heavy‑metals, it generates no toxic gas or harmful substances during combustion. Designed for anti‑corrosion and insulation protection of busbars and electrical equipment, the product has obtained certifications from Wuhan High‑Voltage Research

Institute and Xi’an High‑Voltage Research Institute. It is widely used in power industry,telecommunications, automotive, shipbuilding, aircraft manufacturing and other fields.

Product Features

Shrinkage ratio: 2.5:1
● Initial shrinkage temperature: ≥+84℃
● Full shrinkage temperature: ≥+120℃
● Operating temperature: -55℃ ~ +125℃
● Features: Eco‑friendly,high elasticity, flame retardant
● Environmental certification: RoHS compliant

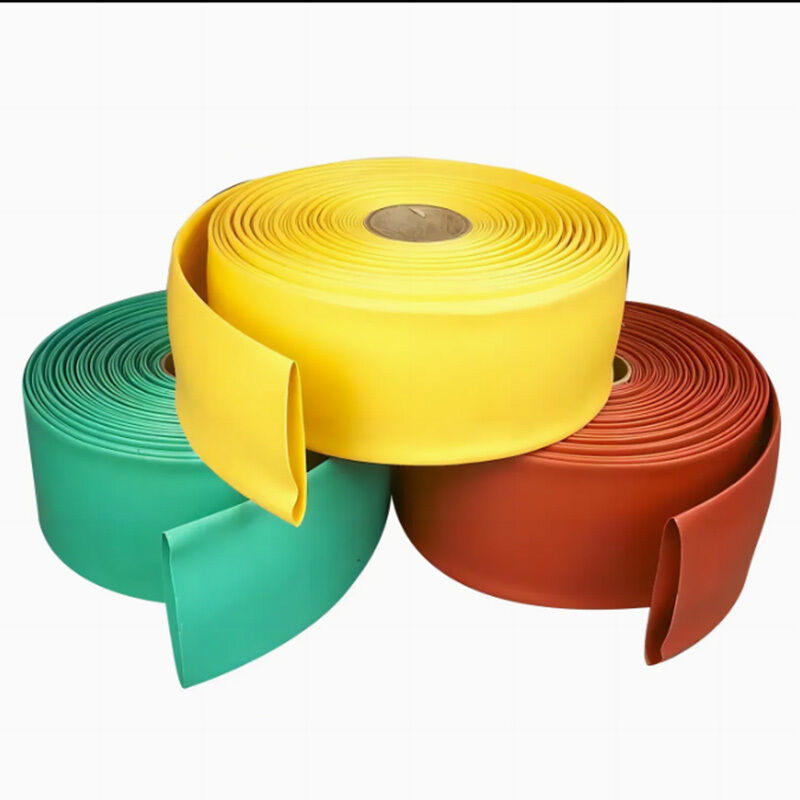

● Standard colors: Red(Other colors can be customized)

Property	Requirement	Test Standard
Tensile Strength (MPa)	≥8	IEC 60684
Elongation at Break (%)	≥400	IEC 60684
Aged Tensile Strength (MPa)	≥6.4	150℃×168h
Aged Elongation at Break (%)	≥200	150℃×168h
Thermal Shock	No cracking, no flow, no dripping	225℃×4h
Flame Retardancy	Pass	IEC 60684
Low‑temperature Flexibility	No cracking	-40℃×4h
Dielectric Strength (kV/mm)	≥20	IEC 60684
Volume Resistivity (Ω·cm)	≥1×10¹⁴	IEC 60684
Tracking Resistance (2.5kV,60min)	No burn‑in or cracking	IEC 60684

Product Dimensions

Series up to 25kV｜Dimension Table

Size	Applicable Busbar(Square/Round)	Supplied Dimension‑ID (mm)	Supplied Dimension‑Wall Thickness (mm)	Fully Shrunk‑ID (mm)	Fully Shrunk‑Wall Thickness (mm)	Standard Packaging (Meter/Roll)
XQ‑BTM15/6	15	16.0±2.0	1.10±0.40	≤6	1.90±0.30	25
XQ‑BTM 20/8	20	21.0±2.0	1.10±0.40	≤8	2.20±0.30	25
XQ‑BTM 25/10	25	26.0±2.0	1.10±0.40	≤10	2.20±0.30	25
XQ‑BTM 30/12	30	31.0±2.0	1.10±0.40	≤12	2.20±0.30	25
XQ‑BTM 40/16	40	41.0±2.0	1.10±0.40	≤16	2.35±0.40	25
XQ‑BTM 50/20	50	52.0±3.0	1.10±0.40	≤20	2.35±0.40	25
XQ‑BTM 60/24	60	62.0±3.0	1.10±0.40	≤24	2.35±0.40	25
XQ‑BTM 65/26	65	67.0±3.0	1.10±0.40	≤26	2.35±0.40	25
XQ‑BTM 75/30	75	77.0±3.0	1.10±0.40	≤30	2.35±0.40	25
XQ‑BTM 85/34	85	87.0±3.0	1.10±0.40	≤34	2.35±0.40	25
XQ‑BTM 00/40	100	102.0±4.0	1.10±0.40	≤40	2.35±0.40	25
XQ‑BTM120/50	120	122.0±4.0	1.20±0.40	≤50	2.80±0.40	25
XQ‑BTM150/60	150	152.0±4.0	1.20±0.40	≤60	2.80±0.40	25
XQ‑BTM175/70	180	180.0±5.0	1.20±0.40	≤70	2.80±0.40	25
XQ‑BTM205/100	210	210.0±5.0	1.20±0.40	≤110	2.80±0.40	20
XQ‑BTM230/130	230	230.0±5.0	1.20±0.40	≤130	3.10±0.40	20

Series up to 35kV

Size	Applicable Busbar(Square)	Supplied Dimension‑ID (mm)	Supplied Dimension‑Wall Thickness (mm)	Fully Shrunk‑ID (mm)	Fully Shrunk‑Wall Thickness (mm)	Standard Packaging (Meter/Roll)
XQ‑HTM30/12	30	31±2.0	1.60±0.50	12	4.0±0.4	15
XQ‑HTM35/14	30/40	36±2.0	1.60±0.50	14	4.0±0.4	15
XQ‑HTM40/16	40	41±2.0	1.60±0.50	16	4.0±0.4	15
XQ‑HTM50/20	50	52±3.0	1.60±0.50	20	4.0±0.4	15
XQ‑HTM60/24	60	62±3.0	1.60±0.50	24	4.0±0.4	15
XQ‑HTM65/26	60/70	67±3.0	1.60±0.50	26	4.0±0.4	15
XQ‑HTM70/28	70	72±3.0	1.60±0.50	28	4.0±0.4	15
XQ‑HTM75/30	70/80	77±3.0	1.60±0.50	30	4.0±0.4	15
XQ‑HTM80/32	80	82±4.0	1.60±0.50	32	4.0±0.4	15
XQ‑HTM100/40	100	102±4.0	1.60±0.50	40	4.0±0.4	15
XQ‑HTM120/48	120	122±4.0	1.60±0.50	48	4.0±0.4	15
XQ‑HTM150/60	150	152±4.0	1.60±0.50	60	4.0±0.4	15
XQ‑HTM180/72	180	180±5.0	1.60±0.50	72	4.0±0.4	15

Remarks: Custom sizes and colors are available upon customer request.
