Place of Origin:
shenzhen, Guangdong, China
Brand Name:
XingQi
Certification:
RoHS 2.0

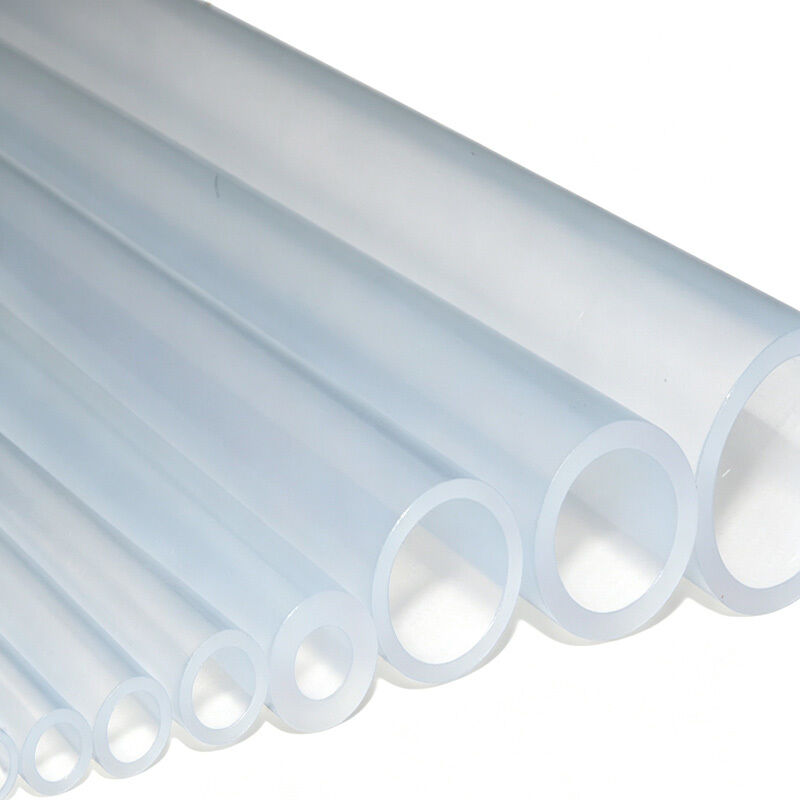

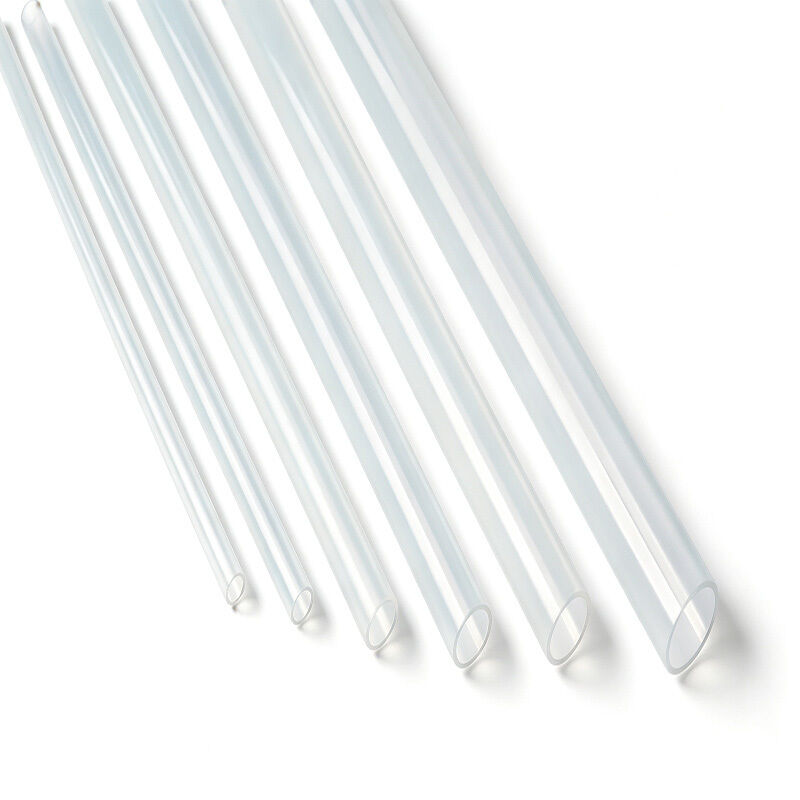

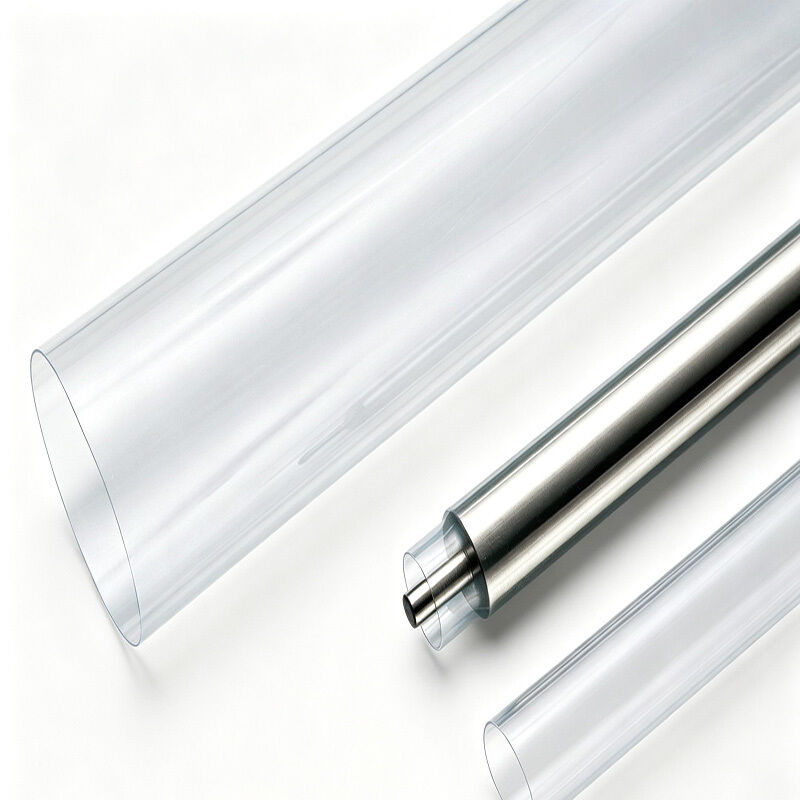

FEP (Fluorinated Ethylene‑Propylene, F46) Tubing is made of virgin fluoroplastic material with high transparency.
It features continuous temperature resistance from -200℃ to 200℃, excellent electrical insulation, great resistance to strong acids, alkalis and organic solvents, and UL94 V‑0 flame retardancy.
Anti‑aging and low‑friction non‑stick, it complies with RoHS & REACH. Available in heat‑shrink and extruded straight types with custom sizes & colors, widely used for wiring harnesses,
chemical fluid and semiconductor equipment protection.
| model | Inside Diameter (mm) | Inner Diameter Tolerance (mm) | Wall Thickness (Adjustable)(mm) | Packing (m) | Inside Diameter (mm) | Inner Diameter Tolerance (mm) | Wall Thickness (Adjustable)(mm) | Packing (m) |
| 1 | 0.50 | 0.50±0.10 | 0.05~2.00 | m/pcs/roll | 11.0 | 11.0±0.50 | 0.50~5.0 | m/pcs/roll |
| 2 | 1.00 | 1.00±0.10 | 0.05~2.00 | m/pcs/roll | 12.0 | 12.0±0.50 | 0.50~5.0 | m/pcs/roll |
| 3 | 1.35 | 1.35±0.10 | 0.08~2.00 | m/pcs/roll | 13.0 | 13.0±1.00 | 0.50~5.0 | m/pcs/roll |
| 4 | 1.50 | 1.50±0.10 | 0.08~2.00 | m/pcs/roll | 14.0 | 14.0±1.00 | 0.50~5.0 | m/pcs/roll |
| .5 | 1.60 | 1.60±0.20 | 0.08~2.00 | m/pcs/roll | 15.0 | 15.0±1.00 | 0.50~5.0 | m/pcs/roll |
| 6 | 1.70 | 1.70±0.20 | 0.08~2.00 | m/pcs/roll | 16.0 | 16.0±1.00 | 0.50~5.0 | m/pcs/roll |
| 7 | 2.00 | 2.00±0.20 | 0.10~3.00 | m/pcs/roll | 18.0 | 18.0±1.00 | 0.50~5.0 | m/pcs/roll |
| 8 | 2.30 | 2.30±0.20 | 0.10~3.00 | m/pcs/roll | 20.0 | 20.0±2.00 | 1.0~5.0 | m/pcs/roll |
| 9 | 2.40 | 2.40±0.20 | 0.10~3.00 | m/pcs/roll | 25.0 | 25.0±2.00 | 1.0~5.0 | m/pcs |
| 10 | 2.50 | 2.50±0.20 | 0.10~3.00 | m/pcs/roll | 30.0 | 30.0±3.00 | 1.0~6.0 | m/pcs |
| 11 | 3.00 | 3.00±0.20 | 0.10~3.00 | m/pcs/roll | 40.0 | 40.0±3.00 | 1.0~6.0 | m/pcs |
| 12 | 3.50 | 3.50±0.20 | 0.10~3.00 | m/pcs/roll | 452 | 45.0±3.00 | 1.0~6.0 | m/pcs |
| 13 | 4.00 | 4.00±0.20 | 0.10~3.00 | m/pcs/roll | 50.0 | 50.0±3.00 | 1.0~6.0 | m/pcs |
| 14 | 4.50 | 4.50±0.20 | 0.15~3.00 | m/pcs/roll | 60.0 | 60.0±5.00 | 1.5~8.0 | m/pcs |
| 15 | 5.0 | 5.00±0.20 | 0.15~4.00 | m/pcs/roll | 70.0 | 70.0±5.00 | 1.5~8.0 | m/pcs |
| 16 | 5.50 | 5.5±0.20 | 0.20~4.00 | m/pcs/roll | 80.0 | 80.0±5.00 | 1.5~8.0 | m/pcs |
| 17 | 6.00 | 6.0±0.30 | 0.20~4.00 | m/pcs/roll | 90.0 | 90.0±5.00 | 2.0~10.0 | m/pcs |
| 18 | 6.50 | 6.5±0.50 | 0.20~4.00 | m/pcs/roll | 100.0 | 100.0±5.00 | 2.0~10.0 | m/pcs |
| 19 | 7.0 | 7.00±0.50 | 0.20~4.00 | m/pcs/roll | 120.0 | 120.0±5.00 | 2.0~15.0 | m/pcs |
| 20 | 8.0 | 8.0±0.50 | 0.20~4.00 | m/pcs/roll | 150.0 | 150.0±5.00 | 2.0~10.01 | m/pcs |
| 21 | 9.0 | 9.00±0.50 | 0,50~4.00 | m/pcs/roll | 250.0 | 200.0±10.0 | 3.0±15.0 | m/pcs |
| 22 | 10.0 | 10.0±0.50 | 0.50~4.00 | m/pcs/roll | 300.0 | 300.0±10.0 | 3.0±15.0 | m/pcs |
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
polski
فارسی
বাংলা
ไทย
tiếng Việt
العربية
हिन्दी
Türkçe
indonesia
Above are metric standard dimensions. Custom specifications are available upon customers' requirements.
Remarks: Custom sizes and colors are available upon customer request.
